Bushing Final Drive Rear

Bushing final drive rear

Note! Some variation in the illustrations may occur, but the essential information is always correct.








Removal

Note! Removal steps in this procedure may contain installation details.




Remove the spare wheel (applies to specific designs).
Loosen the screws for the rear cross member (2 x A) about 10 mm.
Unhook the 3 rear rubber mountings so that the exhaust system rests on the rear cross member.





Remove the following items:
- the cover from the sub-frame, loosen the reservoir and brackets from the cover if necessary.
- the 3 screws for the final drive.




Use 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder together with 951 2566 Hydraulic pump 951 2566 Hydraulic Pump

Note! When using 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder it may be necessary to regrip on account of the cylinder's restricted stroke length, (release the cylinder and screw the nut in on the puller rod).

999 7095 Socket 999 7095 Socket , 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12 , 999 7132 Nut M12 999 7132 Nut M12 , 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder , 999 7034 Connecting rod M12X400 999 7034 Connecting Rod M12X400 , 999 7096 Ring 999 7096 Ring , 999 7330 Drift 999 7330 Drift




Push forward the final drive slightly, to create space at the front of the bushing.

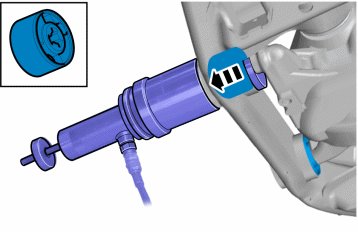

Position the tools as illustrated.
Check that the threaded rod goes through the front punch completely, so that a full thread is obtained.
Centre the tools against the bushing and sub-frame and tighten the nut on the puller rod.
Press out the bushing.

Installation





Note! When using 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder it may be necessary to regrip on account of the cylinder's restricted stroke length, (release the cylinder and screw the nut in on the puller rod).

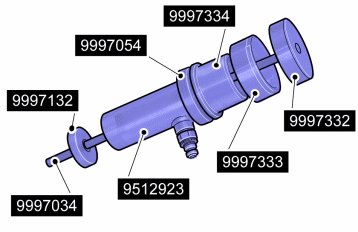

999 7334 Drift 999 7334 Drift , 999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12 , 999 7132 Nut M12 999 7132 Nut M12 , 999 7332 Drift 999 7332 Drift , 999 7333 Cone 999 7333 Cone , 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder , 999 7034 Connecting rod M12X400 999 7034 Connecting Rod M12X400




Push forward the final drive slightly, to create space at the front of the bushing.

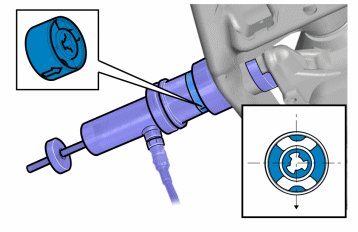

Mark up the bushing with a line as illustrated, it is extremely important that the bushing is install in the right position.
Place the bushing and tool as illustrated
Exercise care to centre the tool, tighten the nut on the puller rod and press in the bushing.
Check that the threaded rod goes through the front punch completely, so that a full thread is obtained.
Centre the tools against the bushing and sub-frame and tighten the nut on the puller rod.

Note! The marking on the bushing should face downward.

The bushing is in the correct position when the flange on 999 7334 Drift 999 7334 Drift rests on 999 7333 Cone 999 7333 Cone when the tool is pressed together.





Install the following items:
- the final drive with the 3 x M12 screws, first tighten so that the final drive lies against the two rear bushings before the screws are tightened fully.
- the cover for the sub-frame. Tighten according to: Tightening torque [1][2]Specifications
- any brackets and the reservoir to the cover
- rubber mountings
- rear cross member. Tighten according to: Tightening torque [1][2]Specifications
- the spare wheel (applies to specific designs).
