Changes Introduced Up to and Including June 2009

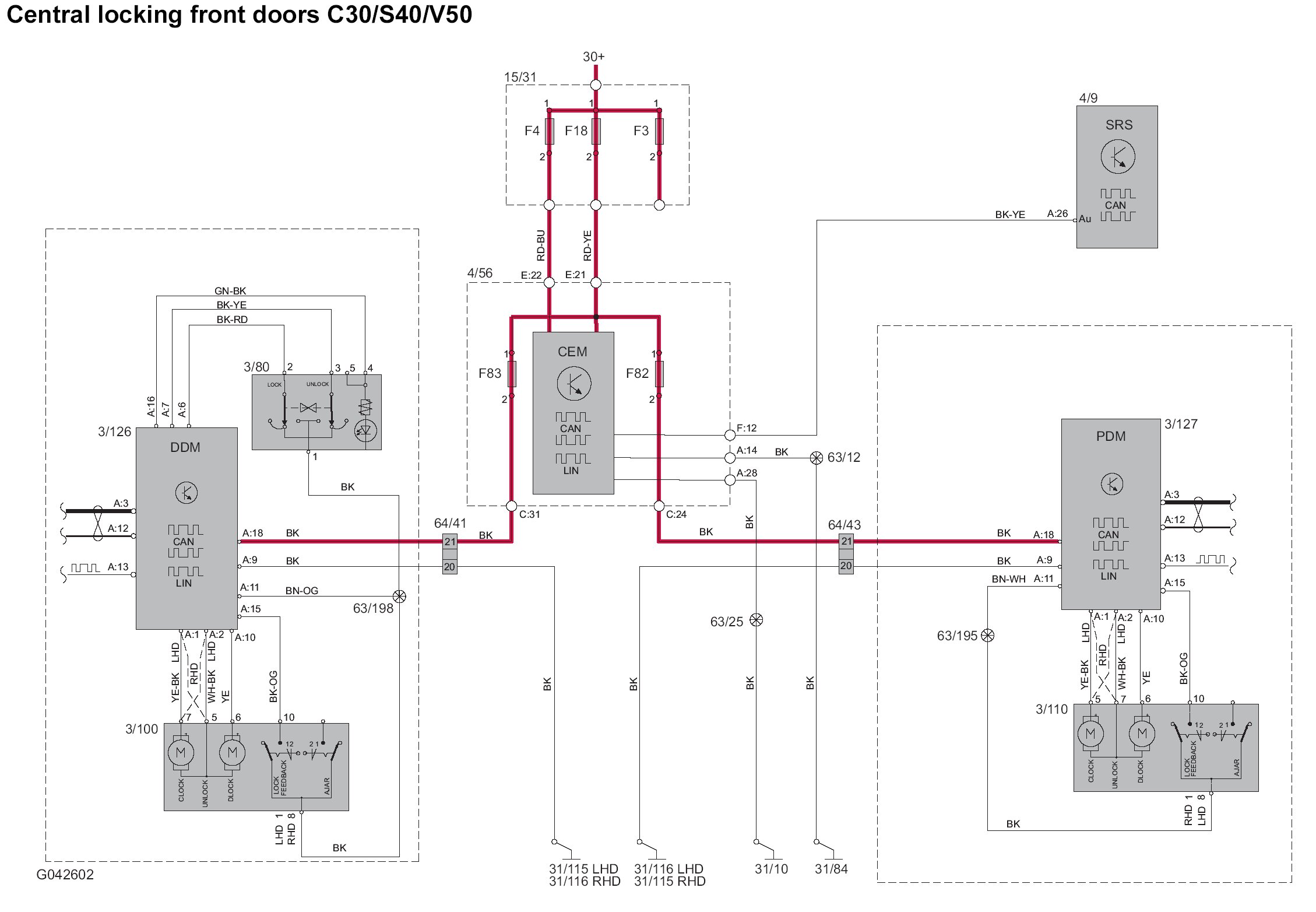

Central Locking Front Doors C30/S40/V50


Central locking front doors:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
