Changes Introduced Up to and Including June 2009

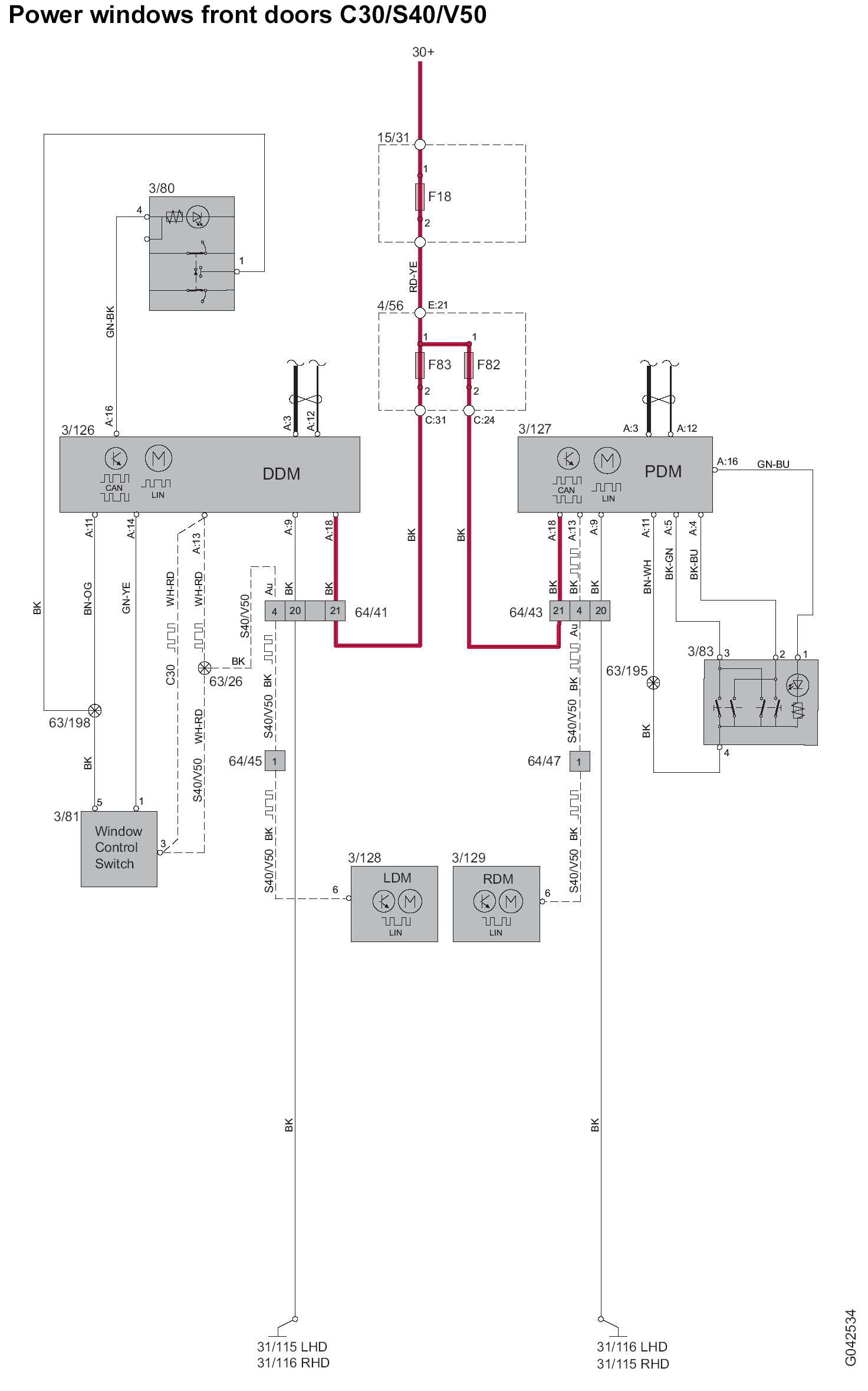

Power Windows Front Doors C30/S40/V50


Power windows front doors:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Numbers: List of Components By Component Numbers
