Fog Lamps

Fog lamps, chassis number 190000-























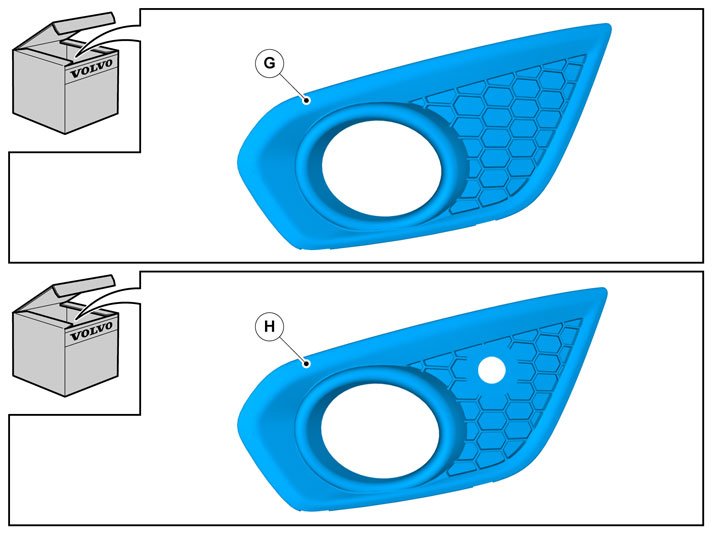

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Fog lamps, chassis number 190000-






















- Reinstall the detached components in reverse order.





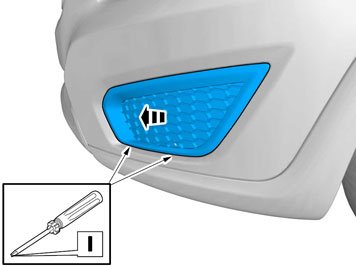

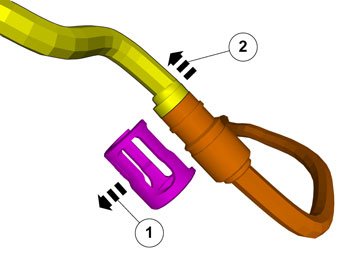

Applies to flexi-fuel cars





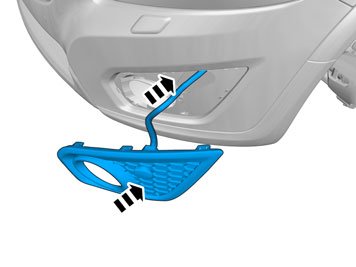

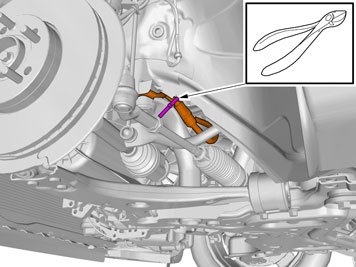

Applies to flexi-fuel cars





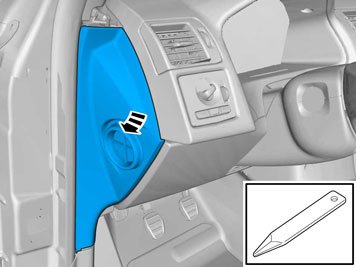

Applies to flexi-fuel cars





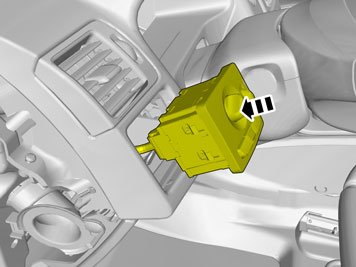

Applies to flexi-fuel cars





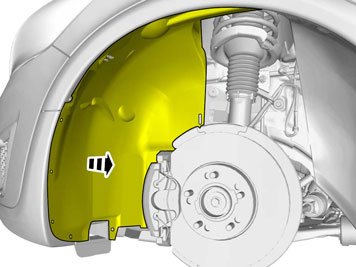

Applies to flexi-fuel cars





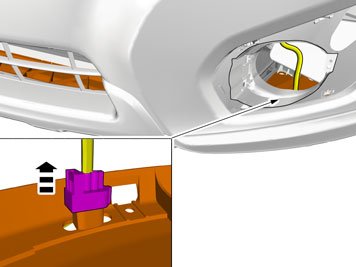

Applies to flexi-fuel cars





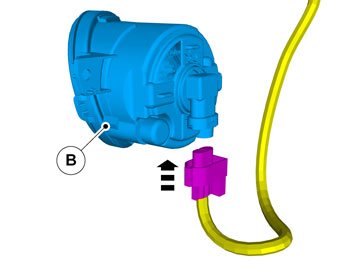

Applies to flexi-fuel cars





Applies to flexi-fuel cars










Applies to flexi-fuel cars


















- Repeat the method steps for the other side.





- Download the software (application) for the accessory's function following the service information in VIDA.
See VIDA or the accessories catalogue for software part number.

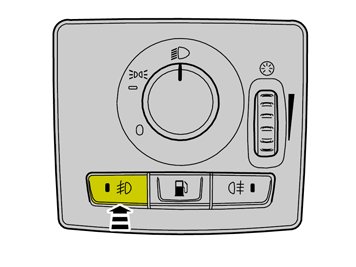

- Switch on the fog lamp and check its setting.






In the event of adjustment:

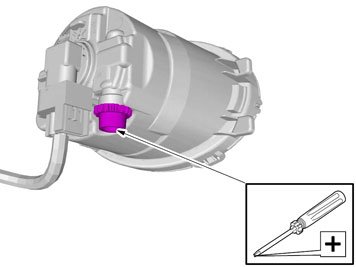

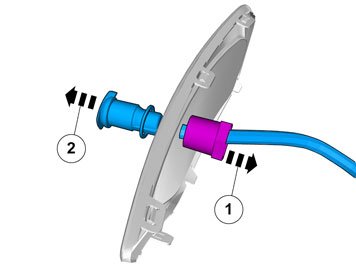

- Remove the fog lamp and adjust the adjustment screw.





- Carry out on both sides.





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars





Applies to flexi-fuel cars
- Reinstall the detached components in reverse order.

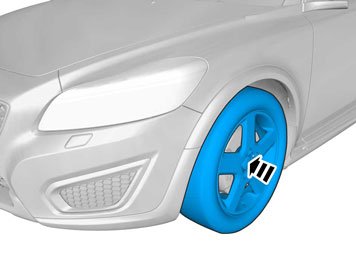

- Tightening torque:
- Step 1: Wheel to wheel hub, 20 Nm
- Step 2: Wheel to wheel hub, 110 Nm
