Suspension - Clunking Noise From Rear Of Vehicle

Title: Rear anti-roll (sway) bar, clunking noise due to loose fasteners

Ref No US18669.8.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 7622 Func Desc anti-roll bar, rear

Status Released

Status Date 2011-02-11

Issue Date 2011-02-08

Reference

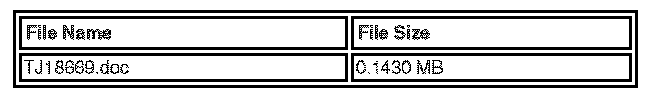

Attachment





Vehicle Type

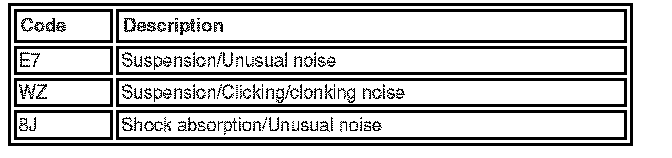

CSC

DTC

Text
DTC = Diagnostic Trouble Code
CSC Customer Symptom Code

If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

DESCRIPTION:

Knocking noise while driving on uneven road surfaces may be caused be loose rear anti-roll bar fasteners in the above listed vehicles.

SERVICE:

The bolts holding the anti-roll bar to the sub-frame should be tightened 60 Nm (45 Ft/lbs).

The nuts on the anti-roll bar links should be tightened to 75Nm (55 Ft/lbs).

For C30 R-design, see also TJ 23180.

VSTG OPERATION NUMBER:
99400-2 General check/adjust acc to Technical Journal Time allowance: 0.1 hours

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.

Attachment





TJ Instructions
