Suspension - Rear End Noise On Bumps
TIE - Technical JournalTitle
Rear anti-roll (sway) bar bushings, noise
Ref No US23180.1.1 en-GB
Partner 3 US 7510 Volvo Cars North America
Reference VIDA, VSTG
Attachment

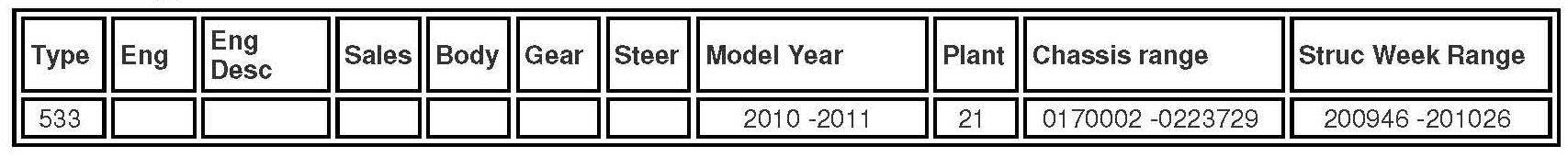

Vehicle Type

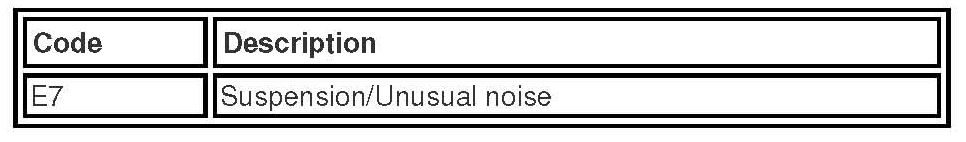

CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
There may be a noise from the rear suspension when driving over bumps or when turning. Noise description : clunk / cracking / knocking / thumping / popping.
NOTE!
This TJ only applies to C30 vehicles with sport chassis and 22mm rear anti-roll bar (see VEHICLE DETAILS in VIDA).
PRODUCT MODIFICATION:
The rear anti-roll bar bushings have been replaced with bigger bushings P/N 30736723 from structure week 201 0W26 (see chassis ranges above).
SERVICE:
If the noise is confirmed to be coming from the rear anti-roll bar bushings replace the rear anti-roll bar bushings with P/N 30736723. Use the existing replacement method in VIDA.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 98252-2 - Bushings anti-roll bar rear replace acc. to TJ23180 - 0.3 hrs
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
