C70 T5 L5-2.5L Turbo VIN 67 B5254T7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
64/708
64/708
64/708 C70

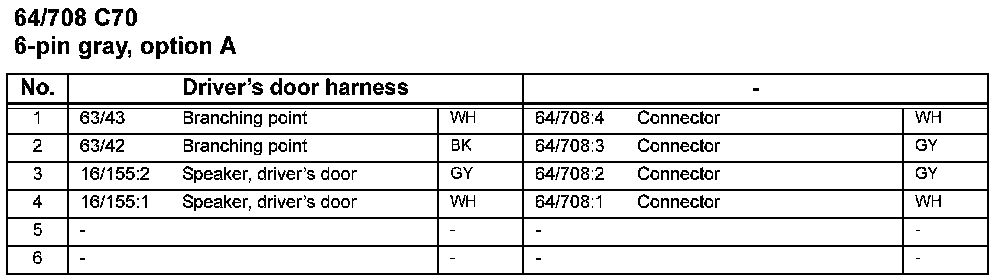

6-pin gray, option A

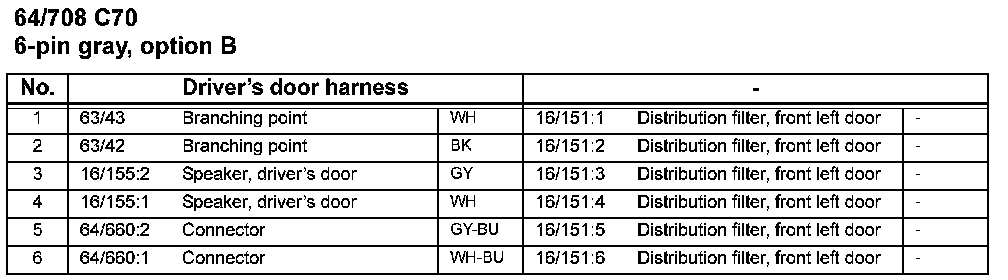

6-pin gray, option B
