Camshaft Gear/Sprocket

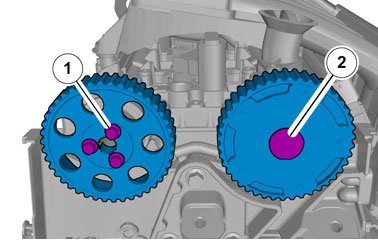

Camshaft Sprocket Bolts





First pass Finger tight
(1) M6 bolts 10 Nm
(2) VVT unit center bolt 120 Nm
