Body and Frame: Description and Operation

Design

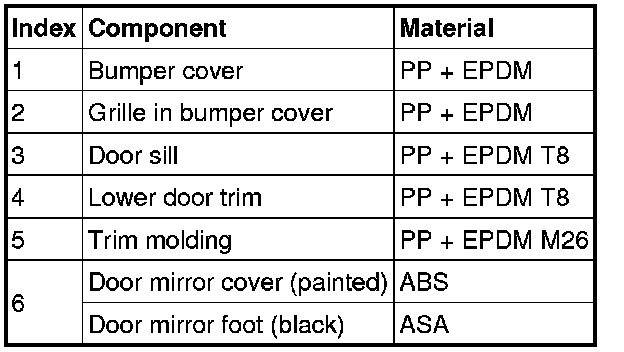

Plastic, material information

S40 (04-) and V50










S40 (04-)










V50

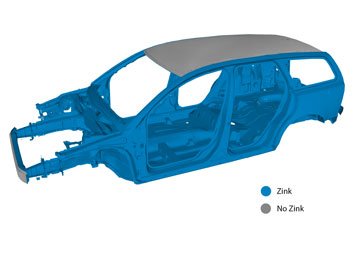

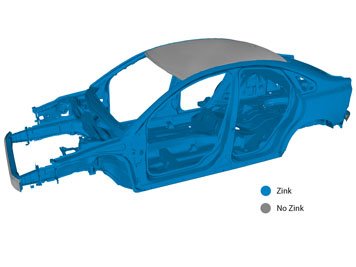

Sheet metal, material information

S40 (04-)









V50









S40 (04-)





V50





HSS steel

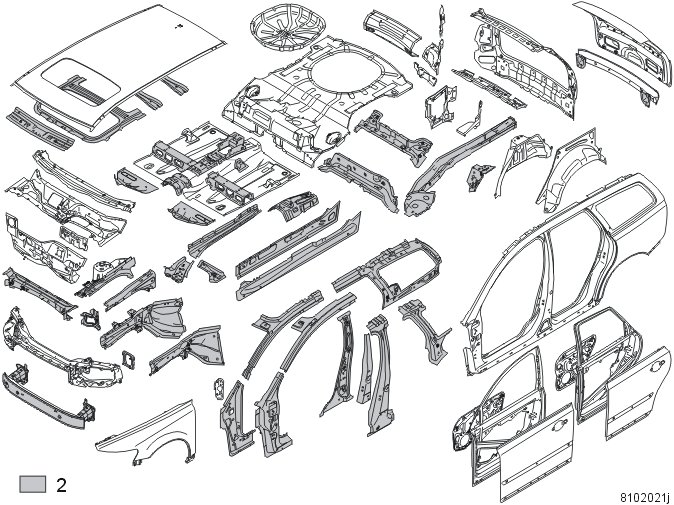

In the above illustrations, all components made of HSS steel are indicated by a darker color (2).
The bodywork is made up of a number of different steel materials. This is to optimize collision safety, stiffness, fuel economy, etc.
The steel types described in this section are HSS steel (HSS = High Strength Steel). These have a yield point of approximately 250 N/mm2. The yield and breaking points are higher than with normal steel plate.
The yield point increases when the material is heat treated. HSS steel can therefore be more difficult to align than ordinary steel plate.
When using an alignment bench, HSS components can cause problems if the counterhold is not correctly placed so that puller has maximum effect. Note how the bodywork reacts to tension and ensure that only the deformed area moves.
Always follow the welding procedures shown in VIDA.

Note! HSS-steel must not be heat aligned.

S40 (04-) and V50





Boron steel
Boron steel comes under the HSS steel group.
The dark gray sections (3) in the illustration are made of boron steel. Boron steel has a very high yield and breaking point. The yield point is approximately 1350 N/mm2 and particular attention must therefore be paid to boron steel during repair work.
When replacing boron steel components, it is not possible to drill off spot welds. Grinding or plasma cutting must be used instead.
Boron steel offers good welding capacity.
When producing boron steel, it is not possible to galvanize the steel. These components must therefore be rust-proofed particularly carefully.
Boron steel gets its strength through the addition of the element boron. Boron steel also contains a relatively large proportion of carbon. The sheet profiles are formed between a press and pad while the metal is red hot. The material also cures here.

Note! Boron steel must not be bent or heated.

Note! Boron steel may only be joined where indicated in the method. Mark carefully using a template. Use a cutting disc or plasma cutter.
