Cylinder Head Assembly: Specifications

Cylinder Head Bolts





Install new bolts
First pass 40 Nm
Final pass Tighten 90°

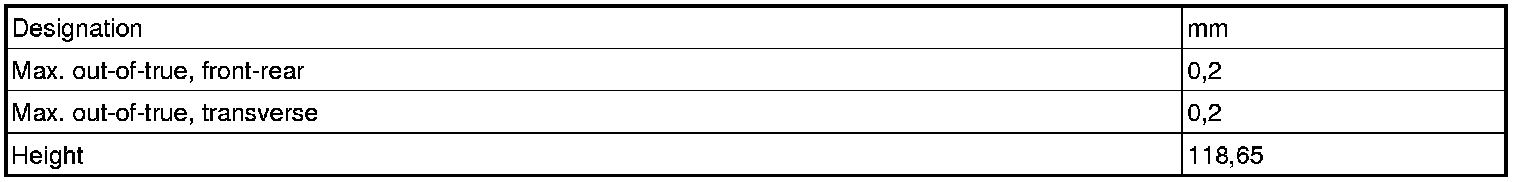

Cylinder Head





Valve Cover M6 Fasteners 10 Nm









Intake Manifold Fasteners Specifications

Exhaust Manifold Fasteners Specifications
