Drive Belt: Service and Repair

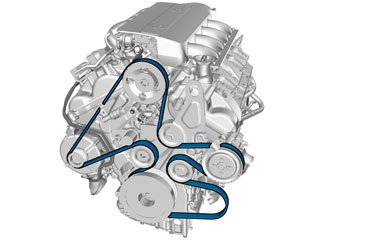

Accessory Drive Belt

Operation number: 21581-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the upper torque rod Refer to: Upper torque rod, B6324S4, B6324S5, B6304T4 Upper Torque Rod

Torque: M10, 50 Nm

Torque: M6, 10 Nm

Torque: M8, 24 Nm

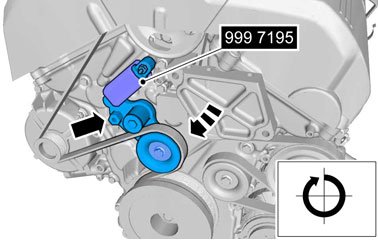

Caution! Make sure not to exceed 230 Nm when releasing the belt tensioner.

999 7195 Holder 999 7195 Holder

Installation

To install, reverse the removal procedure.
