Fuel Door
Central Locking Fuel Filler Flap

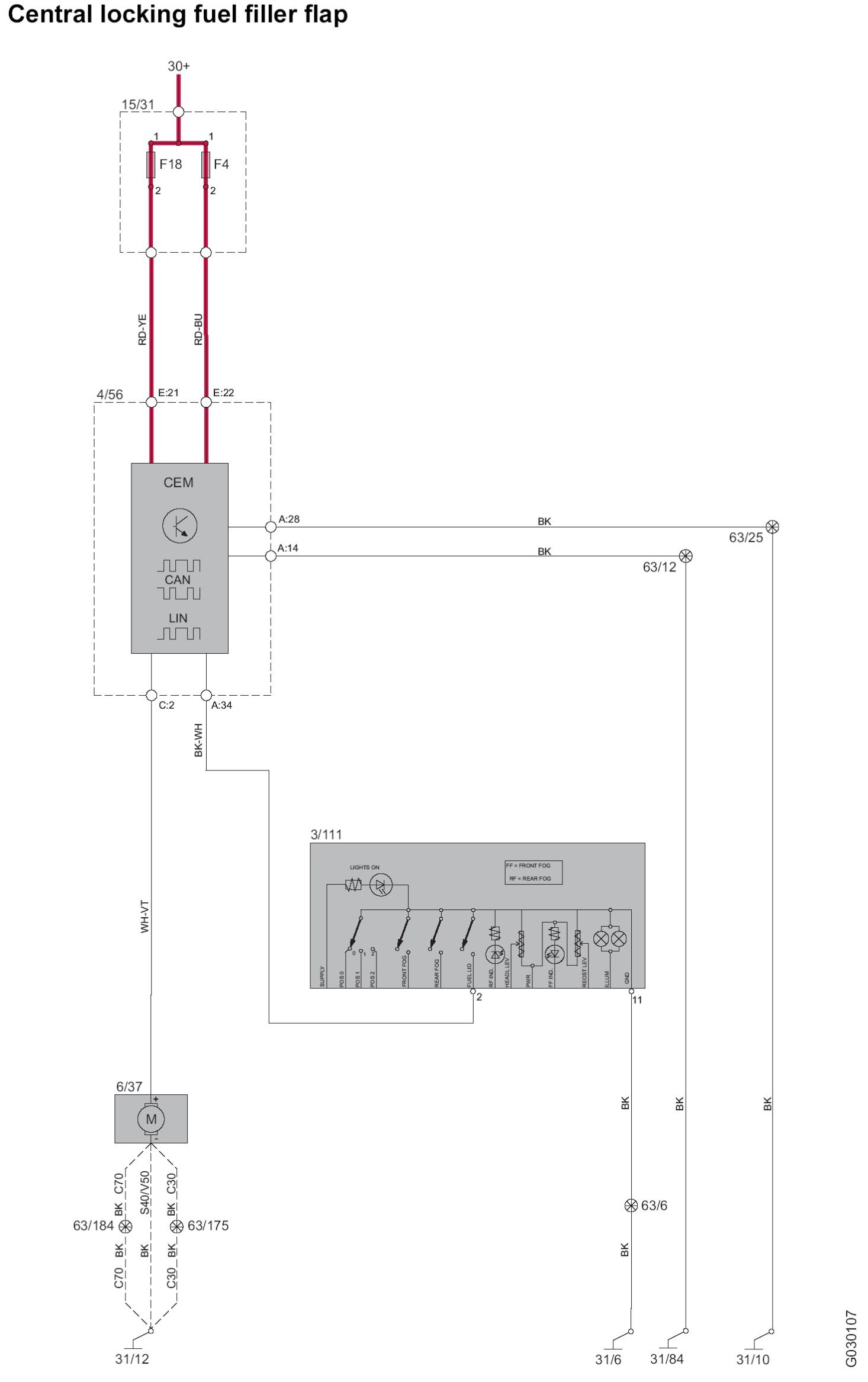

Central locking fuel filler flap:
Diagram Legend: Diagram Legend
Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
List of Components By Component Numbers: List of Components By Component Numbers
