Sunroof / Moonroof

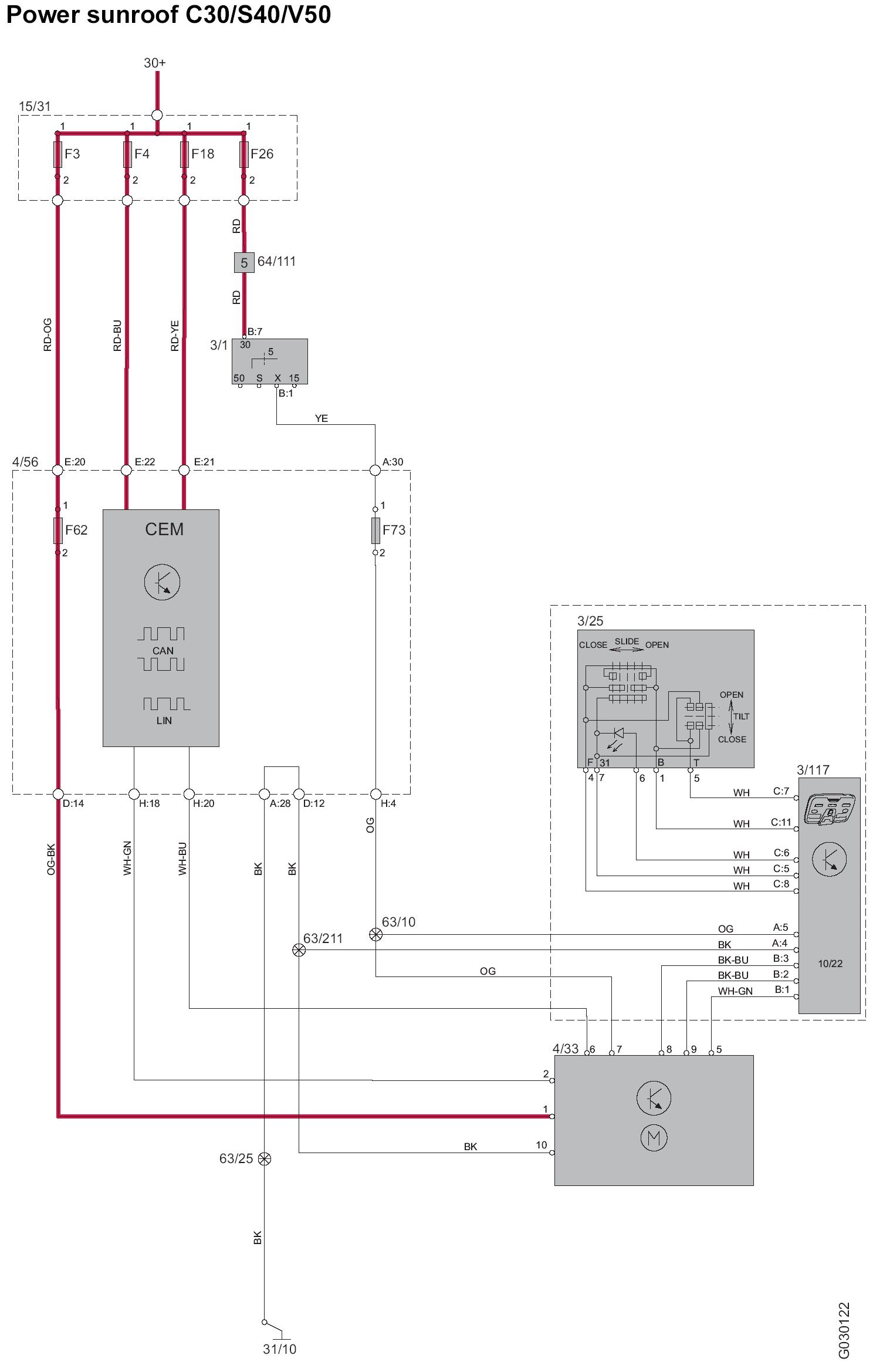

Power Sunroof C30/S40/V50
Power sunroof:
Diagram Legend: Diagram Legend
Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
List of Components By Component Numbers: List of Components By Component Numbers
