Instrument Cluster / Carrier: Service and Repair

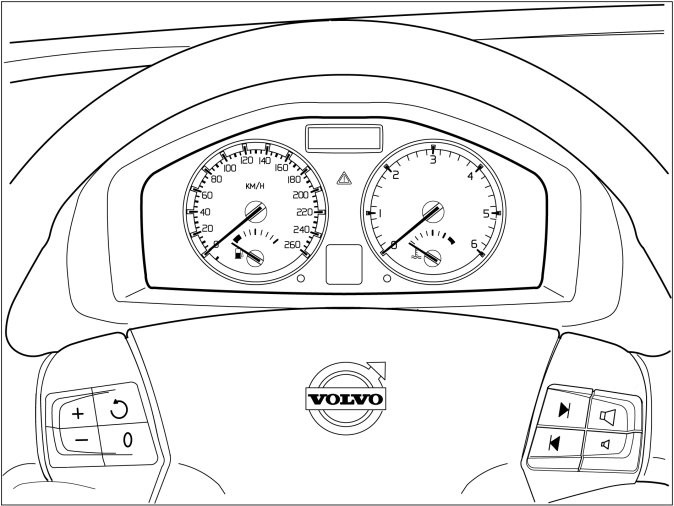

Combined instrument panel, R-design

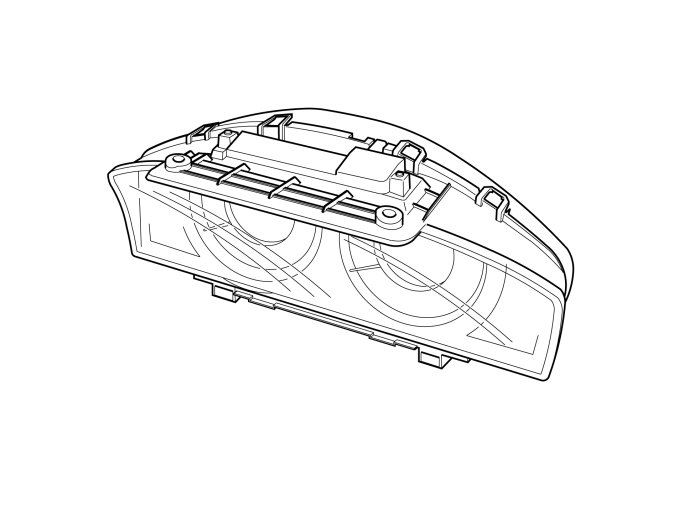

Combined instrument panel, R-design





- Turn the ignition switch to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.





- Adjust the steering wheel to the outermost and lowermost position.

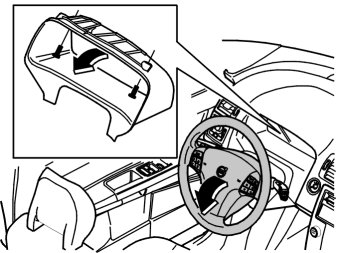

- Remove the two screws at the upper edge of the surround for the combined instrument panel.

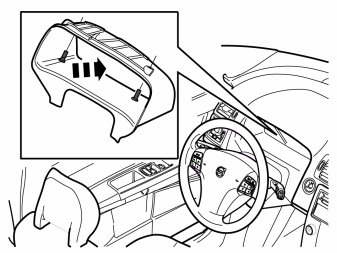

- Remove the surround.

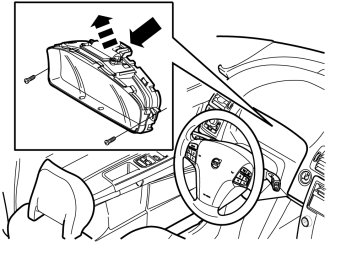

- Remove the two screws at the sides of the instrument panel.

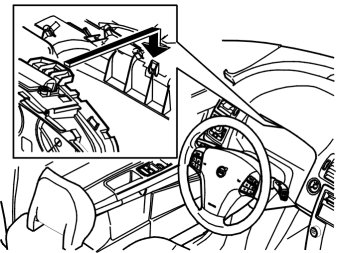

- Raise it slightly and unhook it from the holder on the inside of the instrument panel.
- Lift the instrument panel out and disconnect the connector.

Note! Do not damage the instrument panel. The glass is easily scratched.

- Place the instrument panel to one side.





- Take the new instrument panel and connect the connector.
- Insert it in position and hook it onto the holder on the inside.
- Tighten using the two screws.










- Download software for the relevant vehicle type.
