Changes Introduced Up to April 2009 Inclusive

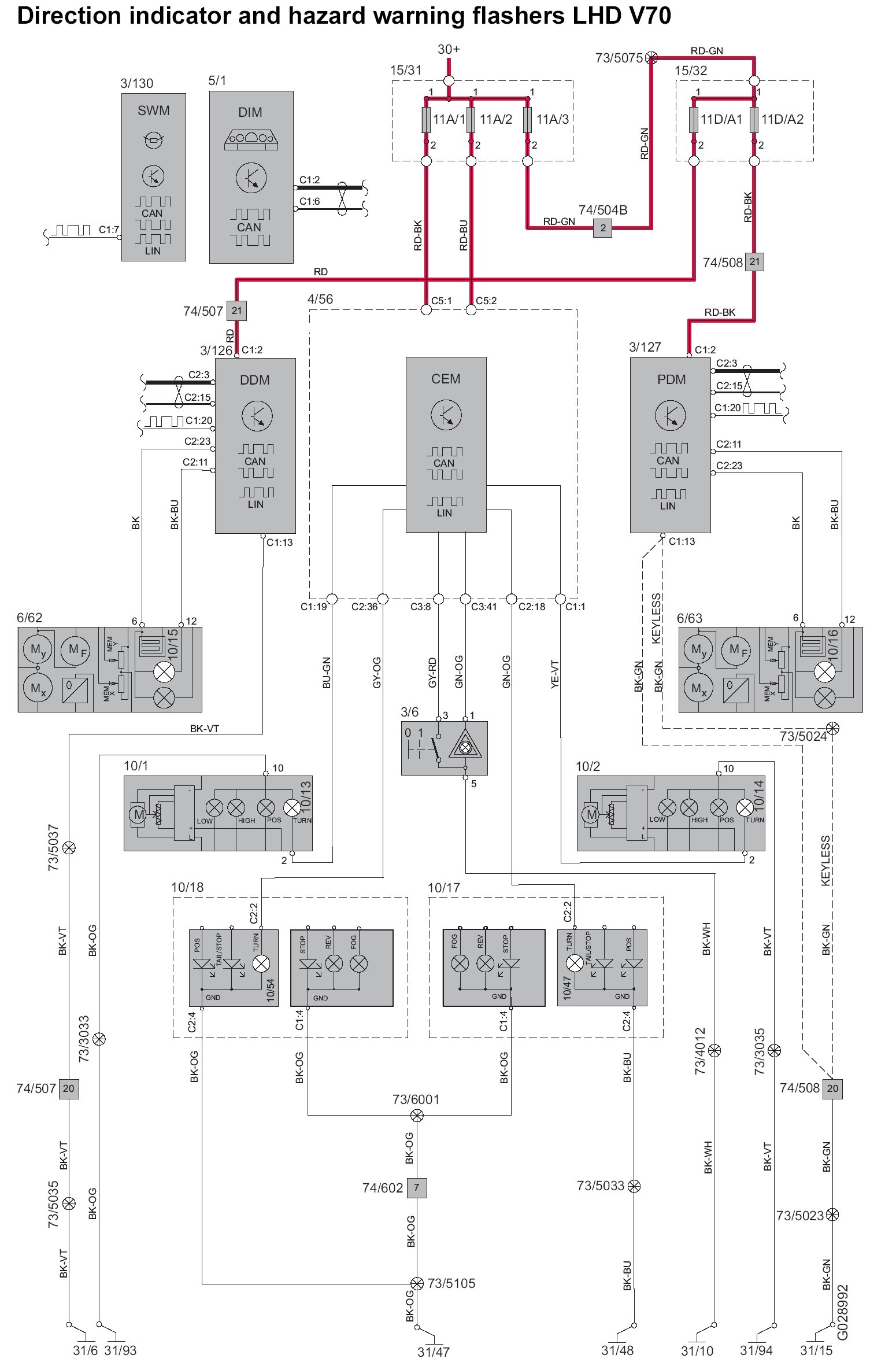

Direction Indicator And Hazard Warning Flashers LHD V70

Direction Indicator And Hazard Warning Flashers LHD:

Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: [1][2]Changes Introduced Up to April 2009 Inclusive

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
