Harness Locations

Cable Harness Routine In Vehicle

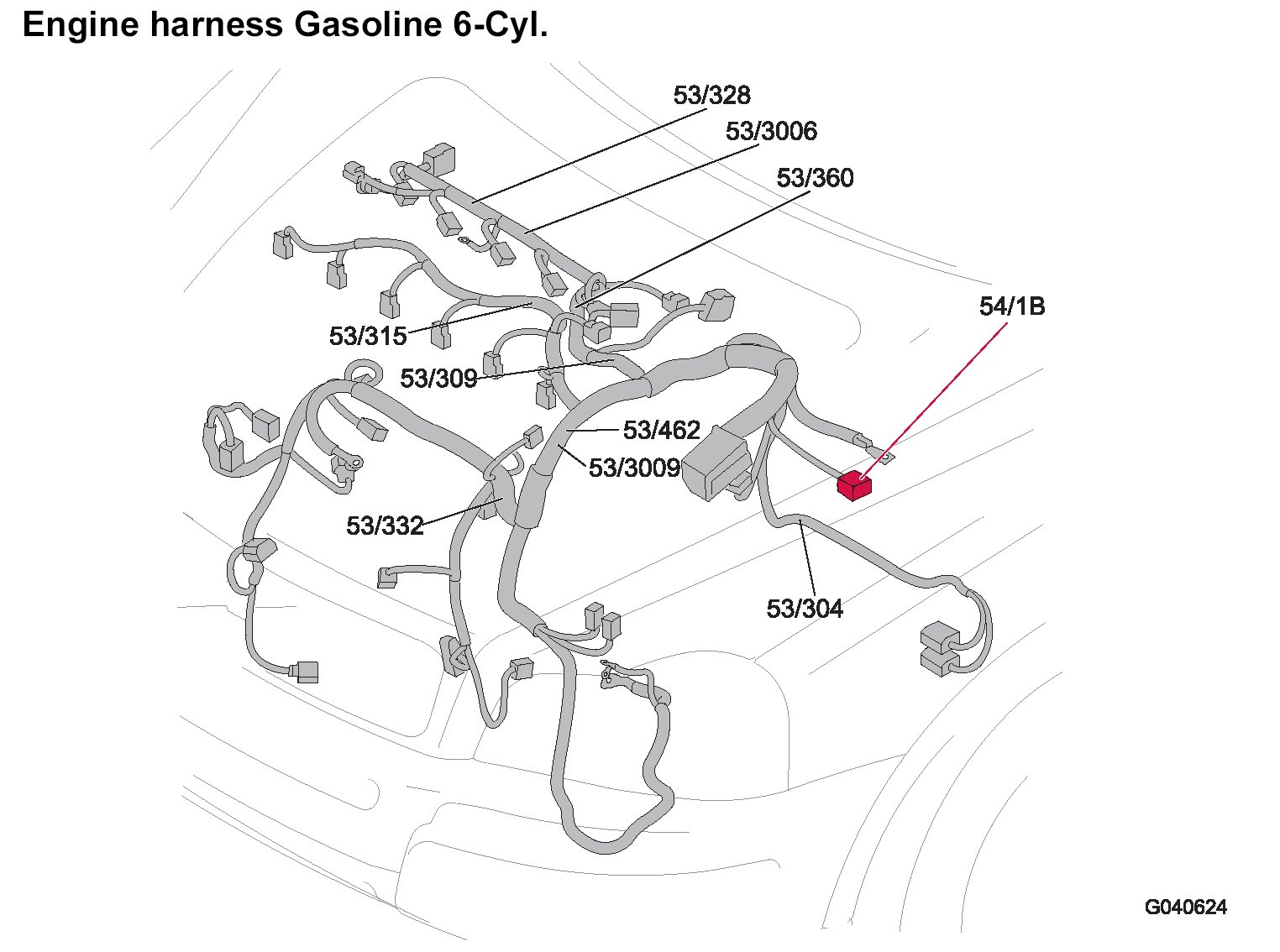

Engine Harness:

Engine Harness:

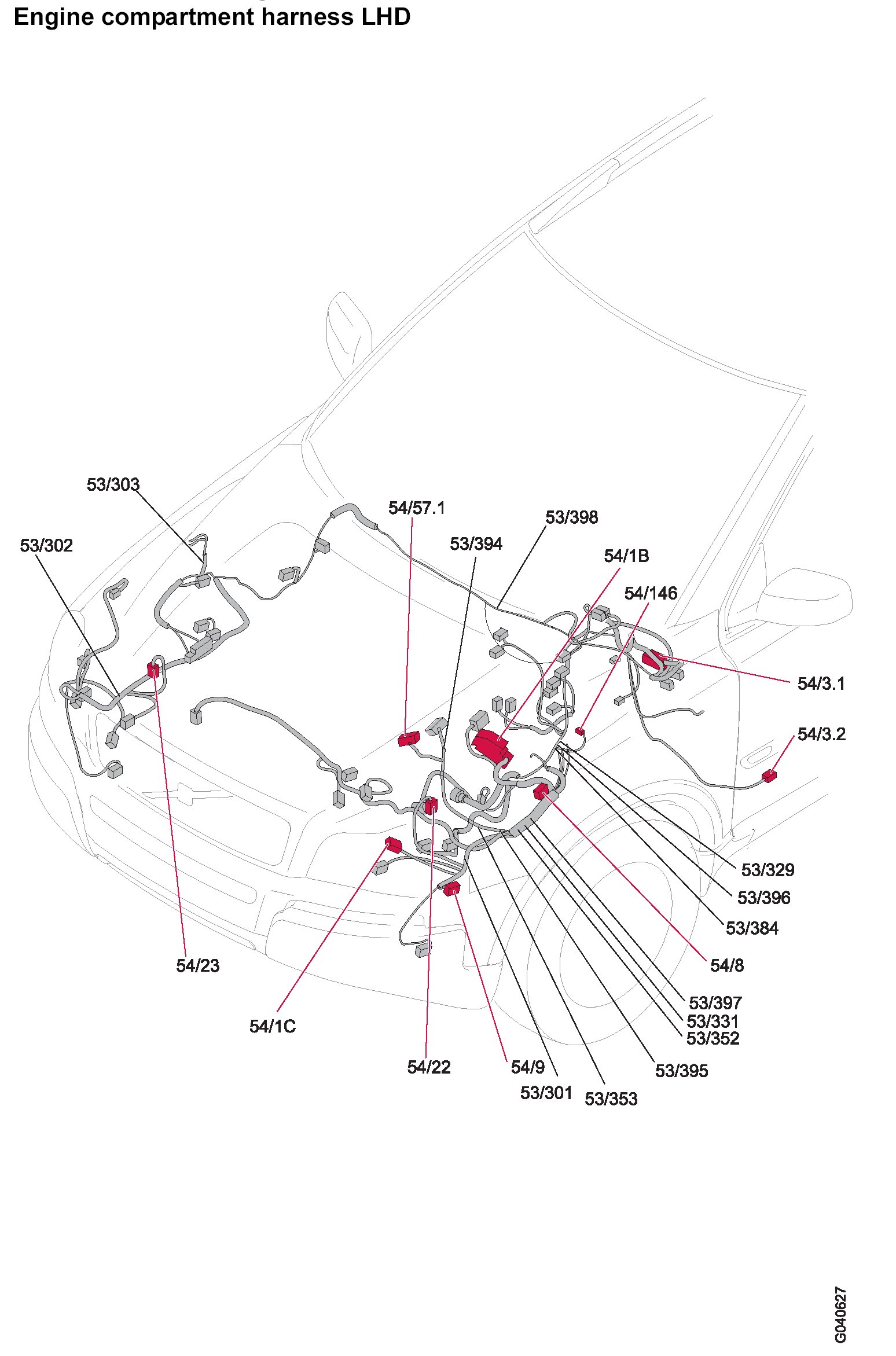

Engine Compartment Harness LHD:

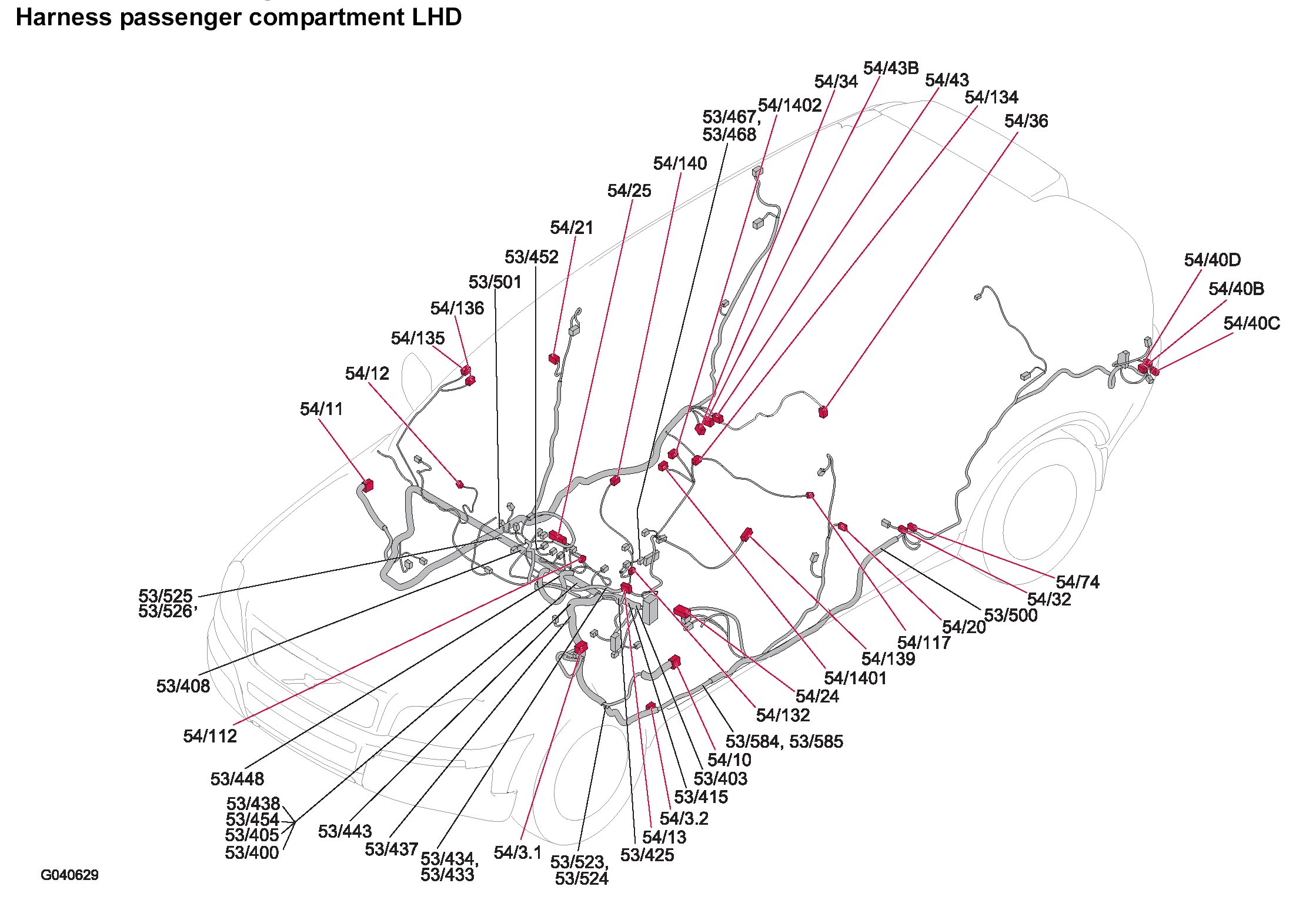

Harness Passenger Compartment LHD:

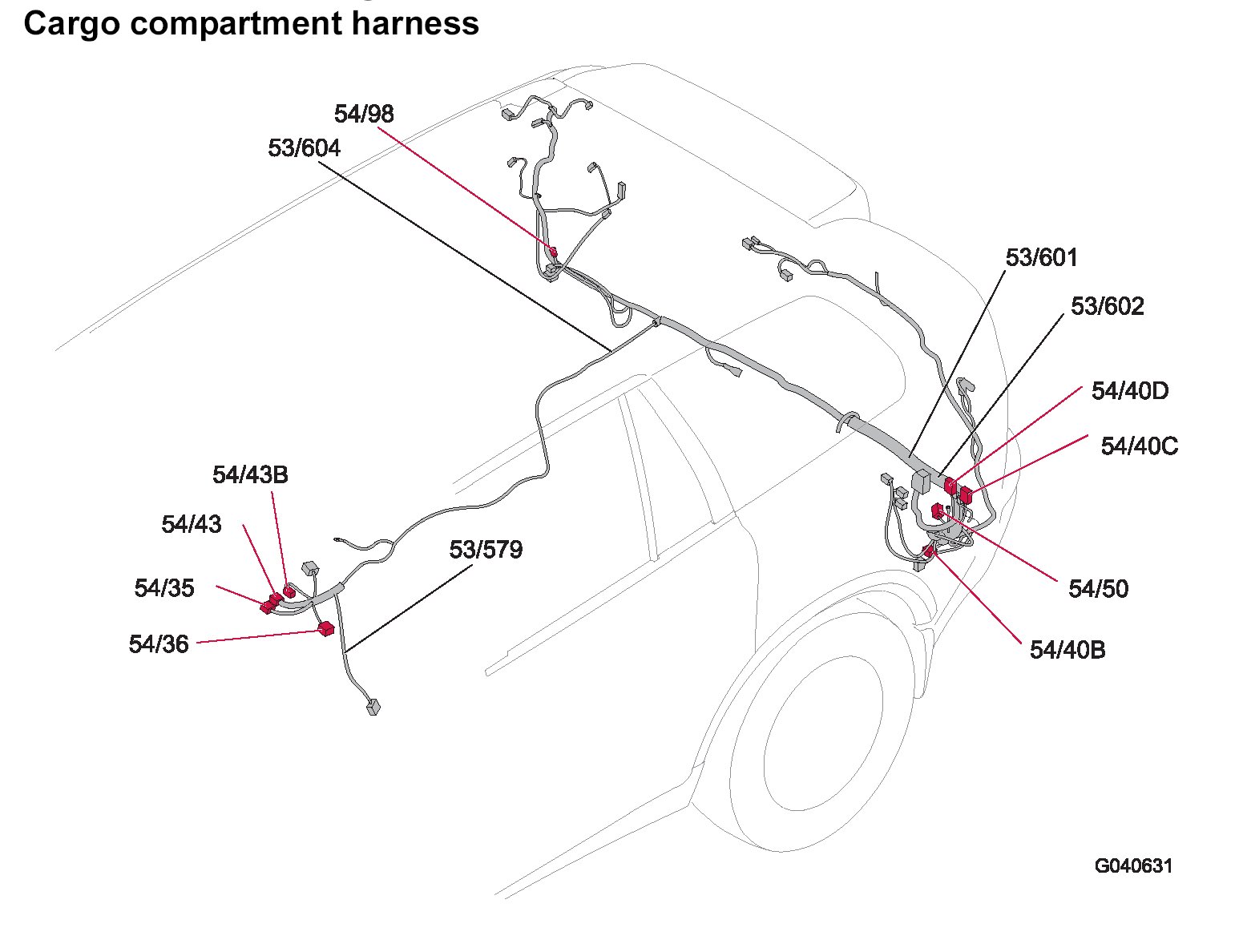

Cargo Compartment Harness:

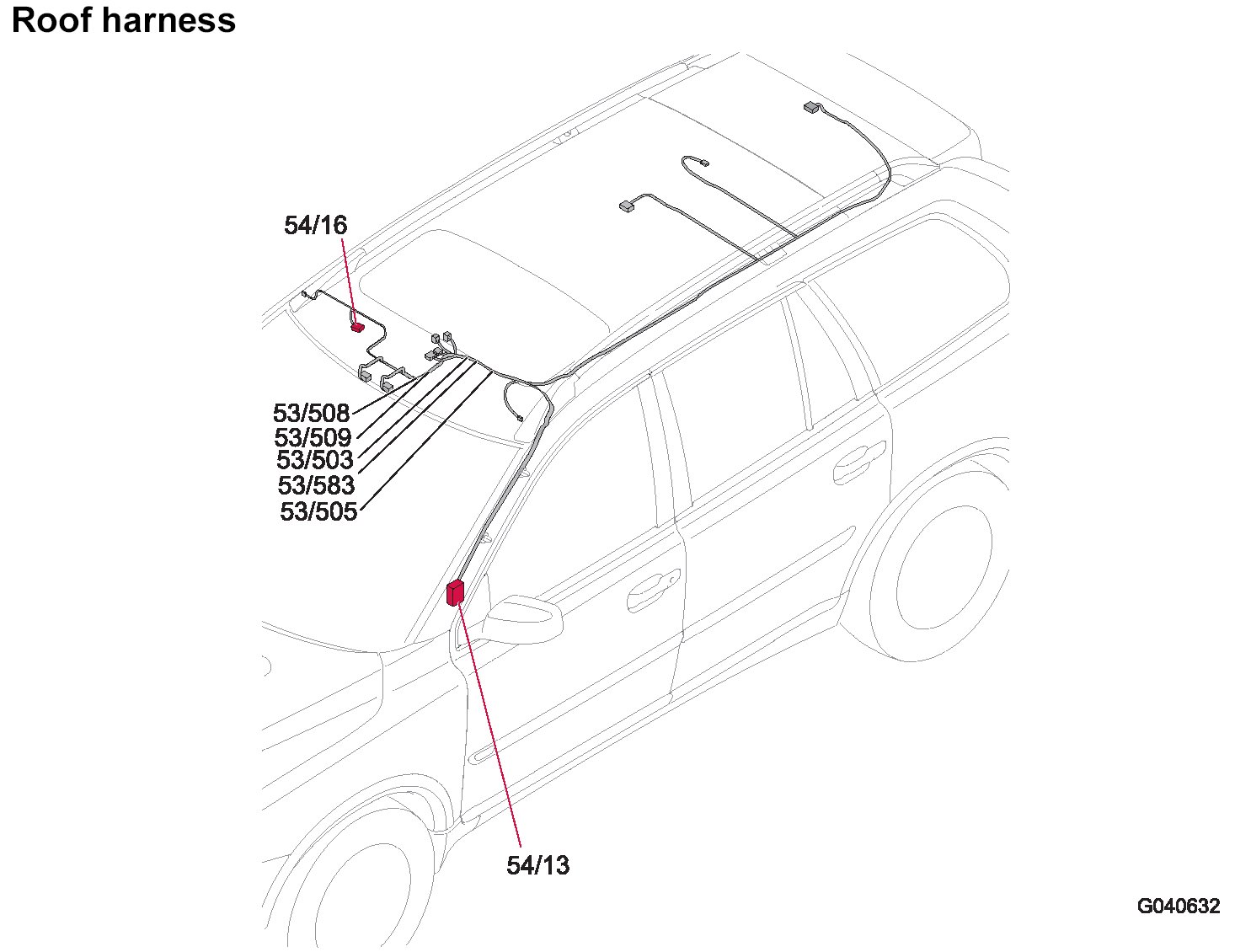

Roof Harness:

Tailgate Harness:

Harness Doors:

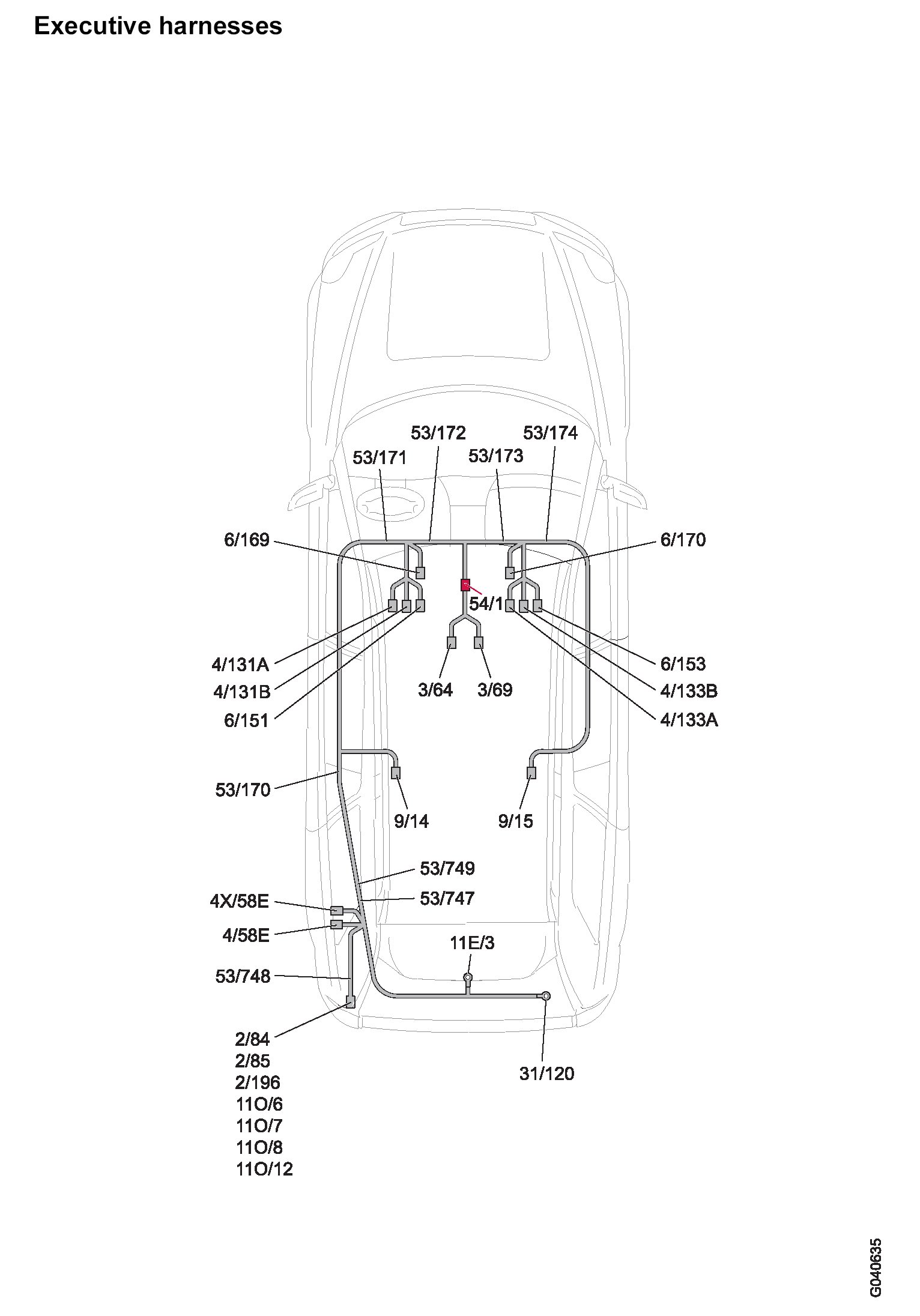

Executive Harnesses:

Image Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
