Recall 241 - Front Frame Side Member Inspection
TIE - Technical JournalTitle
Recall 241-Side member inspection
Ref No
US24496.1.1 en-US
Issuer -
Partner
3 US 7510 Volvo Cars North America
Func Group
8115
Func Desc
member system, front
Status
Released
Status Date
2011-03-24
Issue Date
2011-03-17
Reference VIDA

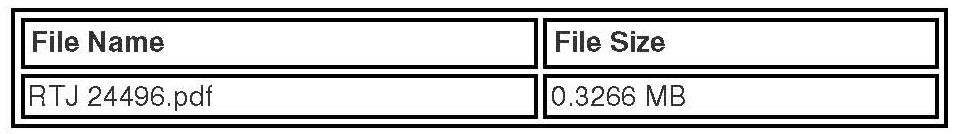

Attachment
Vehicle Type
CSC
DTC
Text
CSC Customer Symptom Code
DTC Diagnostic Trouble Code
Note! If using a printed copy of this Retailer Technical Journal(RTJ), first check for the latest online version.
DESCRIPTION:
There may be a crack on the right side of the support member in the engine bay.
Volvo Cars has decided that all cars concerned by this RTJ shall be inspected in accordance with the instructions in this document without delay.
SERVICE:

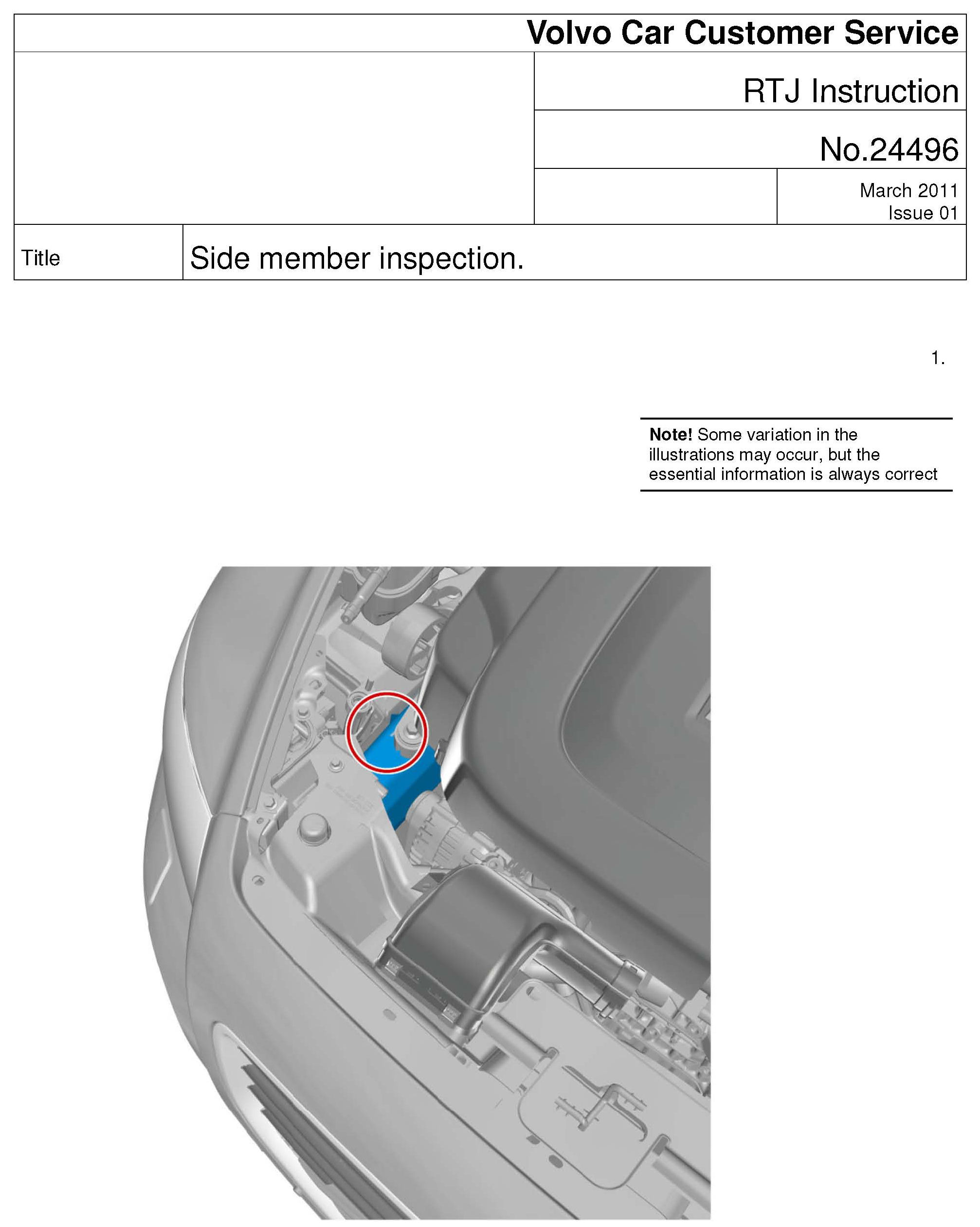

Follow inspection procedure in the attachment within this document.
If no crack in the side member is evident after inspection of the vehicle return the vehicle to the customer. This defect is the result of a vehicle production issue and there is no risk of future issues with the component after inspection.

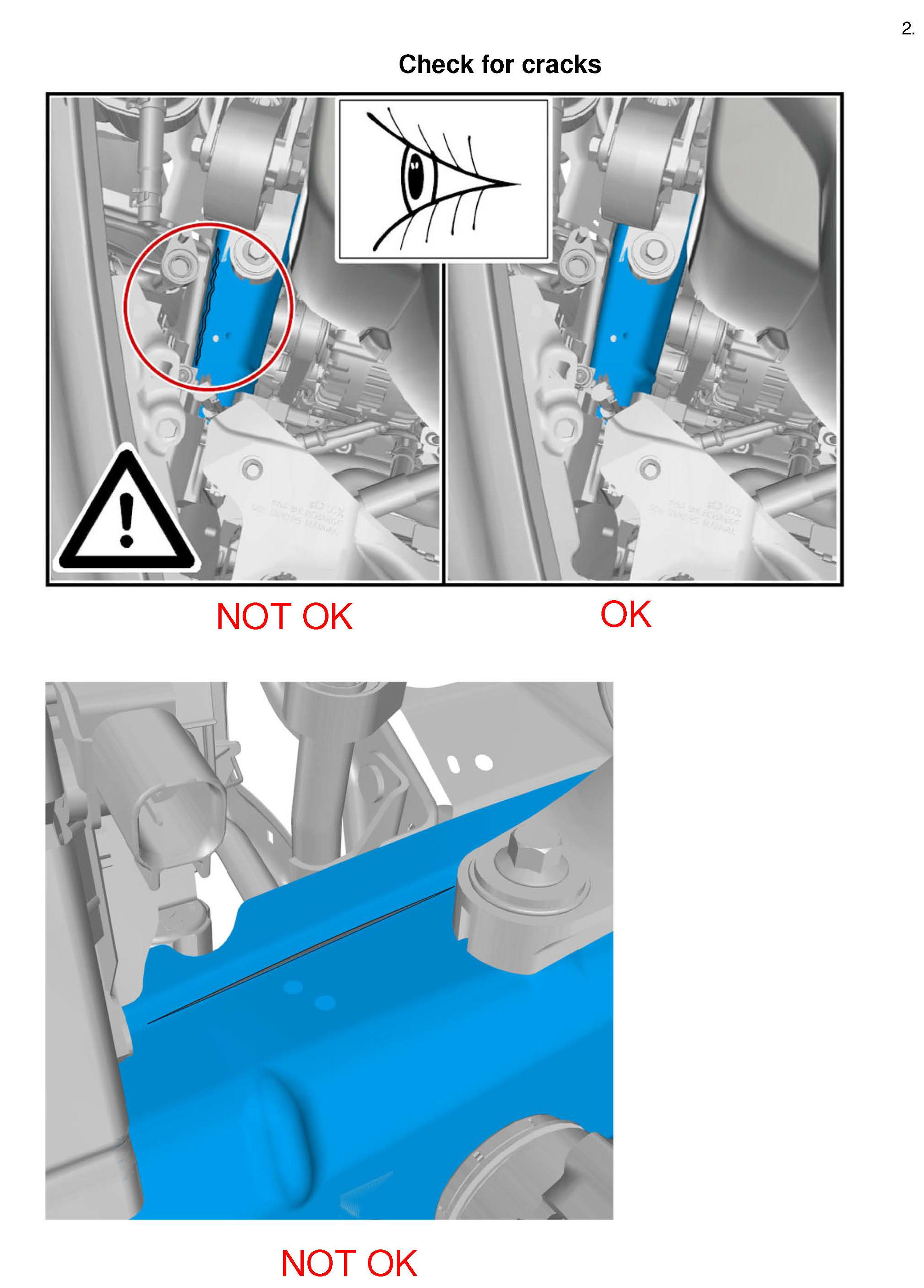

If the inspection reveals that the vehicle has a crack on the right side of the side support member in the engine compartment the vehicle must be taken out of service immediately. Please have the Service Manager contact Volvo Fleet Customer Care. A new replacement vehicle of equal specification will be provided by Volvo.
