Parking Brake System: Adjustments

Parking brake, adjusting

Operation number: 55102-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove cup holder floor console. Refer to: Floor Console Cup holder Floor Console Cup Holder

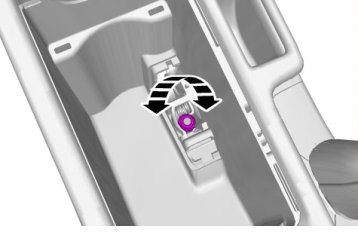

Note! Make sure that the road wheels freely rotate after the adjustment.

Installation

To install, reverse the removal procedure.
