Running/Parking Light, Tail Light (Dual Xenon)

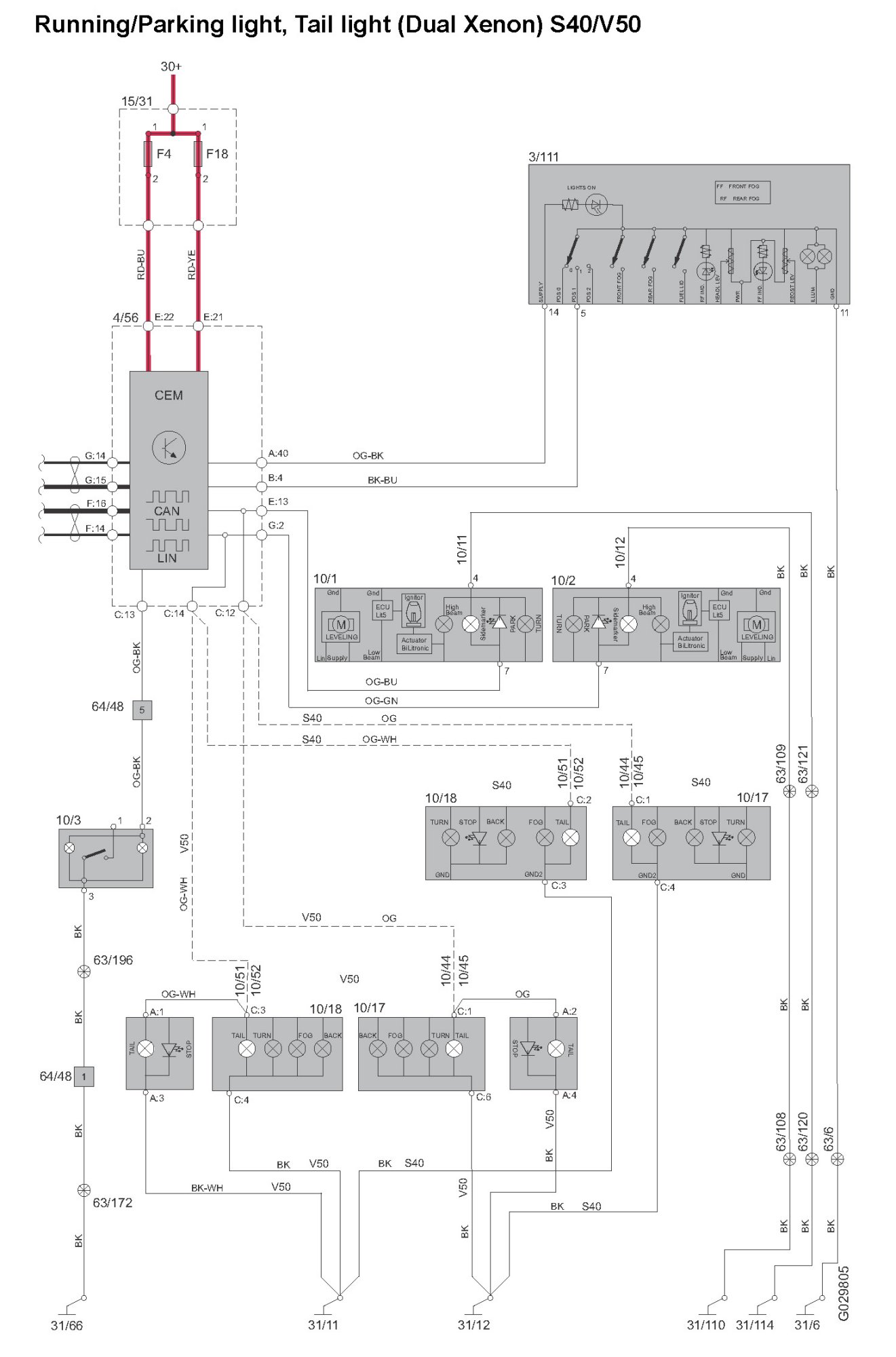

Running/Parking Light, Tail Light (Dual Xenon) S40/V50







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Numbers
