Cable Harness Routing

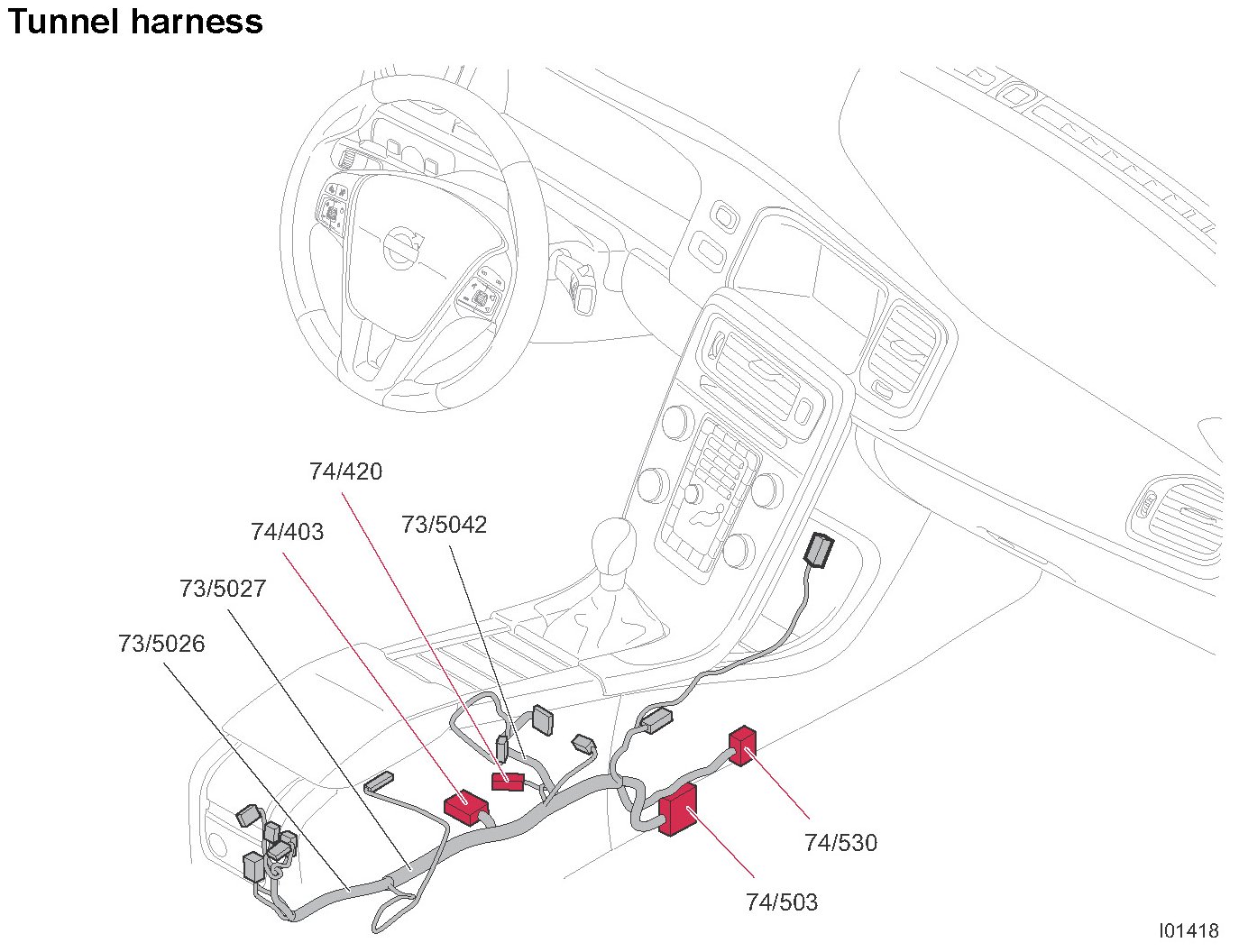

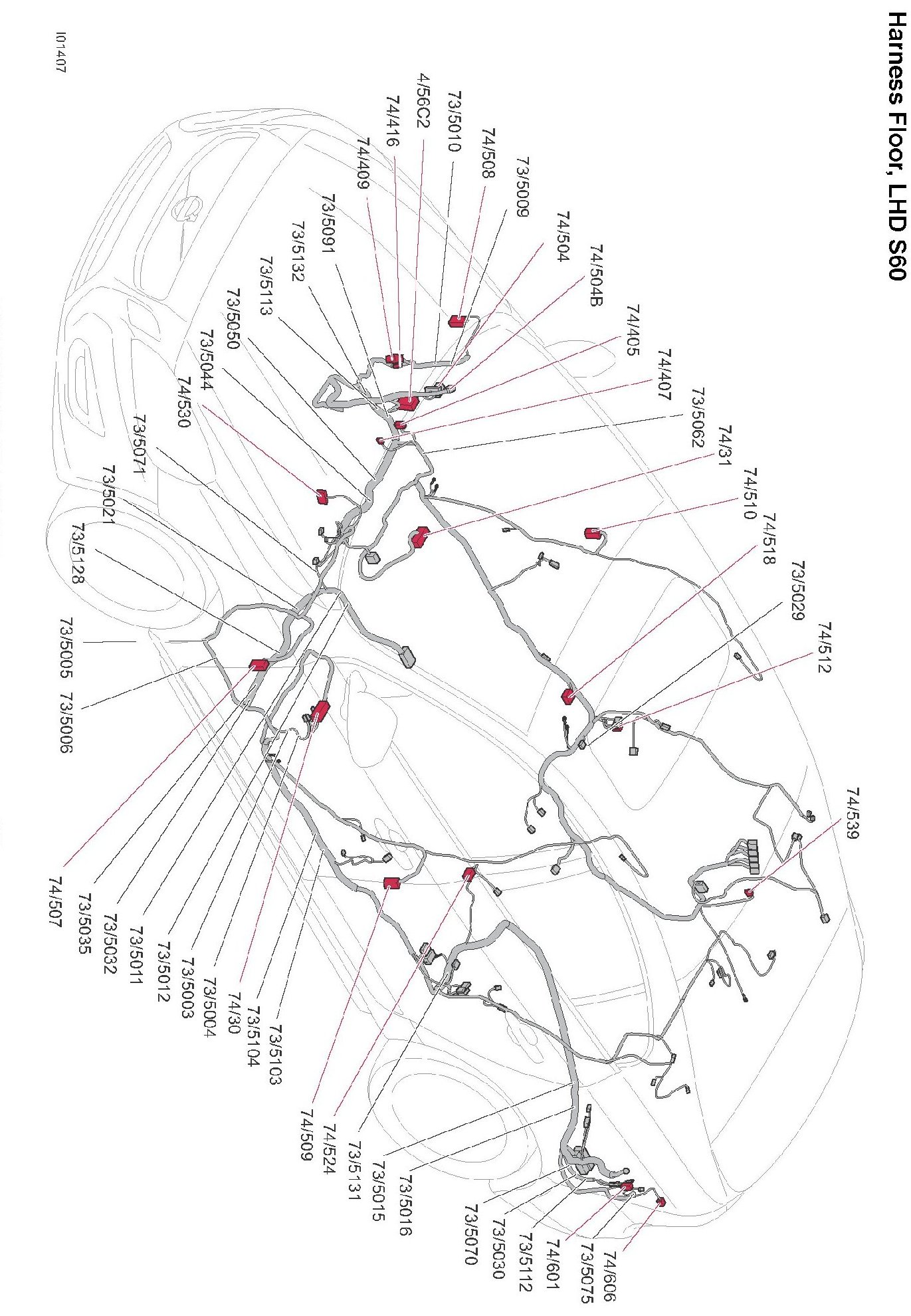

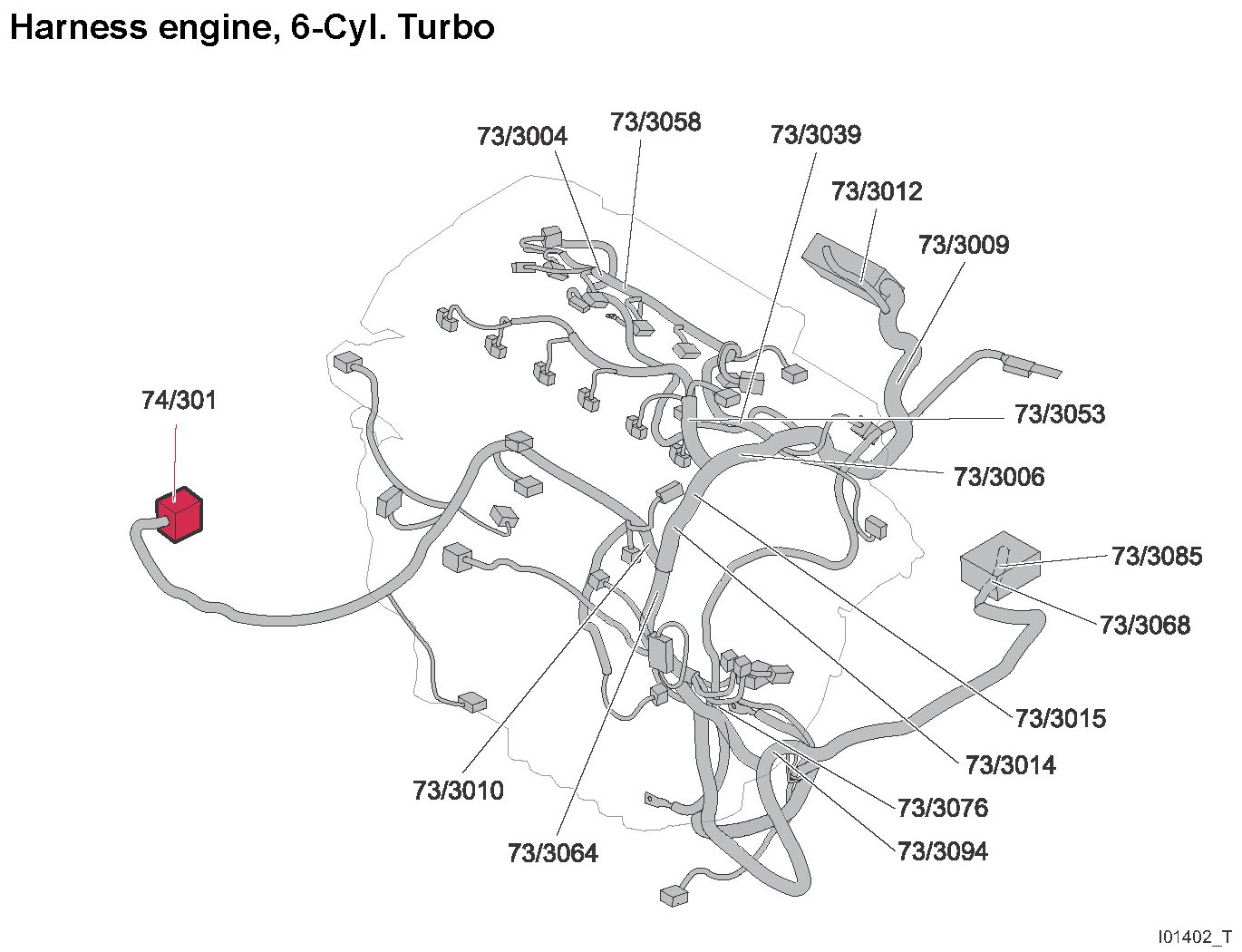

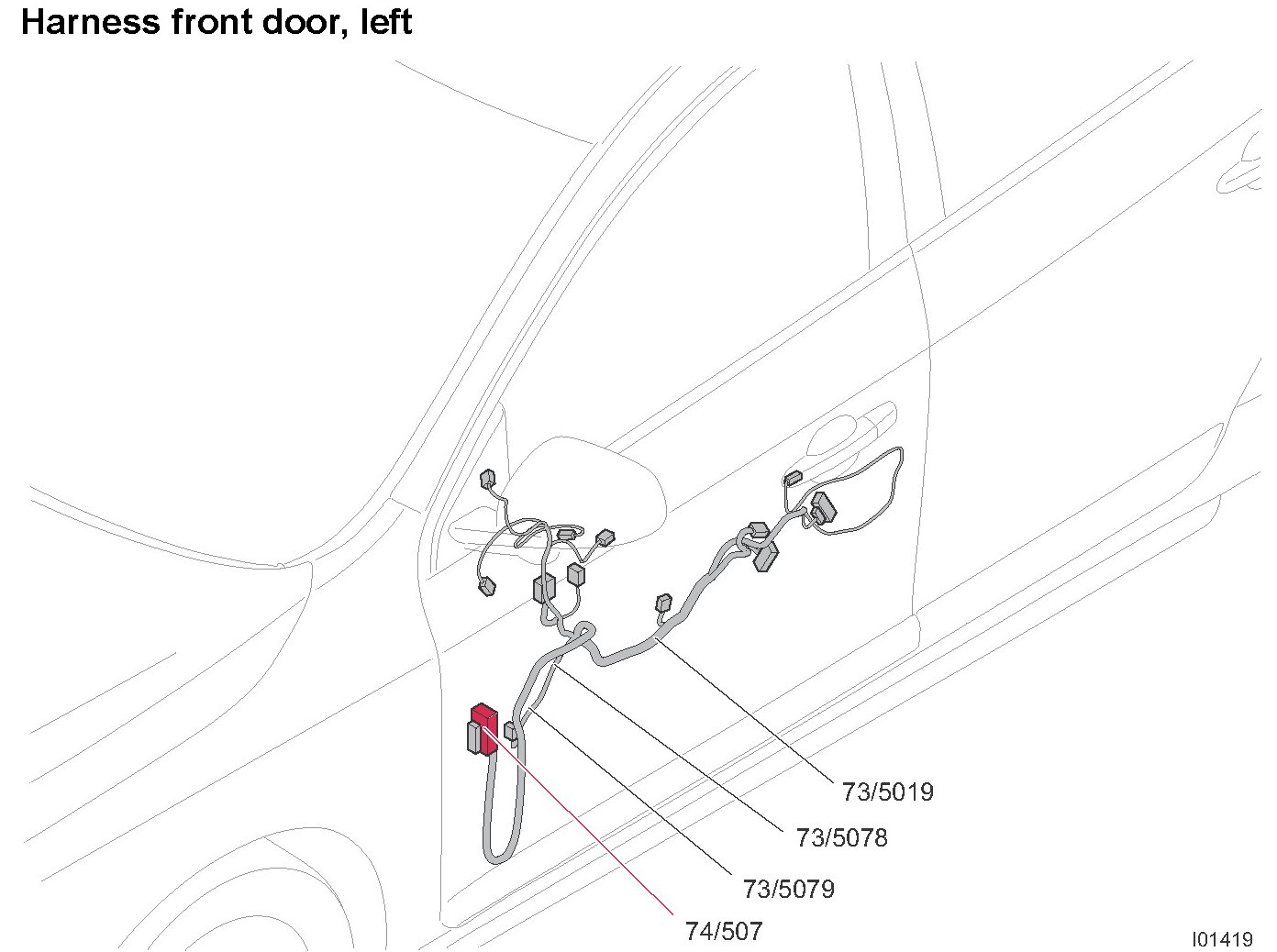

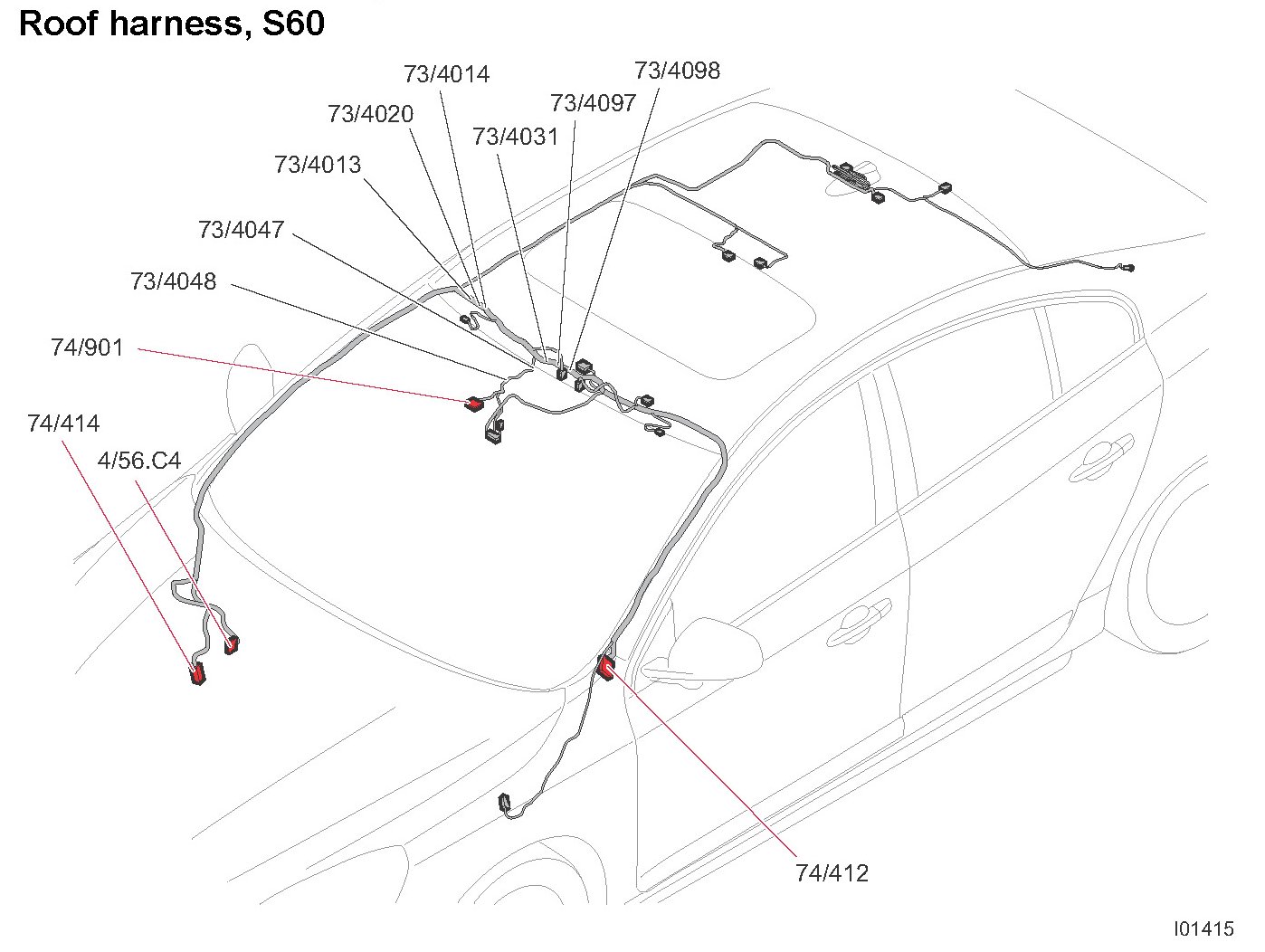

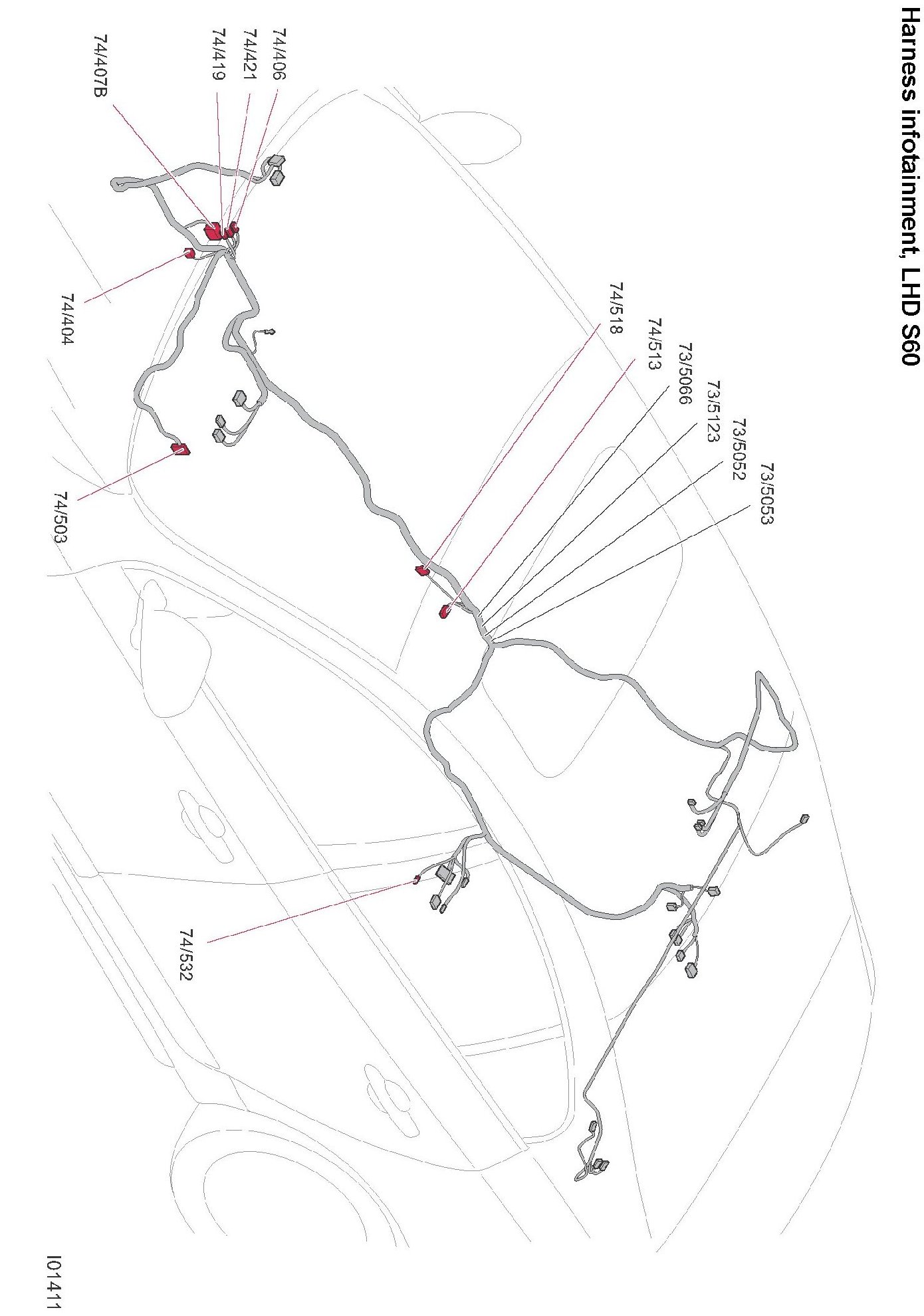

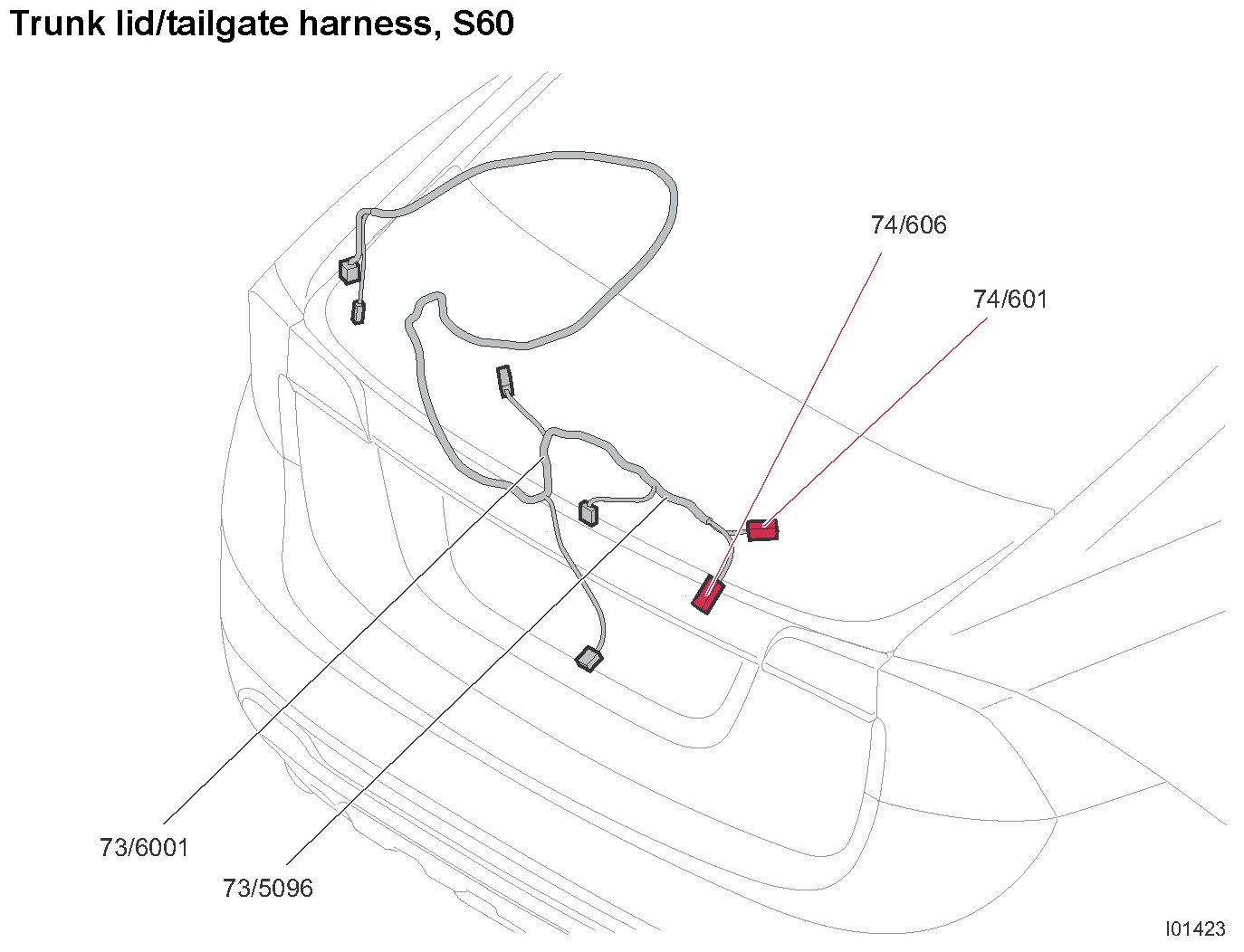

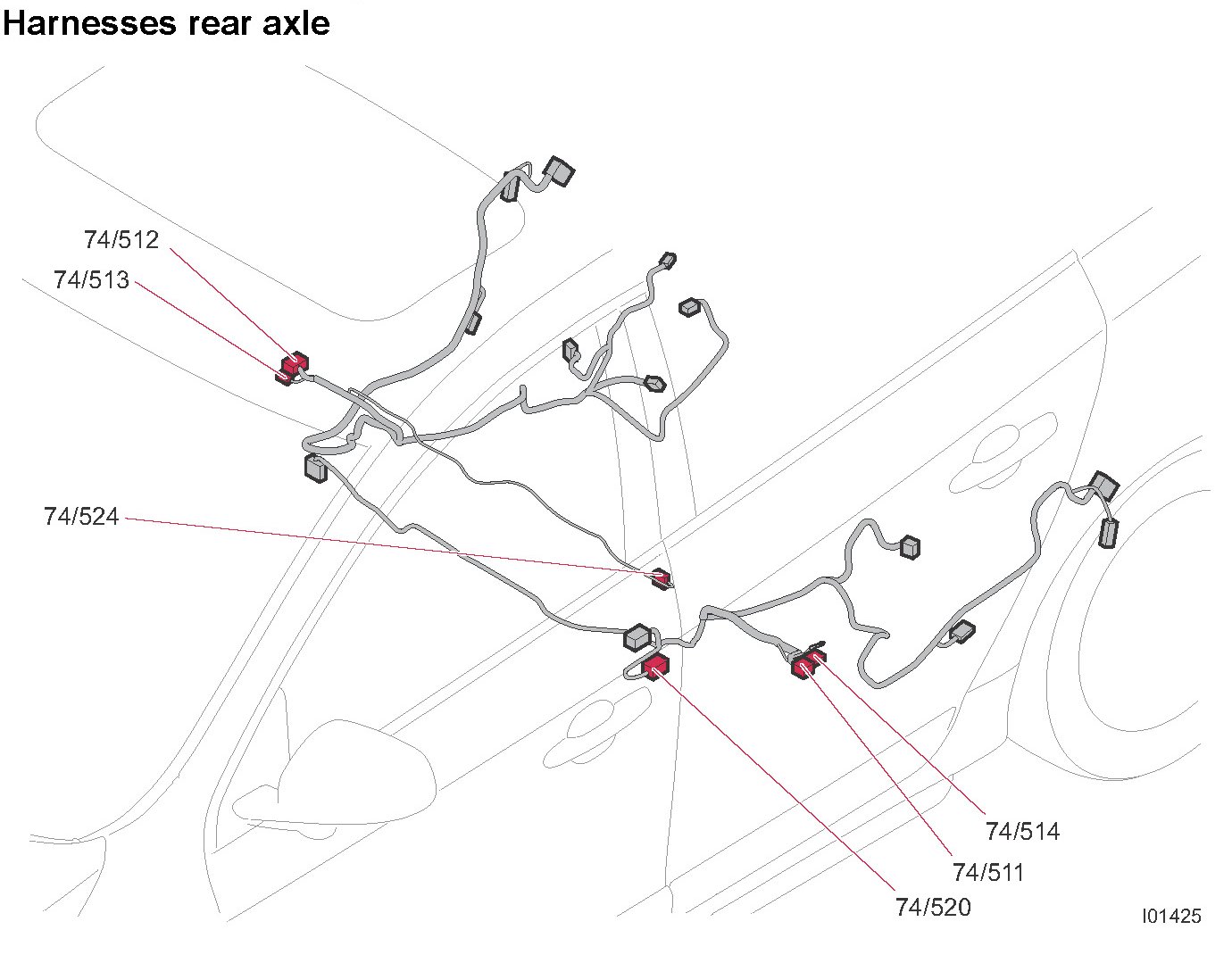

Cable Harness Routing In Vehicle
Image Legend:
Diagram Legend
Wire Color Code Identification and Other Abbreviations:
Wire Color Code and Other Abbreviations
List of Components By Component Number:
List of Components
