Fuel Fired Booster Heater

Fuel Fired Booster Heater

Operation number: 87522-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.


Note! First read the instructions for working with the fuel system. Refer to:

Remove the battery cable. See Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Drain the cooling system. Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair

Remove the engine coolant heater's exhaust pipe. Refer to: Fuel Fired Booster Heater Exhaust Pipe Service and Repair






Note! Be prepared to collect escaping coolant.






Note! Be prepared to collect escaping fuel.

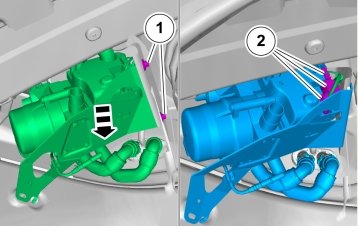

Remove the following items:
1. Torque: M6, 10 Nm

2. The electrical connectors, x3.

Installation

To install, reverse the removal procedure

Order software according to: 30773453.

Carry out a performance test on the engine coolant heater. Refer to: Fuel-powered preheater, checking .
