Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2011
>>
XC60 AWD L6-3.0L Turbo VIN 90 B6304T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
74/407
74/407

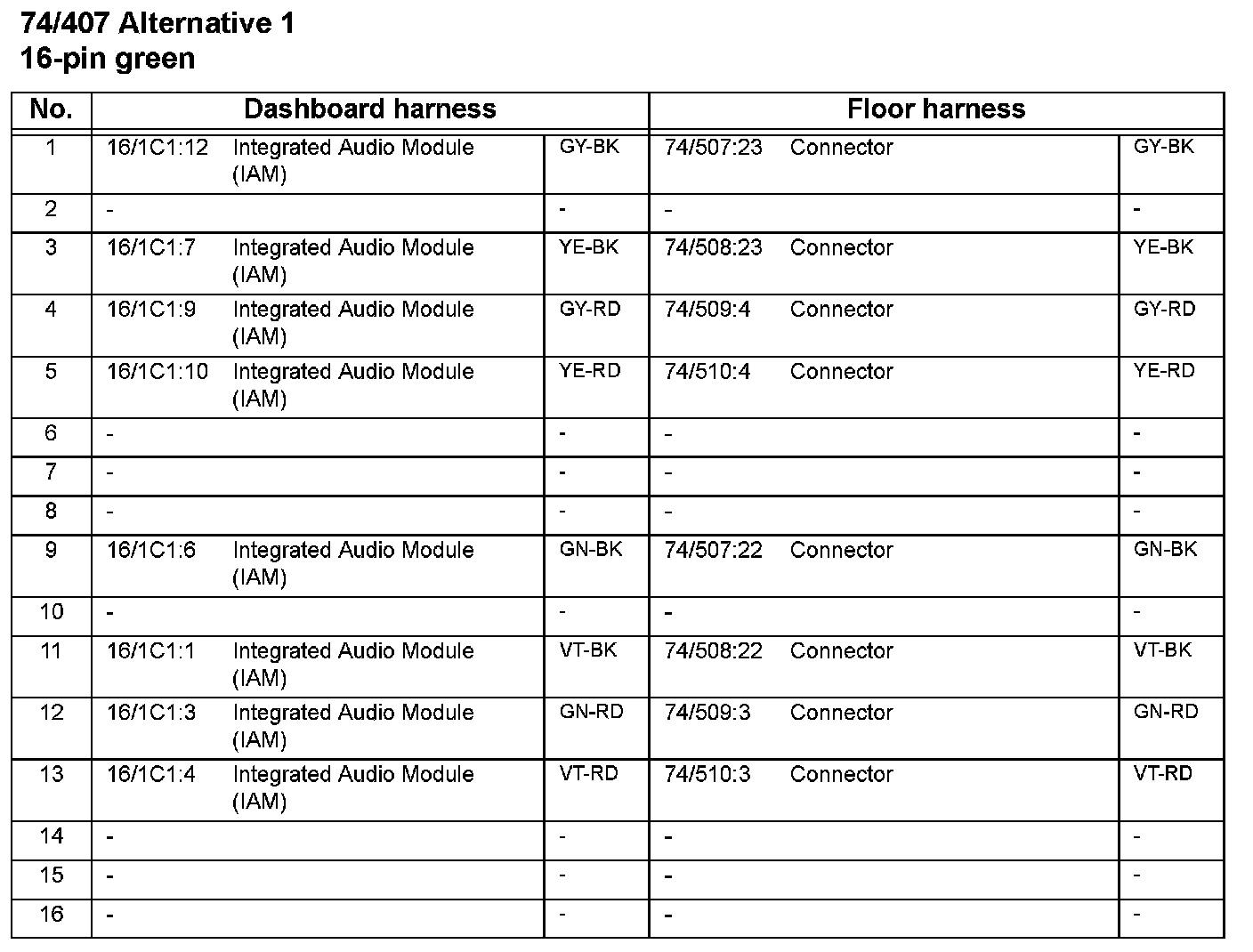

74/407 Alternative 1

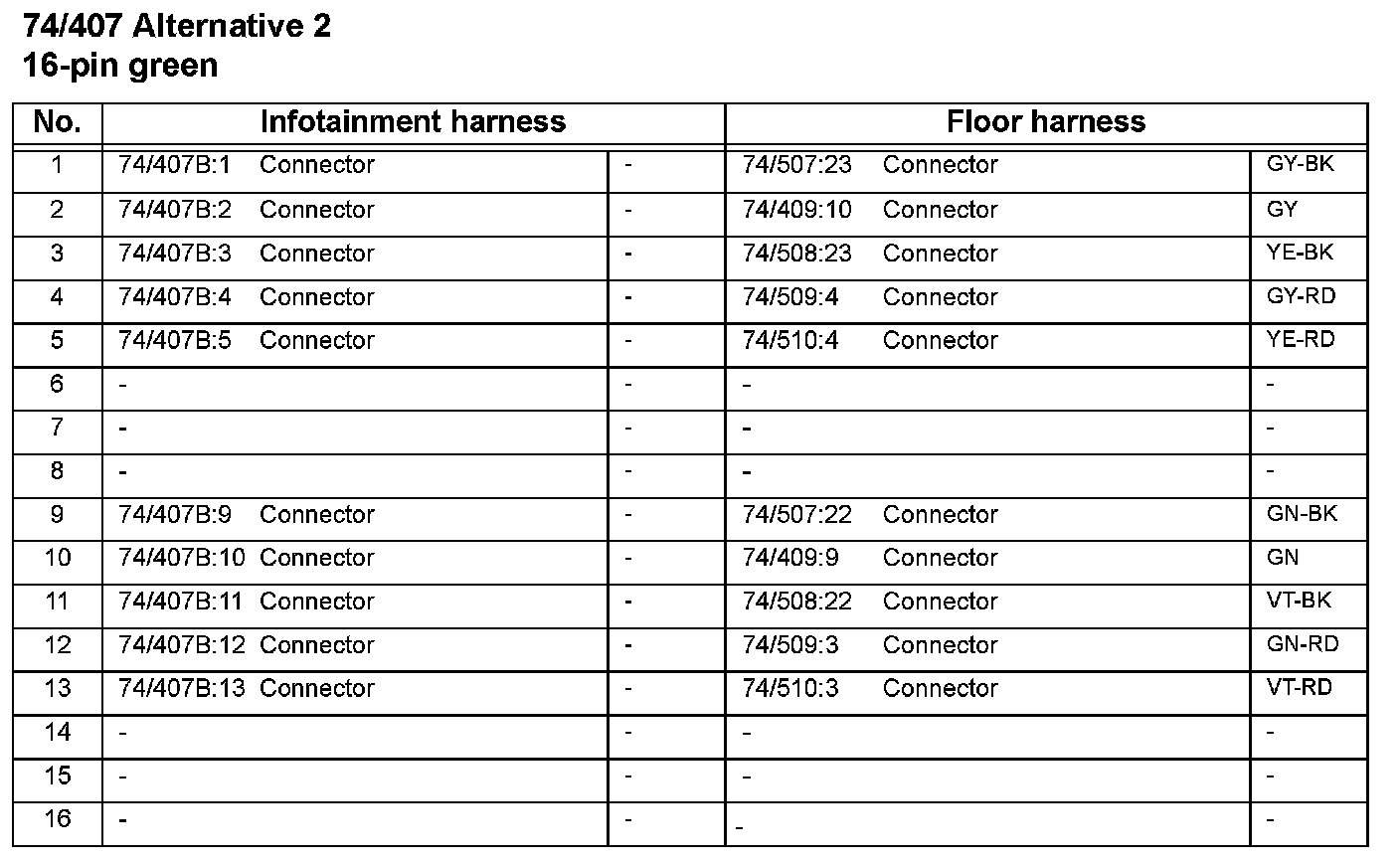

74/407 Alternative 2
