Central Electronic Module (CEM)

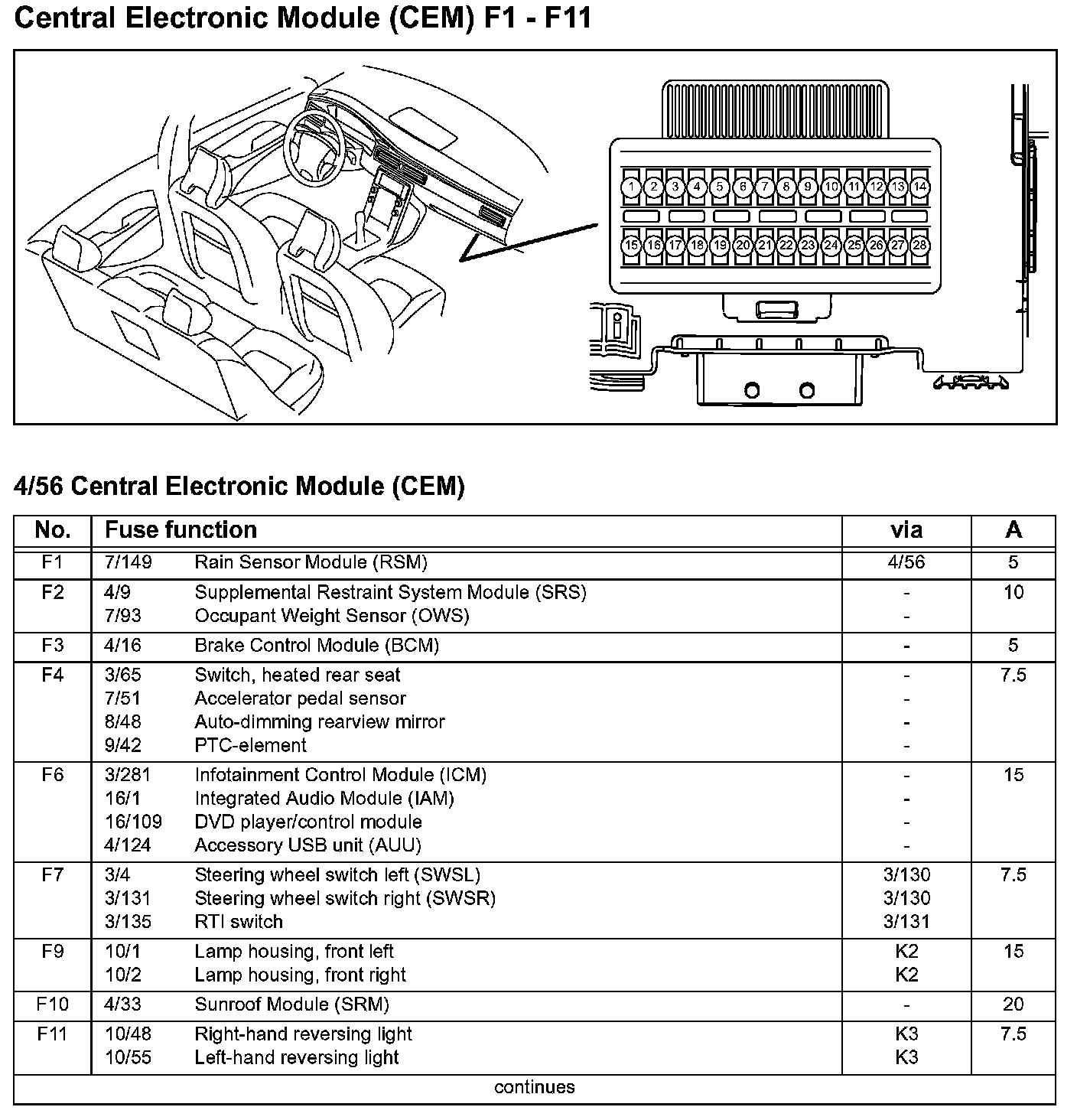

Center Electronic Module(CEM) F1-F11:



Central Electronic Module (CEM) F13-F19:



Central Electronic Module (CEM) F20-F28:
