Universal Serial Bus (USB) Module

Universal bus module (USB)

Operation number: 39426

Note! Some variation in the illustrations may occur, but the essential information is always correct.

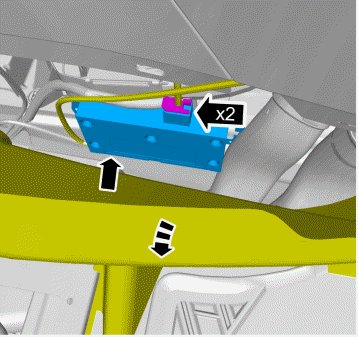

Removal

Note! Removal steps in this procedure may contain installation details.











Note! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the component terminals are not bent or damaged.

Installation

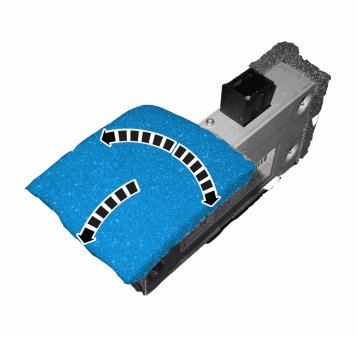

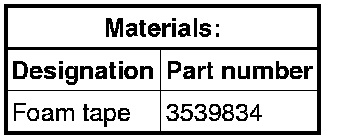

Use: Foam tape, 3539834




Install in reverse order.

Order software for the control module. See: 30732975.
