Air Bag: Locations

Location of components




1. Inflatable curtain
2. Seat belt buckle
3. Seat belt with seat belt tensioner, front seat
4. Seat belt with seat belt tensioner, rear seat
5. Lock for child seats (certain models only)
6. Lock for child seats (certain models only)
7. Side impact protection (SIPS) bag
8. WHIPS (Whiplash Protection System)
9. SRS control module
10. Driver's airbag
11. Combined instrument panel
12. Passenger airbag
13. Sensor in the B and C-posts.

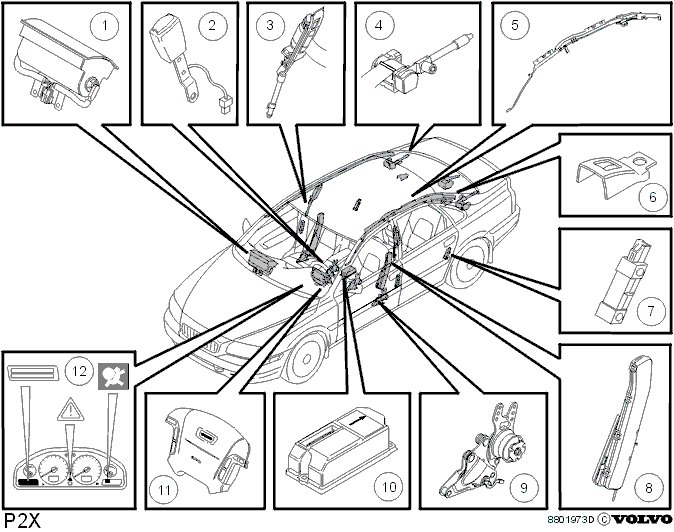

Location of components

Location of Components:

1. Passenger airbag
2. Seat belt buckle
3. Seat belt with seat belt tensioner, front seat
4. Seat belt with seat belt tensioner, rear seat
5. Collision curtains
6. Lock for child seats (certain models only)
7. Sensor in the B and C-posts
8. Side impact protection (SIPS) bag
9. WHIPS (Whiplash Protection System)
10. SRS control module
11. Driver's airbag
12. Combined instrument panel
