Alternator: Service and Repair

Generator (GEN), replacement

Operation number: 32102-2

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal






Remove the following items:

- the battery negative cable. See: Battery, disconnecting Battery Disconnecting
- the auxiliary unit belt, see: Auxiliaries belt/belt tensioner, replacement, B8444S Service and Repair










Torque: M6, 10 Nm

Raise the vehicle Refer to: Jacking points, body Service and Repair

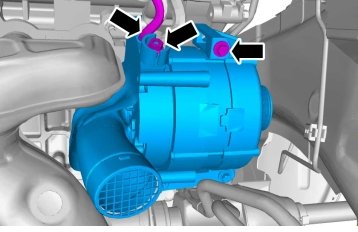

Remove the following items:
- Generator B+ terminal 15 Nm
- Torque: M8, 24 Nm





Note! For Tightening torque, see: Tightening torque [1][2]Specifications

Remove the right-hand drive shaft. Refer to: Drive shaft right, replacing, B8444S, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Drive Shaft Right, Replacing










Torque: M6, 10 Nm






Caution! Ensure that the components are not bent violently.

Remove the following items:
- Torque: M8, 24 Nm

- Torque: M6, 10 Nm






Installation

To install, reverse the removal procedure.
