Part 2

Alcoguard (Continued)

Installation in Floor Console Compartment

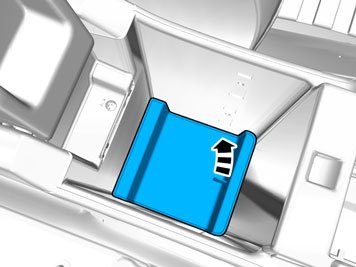

Detach the panel.





Note! Protect adjacent components with tape.












Remove the screws.




Facilitate cable routing by temporarily raising the floor bracket using a socket or similar.




















Fold the carpet to the side.




Place any excess inside the floor carpet.

Right-hand drive vehicles




Fold the carpet to the side.




Place any excess inside the floor carpet.

All vehicles





Caution! Make sure that no part of the wiring harness is trapped.

Reinstall the screws.





















Note! When placing the cradle in the floor bracket storage compartment, the cradle should always be positioned at the rear edge on left hand side. Applies to left and right hand drive cars.








Use: Scribe.
Make holes in the storage compartment using the point of a scriber.




Install the screws.








Connect the connector.




Install the part with butyl tape.




Pull the wiring through.




Remove the screws.












Install the part with butyl tape.








Connect the connector.




The lamp with the battery symbol should flash if the power supply is correct, if not, the black connector must be turned to switch poles.




Reinstall the removed parts in reverse order.
Place any excess inside the floor carpet.




Download software (application) for the accessory's function.
