Component Tests and General Diagnostics

Pressure test - Power steering






Check





Warning! Be prepared to collect escaping fluid.

Warning! Power steering fluid is extremely flammable. Make sure that power steering fluid is not spilled over the engine and that the power steering fluid reservoir cap is sealed.

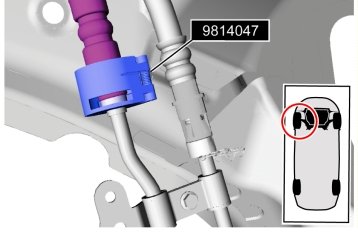

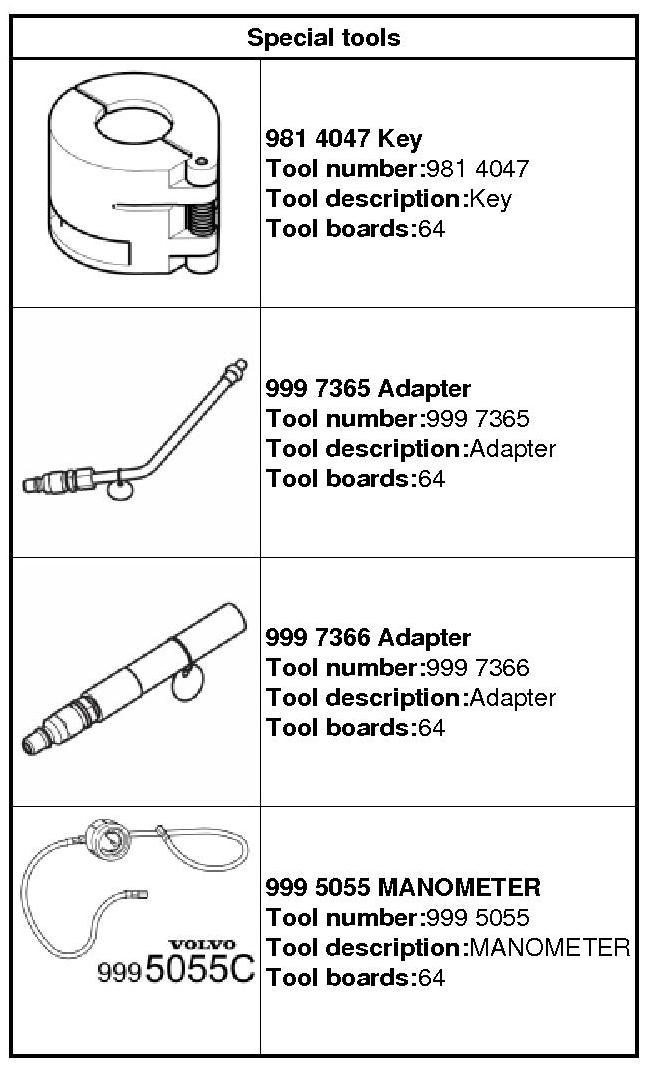

981 4047 Wrench 981 4047 Wrench




999 7365 Adapter 999 7365 Adapter 999 7366 Adapter 999 7366 Adapter

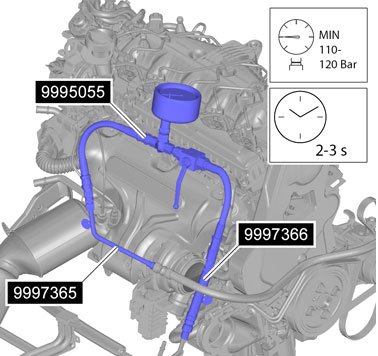

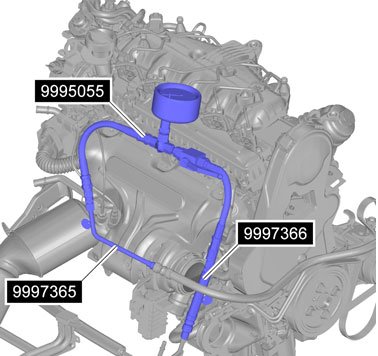

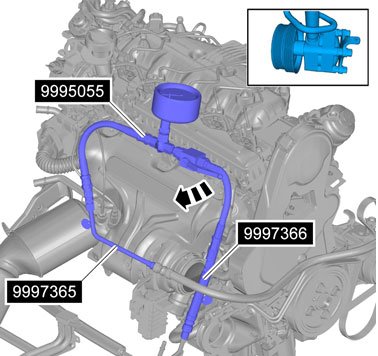

999 5055 Pressure gauge 999 5055 Pressure Gauge 999 7365 Adapter 999 7365 Adapter 999 7366 Adapter 999 7366 Adapter





























Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
