Compressor HVAC: Service and Repair

AC compressor

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the refrigerant Refer to: Refrigerant, draining Refrigerant, Draining





Remove battery Refer to: Battery Removal and Replacement












Torque: M8, 24 Nm

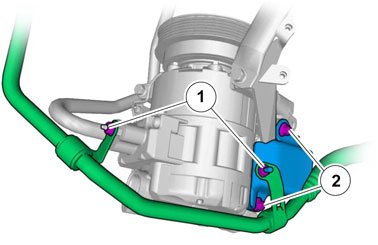

Remove the following items:
1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm








Torque: M8, 24 Nm





Remove the following items:
1. Torque: M5, 5 Nm

2. Torque: M6, 10 Nm

3. Torque: M8, 24 Nm

Remove wiper

Installation

Note! Use new seals.

To install, reverse the removal procedure.

Perform draining refrigerant, vacuum pumping, and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, and Filling

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
