Home >> Volvo >> 2012 >> XC90 R Design AWD L6-3.2L VIN 95 B6324S5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Changes Introduced Up to and Including Structure Week 11W20 >> 54/13

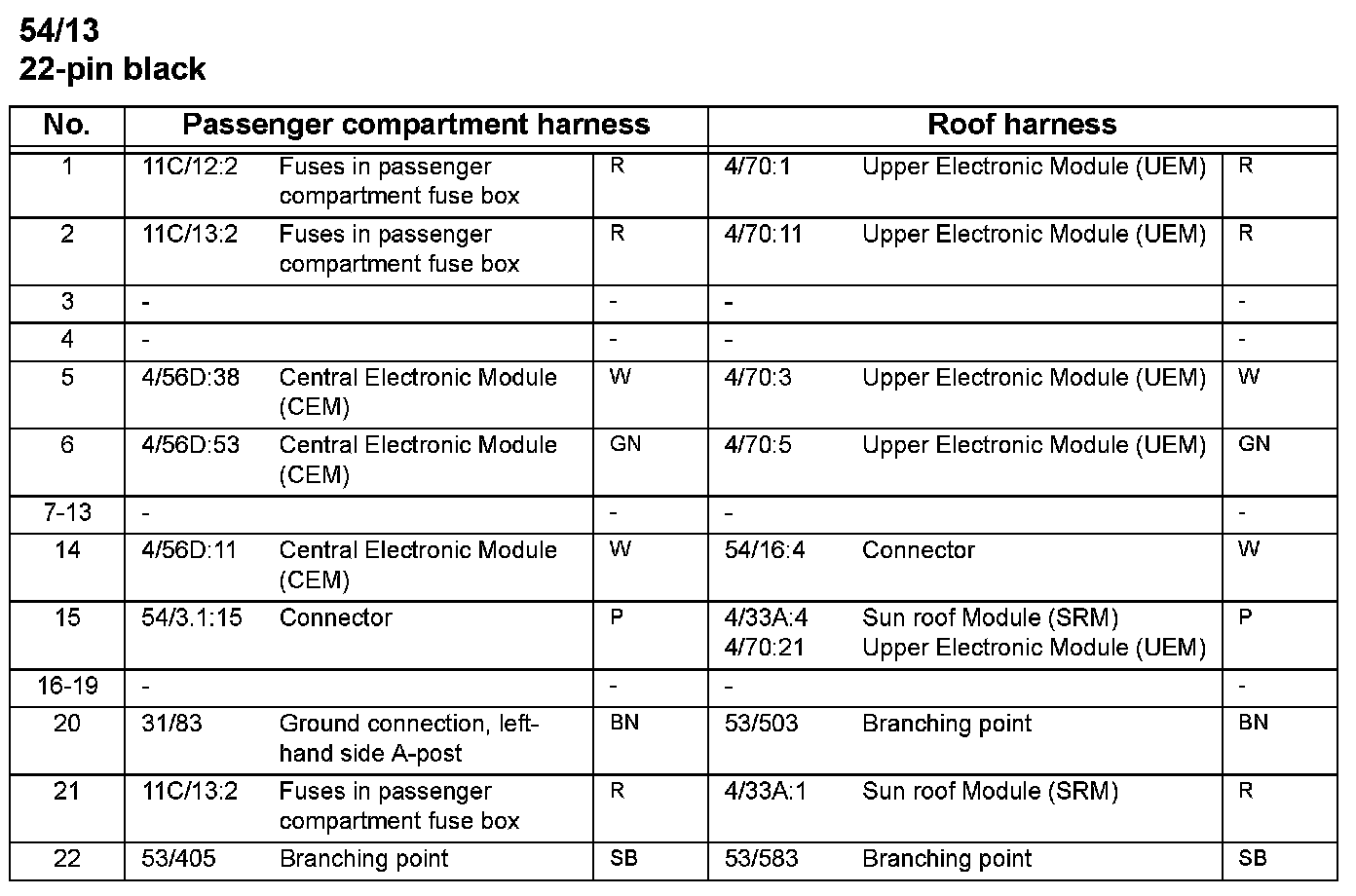

54/13



54/13
