Cable Harness Towbar/Tow Hitch 13-Pin

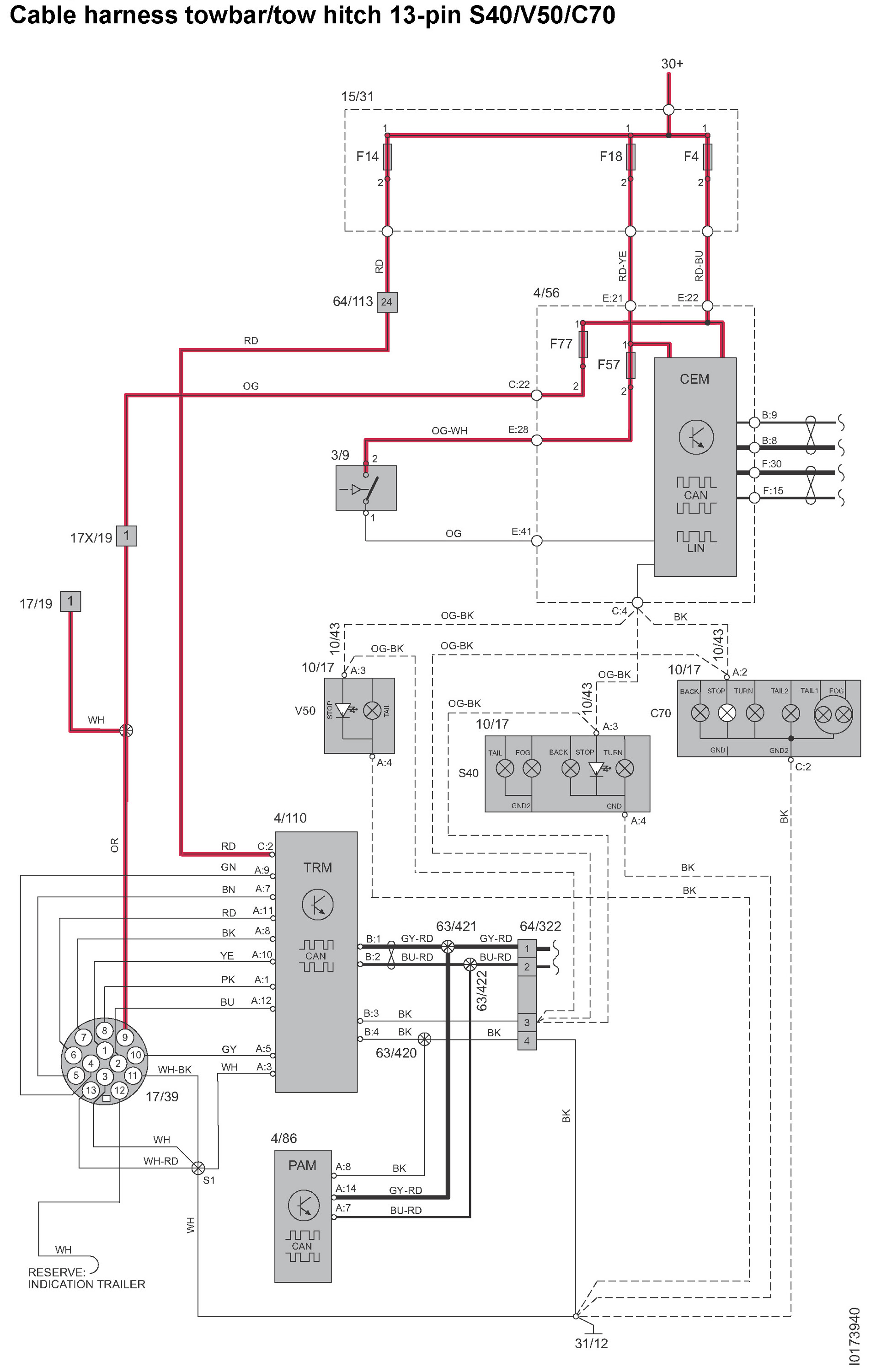

Cable Harness Towbar/tow Hitch 13-pin S40/V50/C70







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
