Part 1
Multimedia system, RSE, two screens
Equipment
Component overview
Operation number: 39343
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Removal

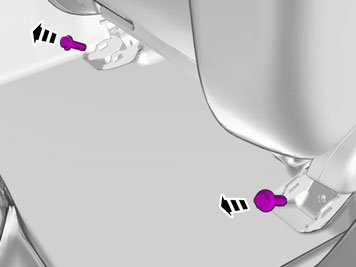

Torque: Front seat to body, 40 Nm
Torque: Front seat to body, 40 Nm
Alternative 1
Alternative 2
All vehicles
Repeat the steps when removing on opposite side.
Remove the panel.
Fold the carpet to the side.
1. Remove the cable harness clips.
2. Disconnect the connector.
Remove the panel.
Vehicles with the 4C system.
Disconnect the connector.
All vehicles
Disconnect the connector.
Use: Electrician's screwdriver.
Remove the screws.
Remove the screws.
Cars with automatic transmissions
Release the shift-lock function.
Cars with manual transmissions
Release the lock ring which is located inside the gear lever boot.
Pull the locking sleeve and gear lever boot down. Take care so that the boot does not come loose from the lock ring.
All vehicles
Note! The number of connectors may vary depending on the vehicle's equipment level.
Disconnect the connectors.
Remove the screws.
Disconnect the connector, if applicable.
Attach the connector to the wiring harness.
Use: Wiring tape,
Note! The number of connectors may vary depending on the vehicle's equipment level.
Disconnect the connectors.
Remove the screws.
Disconnect the connector.
Caution! Be extra careful when removing or installing this component.
Use: Electrician's screwdriver.
Repeat the steps when removing on opposite side.
