Spare Tire Carrier: Service and Repair

Spare wheel winch

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Applies to vehicles with 7 seats

Make sure that the third seat row is raised

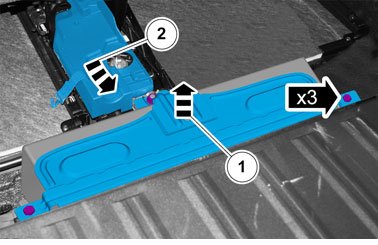

Remove the jack

Applies to all vehicles.
Remove the spare wheel

Applies to vehicles with 7 seats

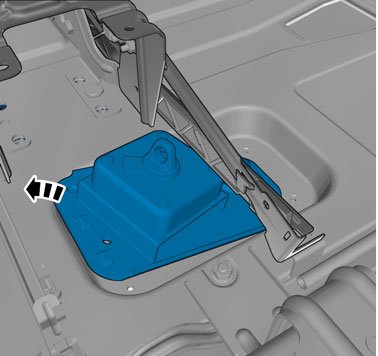

Applies to all vehicles.

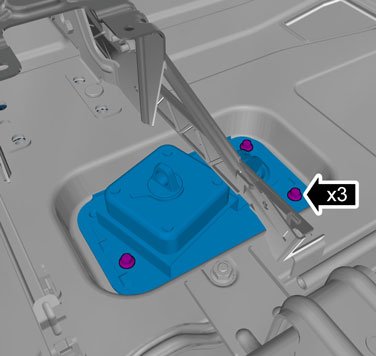

Tighten to 10 Nm






Installation

Applies to all vehicles.
Install in the reverse order.
