Daytime Running Lamp: Service and Repair








Daytime Running Light LED

Equipment

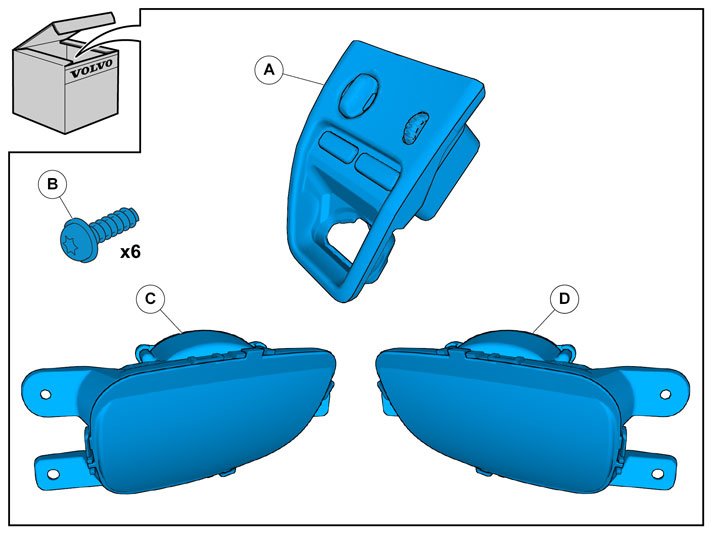

Component overview










Operation number: 35624

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimis the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Color symbols





Note! This colour chart displays (in colour print and electronic version) the importance of the different colors used in the images of the method steps.

1. Used for focused component, the component with which you will do something.
2. Used as extra colors when you need to show or differentiate additional parts.
3. Used for attachments that are to be removed/installed. May be screws, clips, connectors, etc.
4. Used when the component is not fully removed from the vehicle but only hung to the side.
5. Used for standard tools and special tools.
6. Used as background color for vehicle components.

Removal




Set the ignition key to position 0.

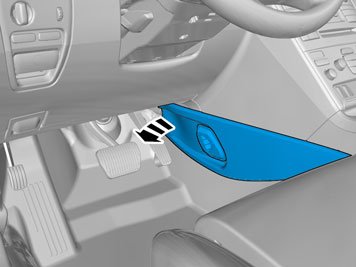

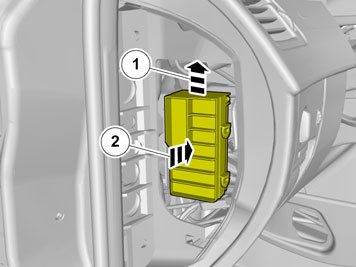

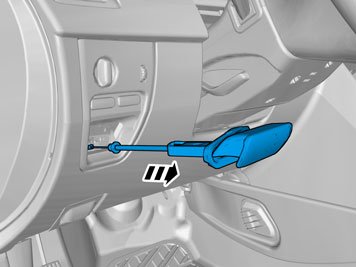

Remove the panel.




Remove the screws.

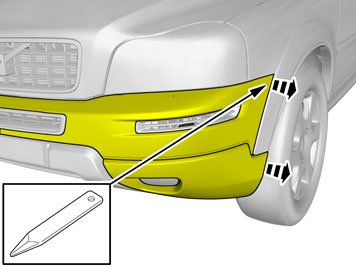

Remove the panel.

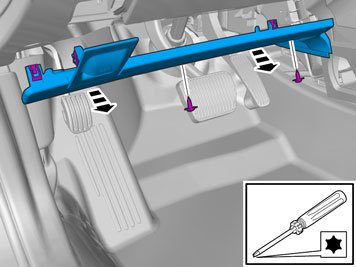

Remove the panel.








Remove the screws.

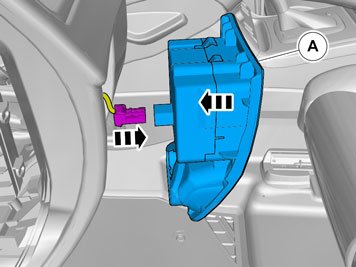

Accessory installation





Installation

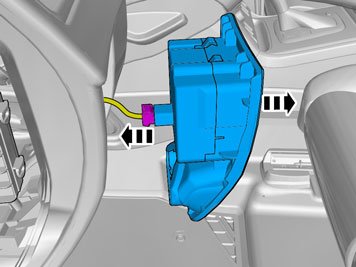

Reinstall the removed parts in reverse order.

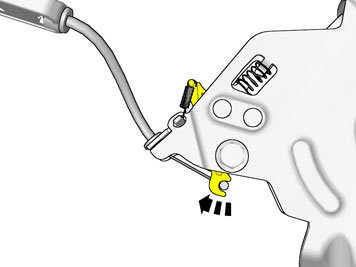

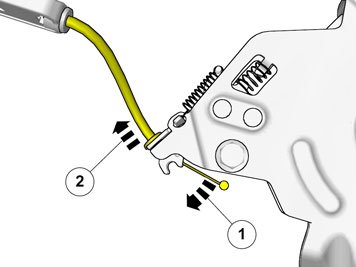

Check the parking brake release.

Removal

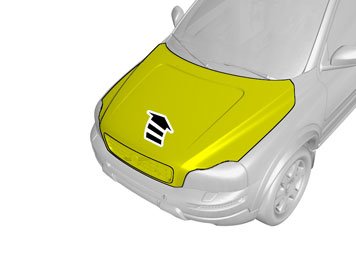

Open the hood.

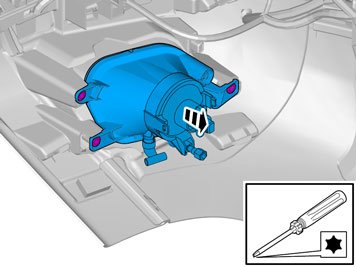

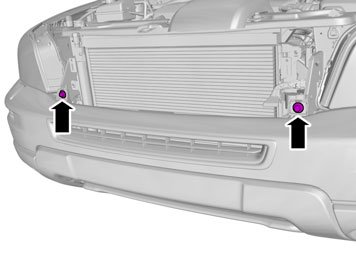

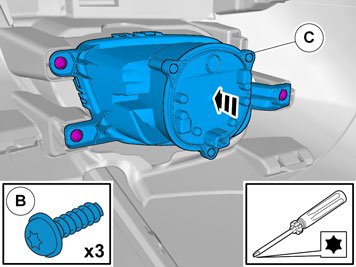

Remove the screws.




Remove the clips.





Vehicles with headlamp washers





All vehicles





Note! This step is easier with two people.




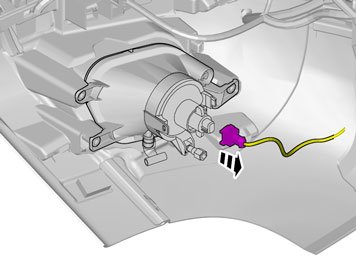

Repeat on the other side.




Repeat on the other side.

Accessory installation




Repeat on the other side.

Installation

Reinstall the removed parts in reverse order.




Download software (application) for the accessory's function.

Kit Numbers:
31338945
31338947
31373058
