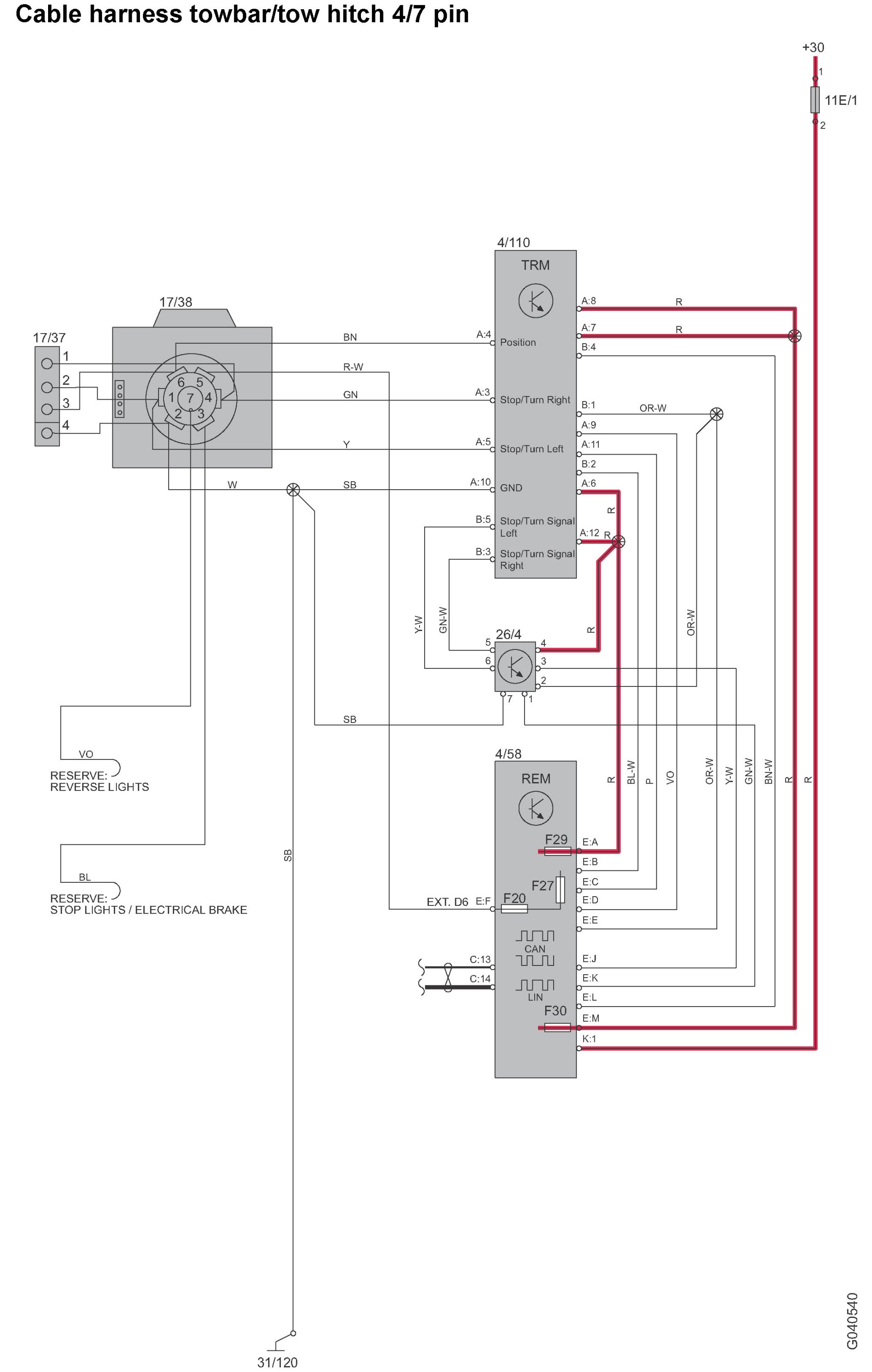

Cable Harness Towbar/Tow Hitch 4/7 Pin



Cable Harness Towbar/Tow Hitch 4/7 Pin







Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
