Wheel Stud / Lug Nut
Wheel Stud / Lug Nut

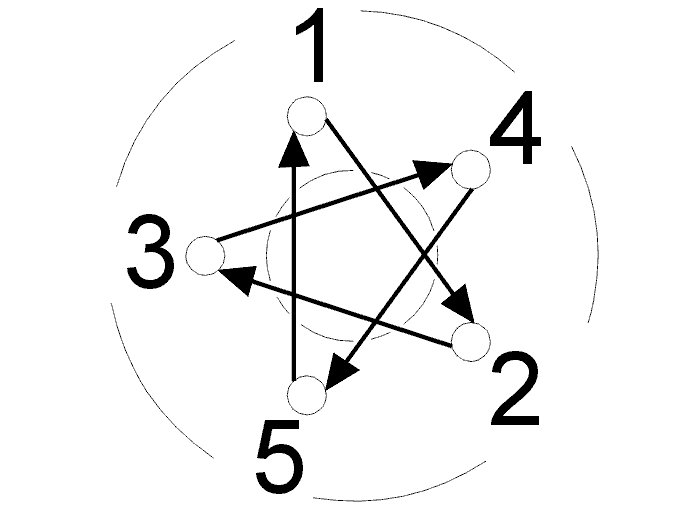

Wheel Lug Nuts
Grease the hub center location dowel for the rim with installation paste 1161397-3
Install wheel studs lightly
Torque
140 Nm
