Differential Lock: Service and Repair

Operation number: 46505-2

Clutch four-wheel drive

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

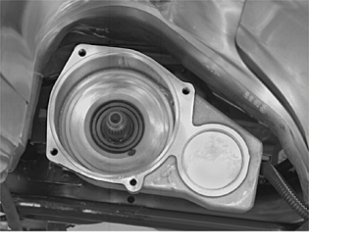

Remove the driveshaft. Refer to: Propeller Shaft, B6324S5, TF-80SC AWD Propeller Shaft





999 5652 Counterh. 999 5652 Counterh. , 999 5759 Adapter flange All-wheel drive 999 5759 Adapter flange All-wheel drive

Note! Be prepared to collect escaping fluids.

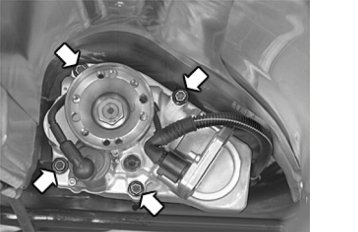

Torque: M8, 24 Nm











Installation

To install, reverse the removal procedure

Fill and check the oil level in the four wheel drive clutch.
