P0216

DTC P0216 Injection Timing Control Circuit






Circuit Description

The timing of the combustion event is accomplished by delivering a pulse of fuel into the combustion chamber at desired degree of piston travel. This desired degree (desired timing) defines the current position of the piston in relationship of Top Dead Center. This test compares the desired timing to the measured timing when certain conditions have been met. In order to retard the injection timing, the PCM extends the Stepper motor. To advance the injection timing, the PCM retracts the Stepper motor.

Conditions for Running the DTC

The engine speed has not changed more than 56 RPM for 20.8 seconds.

Conditions for Setting the DTC

A 5 degree difference between the Act Inj. Time and Des. lnj. Time

Action Taken When the DTC Sets

^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive drive trip the diagnostic mns and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the Failure Records store this information. If the diagnostic reports a failure on the second consecutive drive trip, the Freeze Frame records the operating conditions at the time of failure and updates the Failure Records.

Conditions for Clearing the MIL/DTC

^ The PCM will turn the MIL off after three consecutive trips without a fault condition.
^ A History DTC will clear after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
^ Use of a scan tool will clear the DTC codes.

Diagnostic Aids

An intermittent may be caused by the following:

^ Poor connections
^ A rubbed through wire insulation
^ A broken wire inside the insulation

A hard start and a possible poor performance condition might exist. The Act. lnj. Time will freeze at the point of the fault. DTC P0216 will possibly set if the injection timing is not set correctly. Refer to Injection Timing Adjustment for the correct procedure.

Test Description

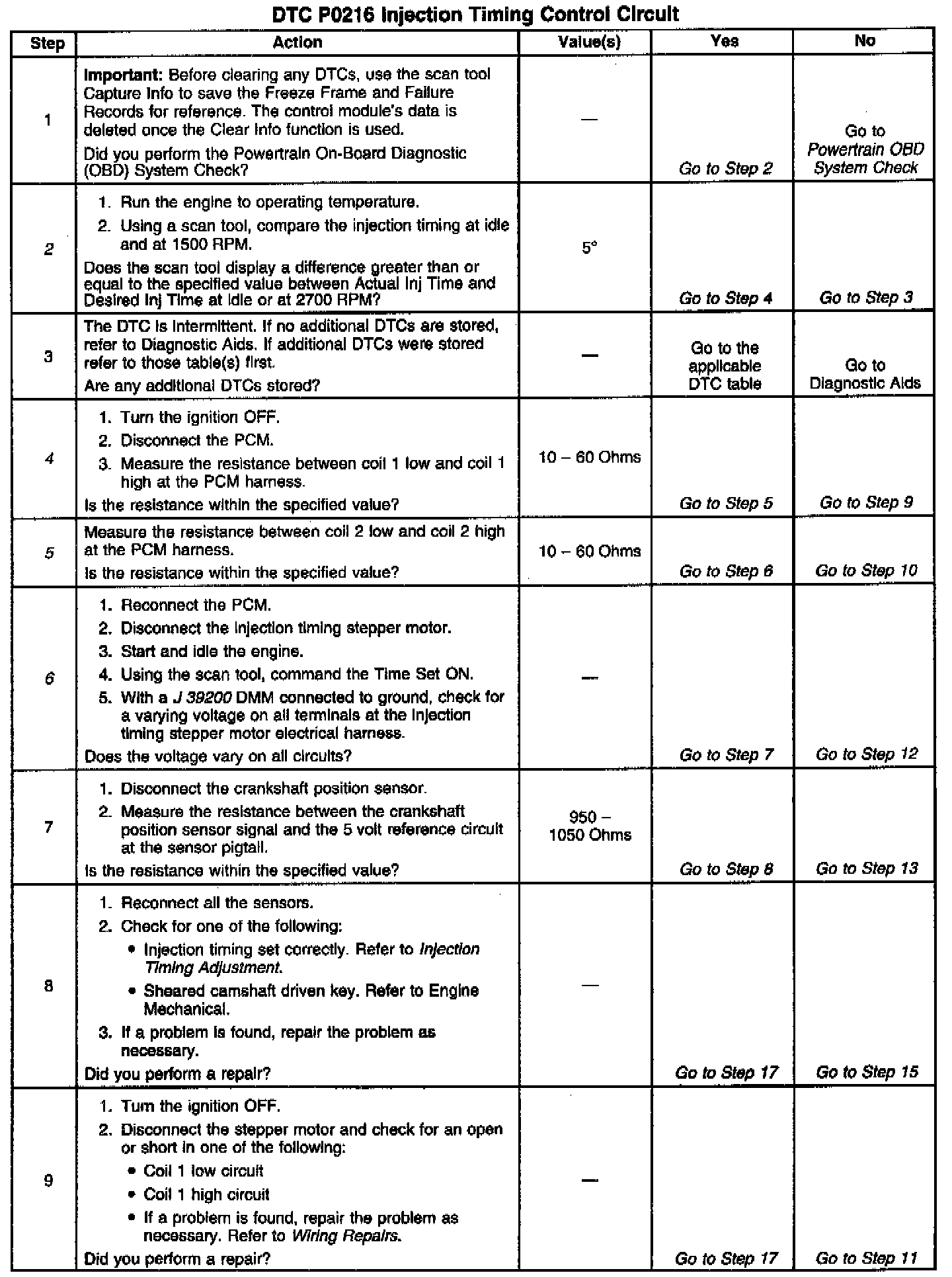

Number(s) below refer to the step number(s) on the Diagnostic Table.

2. This step determines DTC P0216 is a hard failure or an intermittent.
4. This step checks for an open or short in the injection timing coil circuit 1.
5. This step checks for an open or short in the injection timing coil circuit 2.
6. The important thing in this step is that the PCM is sending a varying voltage (voltage may vary between 1 and 12 (usually you will see voltage vary between 5 and 6 when engine is idling)), this will indicate that the PCM is OK and that there is a problem with the injection timing Stepper motor. If there is a steady voltage present on any circuit, this will indicate a problem with the PCM or a circuit shorted to voltage.
