P0370
DTC P0370 Timing Reference High Resolution

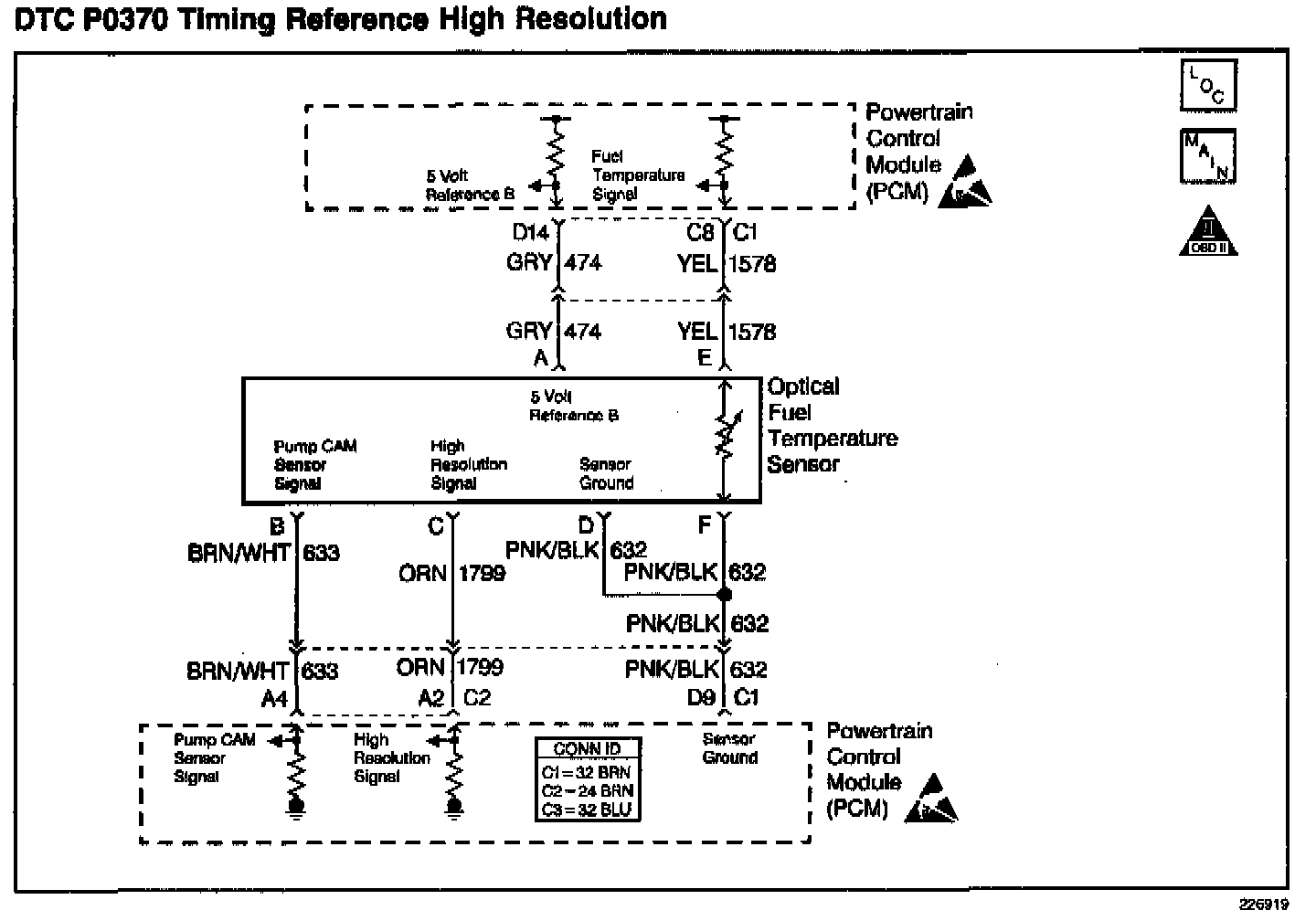

Circuit Description
The optical sensor provides a high resolution signal to the PCM by counting the pulses on the sensor disk which is located in the injection pump. The high resolution is one of the most important inputs by the PCM for the fuel control and the timing. This test monitors the number of high resolution pulses which have been missed (not detected). This test is based on a comparison between the number of pulses that were detected since the last pump cam pulse and the number of the pulses that should have occurred.
Conditions for Running the DTC
The engine is operating.
Conditions for Setting the DTC
A number of High Resolution pulses missing (internal to the PCM) per every eight cam reference pulse.
Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the first drive trip the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, this information is stored in the Freeze Frame and/or Failure Records.
Conditions for Clearing the MIL/DTC
^ The PCM will turn the MIL oft after three consecutive trips without a fault condition.
^ A History DTC will clear after forty consecutive warm-up cycles, it this or any other emission related diagnostic does not report any failures.
^ Use of a scan tool will clear the DTC codes.
Diagnostic Aids
Intermittent DTCs (P0251, P0370 and P1216) may be caused by air entering the fuel system when fuel levels get below 1/8 of a tank while performing hard acceleration or turning maneuvers. Its also possible that a P0251, P0370 and P1216 will set if the vehicle has run out of fuel. Customer driving habits should be checked to determine if the vehicle has been performing in these manners. If the vehicle has been performing in these conditions, bleed fuel system of all air and test drive vehicle.
When the PCM is in backup fuel, fast idle and poor performance problems will exist. If P0251 is also stored, the snap shot mode on the scan tool should be used in order to properly identify a malfunction. DTCs P0335, P1216, and P1217 may set along with this DTC.
The least likely cause of failure is the PCM.
Test Description

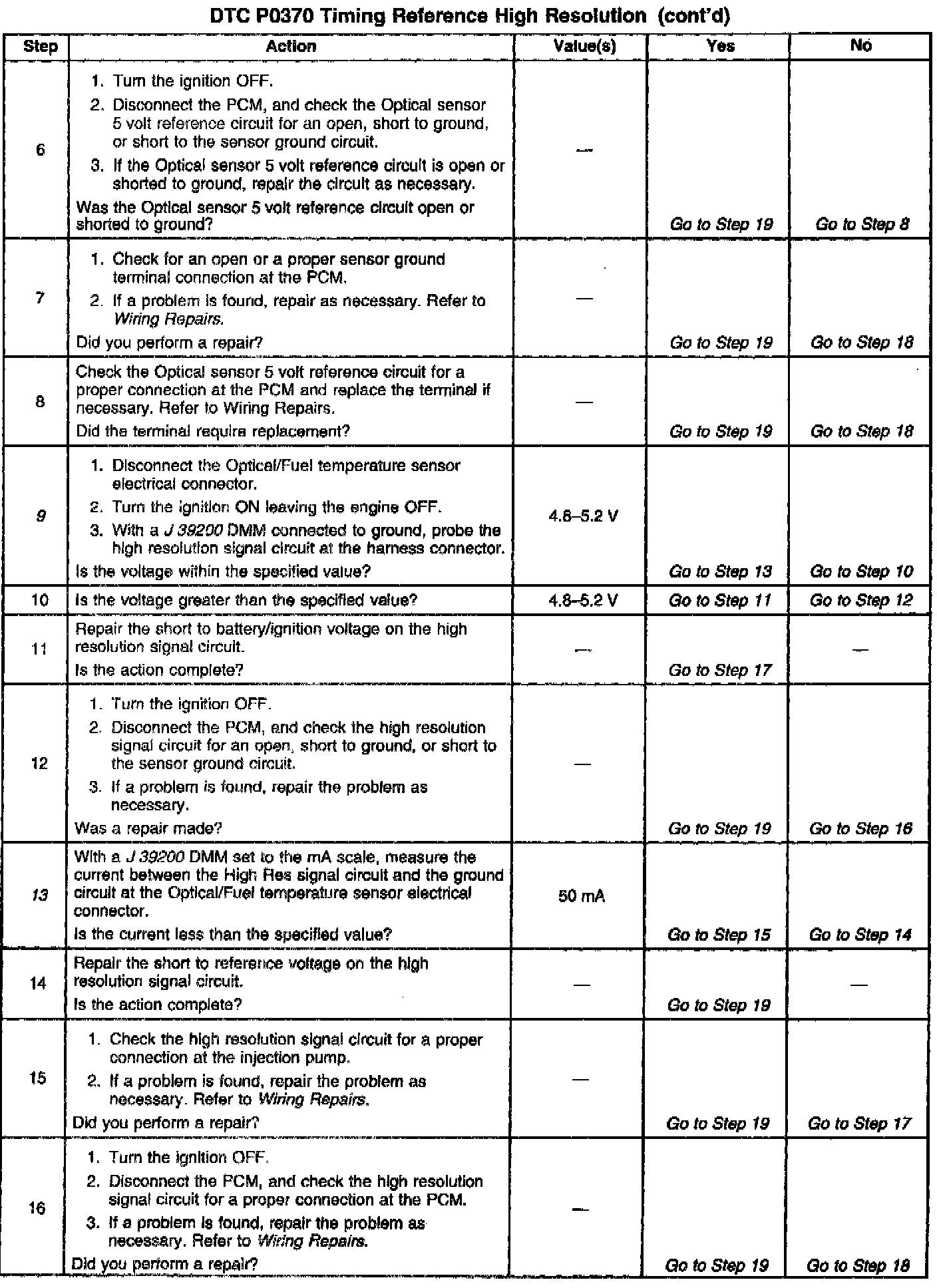

Number(s) below refer to the step number(s) on the Diagnostic Table.
2. This step will determine if the 5 volt reference is present.
3. This step checks the ground circuit.
4. This step determines if the problem is currently active by the scan tool displaying Last Test Failed. Do not proceed any further with this table if the scan tool does not display the term Last Test Failed. Duplicating the conditions in Freeze Frame and Failure Records can help create an active fault.
5. This step determines if a High Res signal is being sent to the PGM. Refer to the RPM vs Hertz table to compare the Hertz readings at different RPMs. Using Freeze Frame and Failure Records will help identify the RPM the problem occurs.
9. The PCM supplies 5 volts on the signal circuit. This step determines if that voltage is present1 not present, or too much voltage is present..
13. This step determines it the signal circuit is shorted to 5V. A normal high res signal circuit will have 3-5mA. Any reading over 5OmA indicates a short to 5V.
