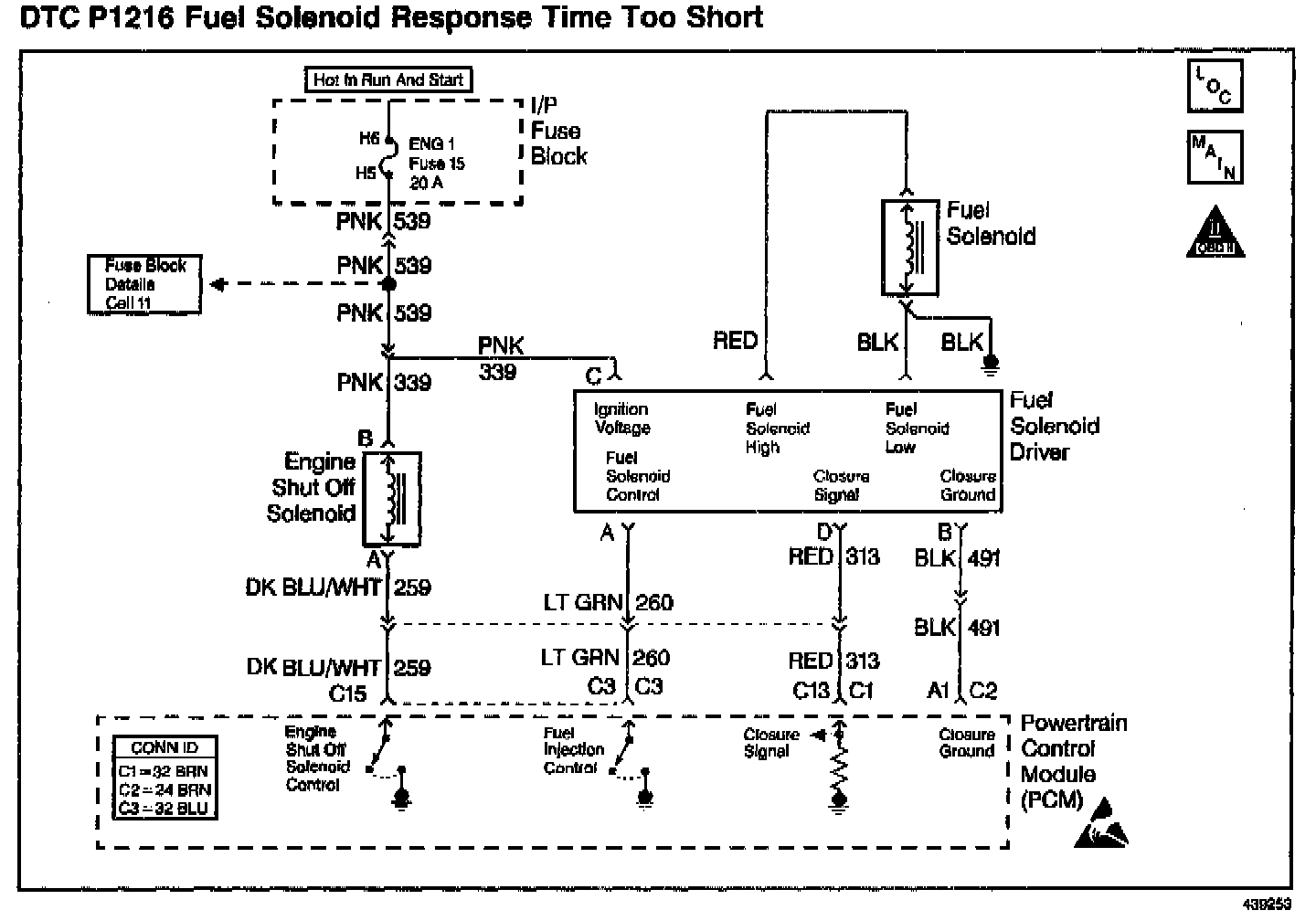

DTC P1216 Fuel Solenoid Response Time Too Short






Circuit Description

The injection pump delivers fuel to individual cylinders by opening and closing a solenoid control fuel valve. The PCM monitors the amount of time it takes for the fuel solenoid valve to physically close after commanded to close. Closure time out of range is seen as a fault. This response time is measured in mull seconds.

Conditions for Running the DTC

^ Battery voltage greater than 11 volts and less than 15 volts.
^ Engine coolant temperature greater than -1°C (34°F).
^ Engine speed greater than 506 RPM.
^ Requested fuel rate is greater than 0.0 mm

Conditions for Setting the DTC

lnj. Pump Closure Time less than .75 ms.

Action Taken When the DTC Sets

^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).
^ The PCM records the operating conditions at the time the diagnostic fails. This information is stored in the Failure Records.

Conditions for Clearing the MIL/DTC

^ A History DTC will clear after forty consecutive warm-up cycles, it this or any other emission related diagnostic does not report any failures.
^ Use of a scan tool

Diagnostic Aids

Intermittent DTCs (P0251, P0370 and P1216) may be caused by air entering the fuel system when fuel levels get below 1/8 of a tank while performing hard acceleration or turning maneuvers. Its also possible that a P0251, P0370 and P1216 will set if the vehicle has run out of fuel. Customer driving habits should be checked to determine if the vehicle has been performing in these manners. If the vehicle has been performing in these conditions, bleed fuel system of all air and test drive vehicle.

If DTC P1216 is set with any other DTCs, diagnose them first. If the vehicle is running close to the DTC setting closure time, the vehicle should be checked during cold start ups and during hot conditions.

Test Description

Number(s) below refer to the step number(s) on the Diagnostic Table

2. This step will determine if the ground circuit is open which causes the vehicle not to start.

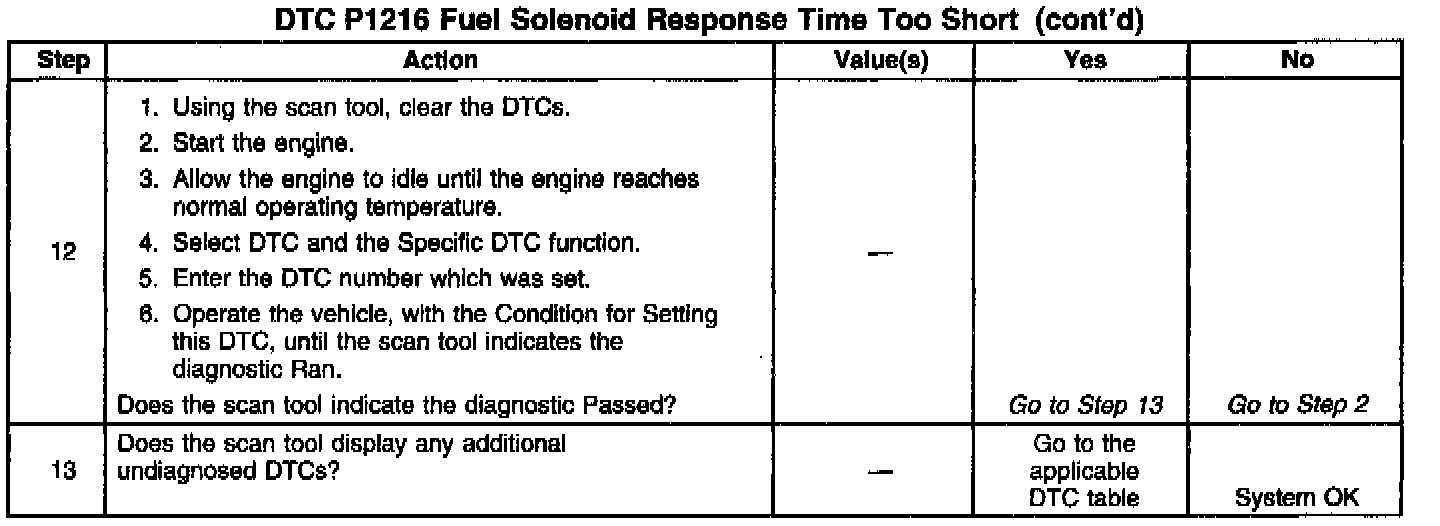

3. This step will determine if the signal circuit is open or an injection pump (fuel solenoid) is at fault.
