Carburetor: Description and Operation

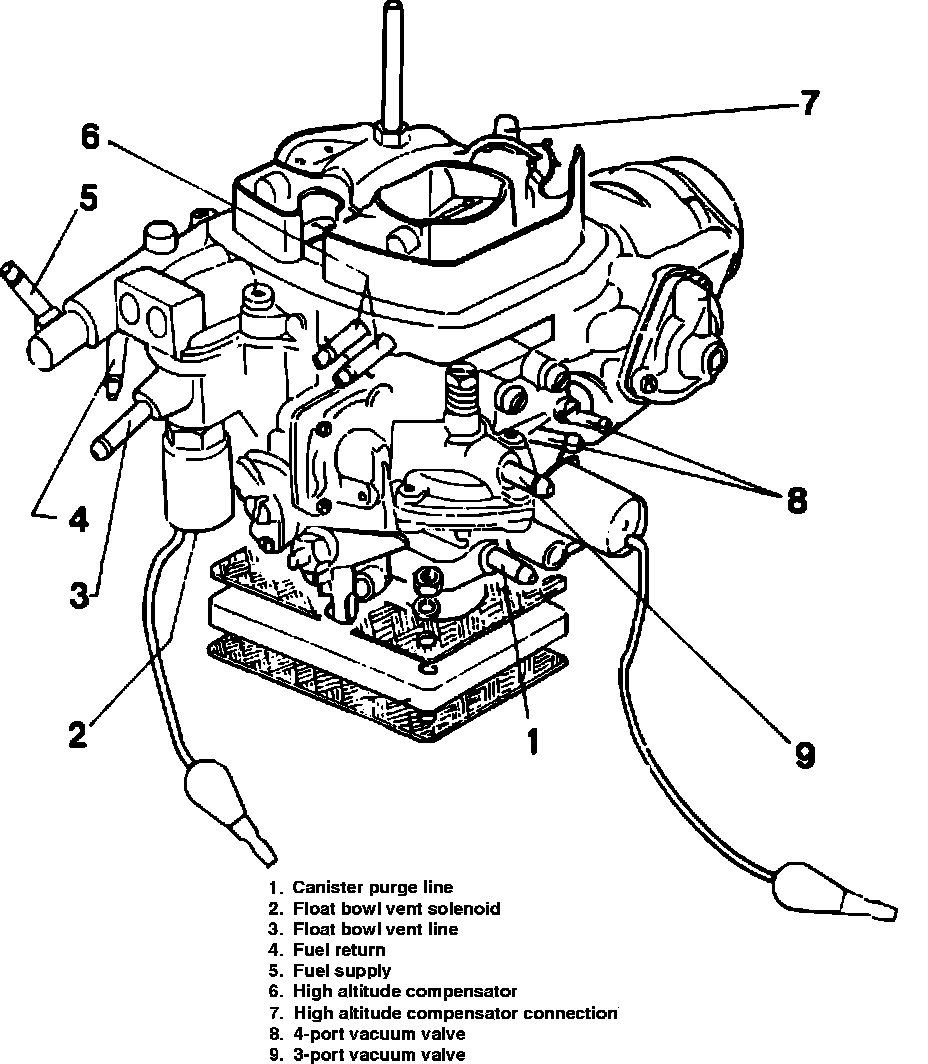

Fig. 1 Carter-Weber Model 740 2 Barrel Carburetor:






The Carter-Weber Model 740 carburetor, Fig. 1, is a two barrel type carburetor and consists of five basic systems: choke system, idle system, main metering system, acceleration system and power enrichment system. A high altitude compensator is also incorporated on this carburetor.
