Headlamp Washer Fluid Reservoir, Hose and Nozzle Overview

Headlamp Washer Fluid Reservoir, Hose and Nozzle Overview

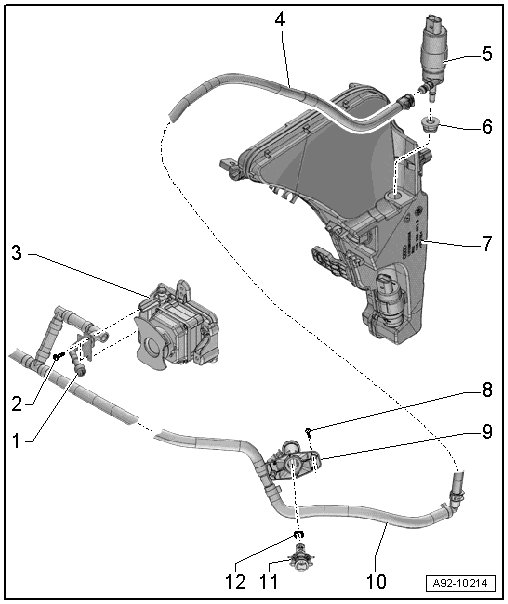

1 Spray Nozzle For The Night Vision System Camera (R212)

• Removing and installing, refer to => [ Night Vision Camera (R212) Spray Nozzle ] Night Vision Camera (R212) Spray Nozzle.

2 Screw

• 2.5 Nm

• Quantity: 2

3 Mount

• For the Night vision system camera (R212).

4 Washer Fluid Hose

• To the spray nozzles.

5 Headlamp Washer Pump (V11)

• Removing and installing, refer to => [ Headlamp Washer Pump (V11) ] Service and Repair.

6 Sealing Grommet

• For the headlamp washer pump (V11).

7 Washer Fluid Reservoir

8 Screw

• 2.5 Nm

• Quantity: 2

9 Mount

• For nozzle

• Removing and installing, refer to => [ Headlamp Washer System Spray Nozzle Mount ] Headlamp Washer System Spray Nozzle Mount.

10 Washer Fluid Hose

• For the spray nozzle and infrared camera.

11 Spray Nozzle

• Removing and installing, refer to => [ Headlamp Washer System Spray Nozzle ] Headlamp Washer System Spray Nozzle.

12 O-Ring

• Replace
