Removing and Installing (Replacing) Complete Bearing Block for Foot Pedal

35 11 000 - Removing and installing (replacing) complete bearing block for foot pedal





Necessary preliminary tasks:
- Remove brake pedal Removing and Installing/Replacing Brake Pedal
- Remove clutch pedal Removing and Installing/Replacing Clutch Pedal
- Remove clutch master cylinder from bearing block

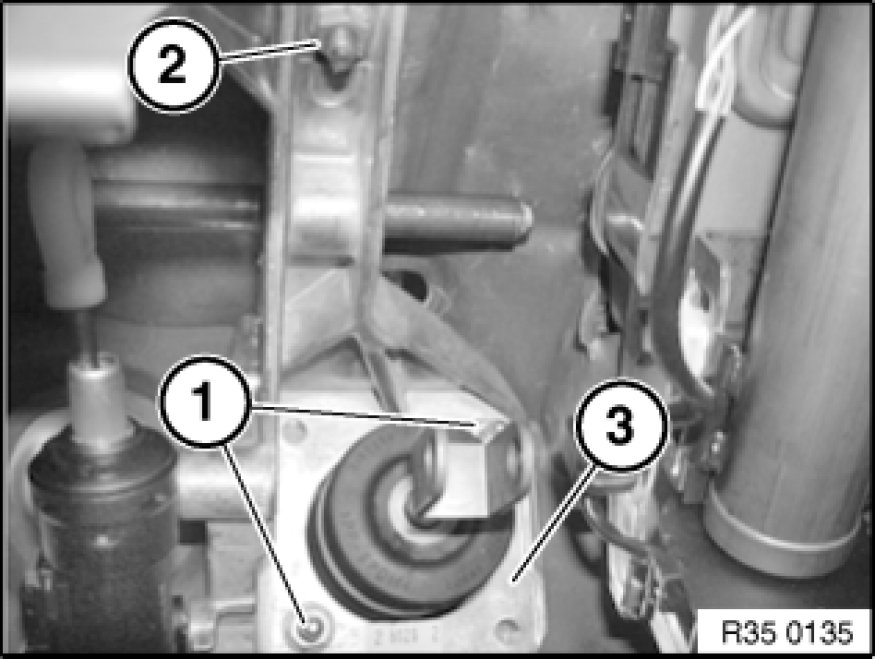

Unscrew nuts (1).
Release nut (2) and remove bearing block (3).

Installation:
Tighten nuts (1) in front of nut (2).
Tightening torque 35 11 1AZ 35 11 Pedal Assembly Console.
