Windshield Washer Reservoir: Service and Repair

Windshield Washer Solvent Container and Pump Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the front right wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
3. Remove the front wheel well splash shield. Refer to Wheelhouse Splash Shield Replacement Service and Repair in Body Front End.
4. Disconnect the washer hose from the washer pump.
5. Disconnect the electrical connectors.

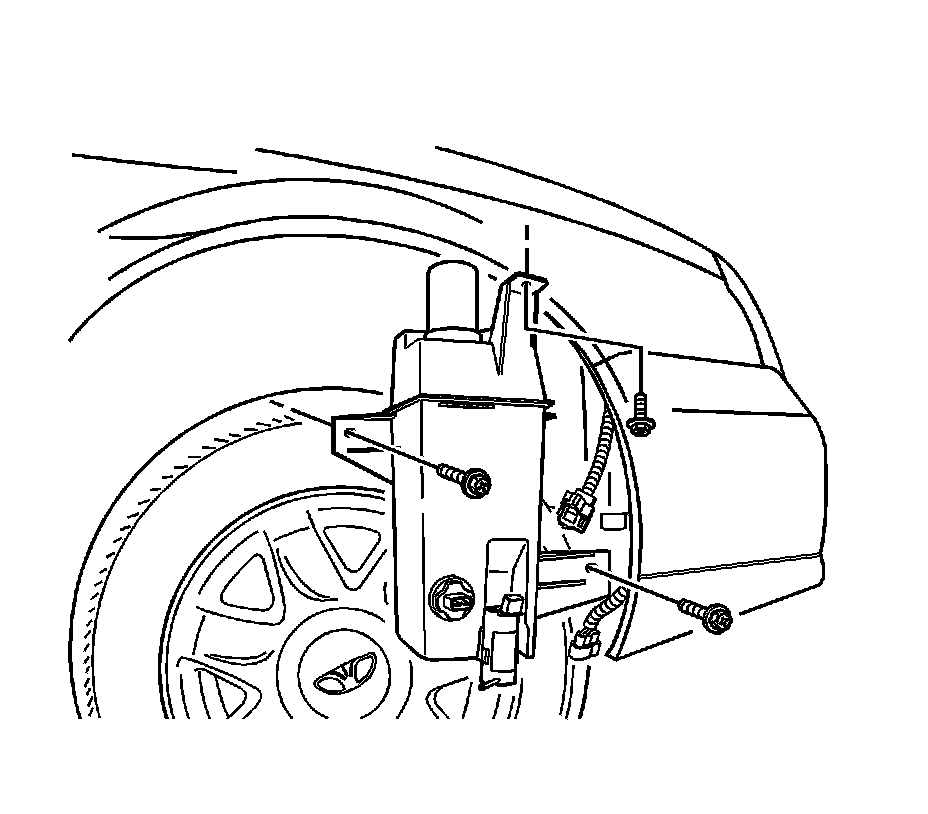

6. Remove the bolts and the reservoir.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the reservoir with the bolts.

Tighten the washer fluid reservoir bolts to 9 Nm (80 lb in).

2. Connect the electrical connector.
3. Connect the washer hose to the washer pump.
4. Install the front wheel well splash shield. Refer to Wheelhouse Splash Shield Replacement Service and Repair in Body Front End.
5. Install the front right wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
6. Connect the negative battery cable.
