Housing Assembly HVAC: Service and Repair

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

2. Remove the audio unit. Refer to Radio. Service and Repair

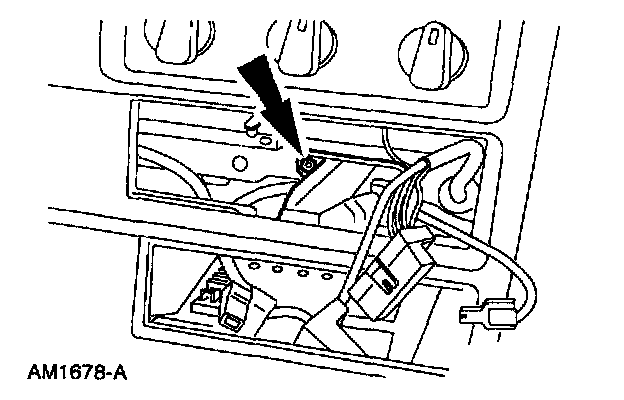

3. If equipped, remove the CD player.

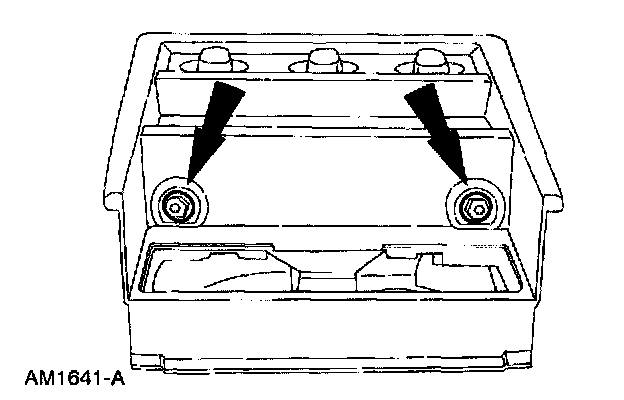

4. Remove the instrument panel center finish panel screws.

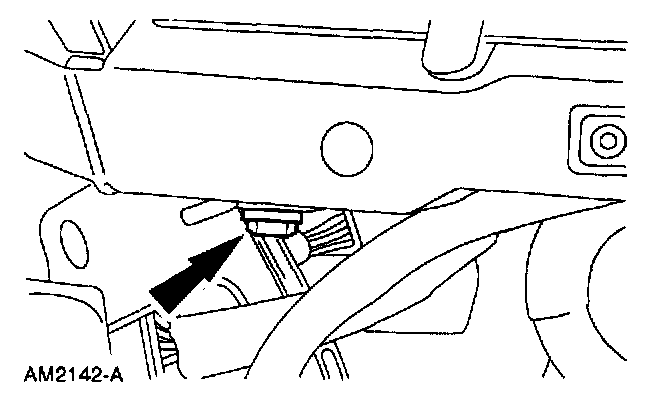

5. Remove the instrument panel center finish panel screw.

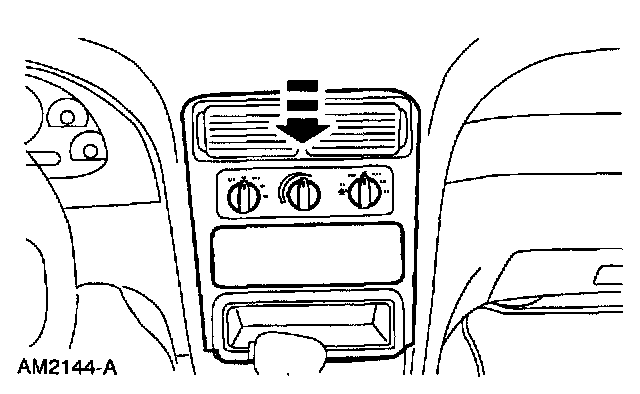

6. Unsnap and remove the instrument panel center finish panel.

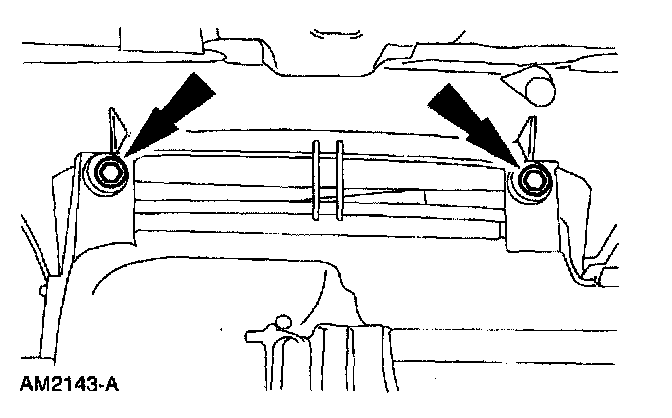

7. Remove the screws and remove the defroster duct.







8. Remove the screw.







9. Remove the screws and remove the plenum chamber.

INSTALLATION
1. To install, reverse the removal procedure.
