Windows: Service and Repair
Glass Replacement Process
NOTE:
- This is general description of the glass replacement process using the windshield as an example. For the location of clips, rubber dams, and other details, go to the part of this data that covers the specific glass you are replacing:
- Windshield Service and Repair
- Rear window Service and Repair
- Put on gloves to protect your hands.
- When replacing a broken windshield, a commercially available windshield cutter can be efficiently used for cutting the adhesive. For details, follow the instructions of the tool manufacturer.
- Wear eye protection while cutting the glass adhesive with a piano wire.
- Cover interior surfaces to avoid damaging them.
1. Remove related parts as necessary (see the part of this data that covers the specific glass you are replacing).
2. Disconnect any connectors from the glass terminals.
3. Remove the molding (A) from the edge of the glass (B). If necessary, cut the molding with a utility knife.
4. If the old glass will be reinstalled, make alignment marks across the glass and body with a grease pencil at four points.
5. Apply protective tape along the edge of the body and related parts.
6. Make a hole through the adhesive with an awl from inside the vehicle at a corner of the glass.
7. Push a piece of piano wire through the hole, and wrap each end around a piece of wood.

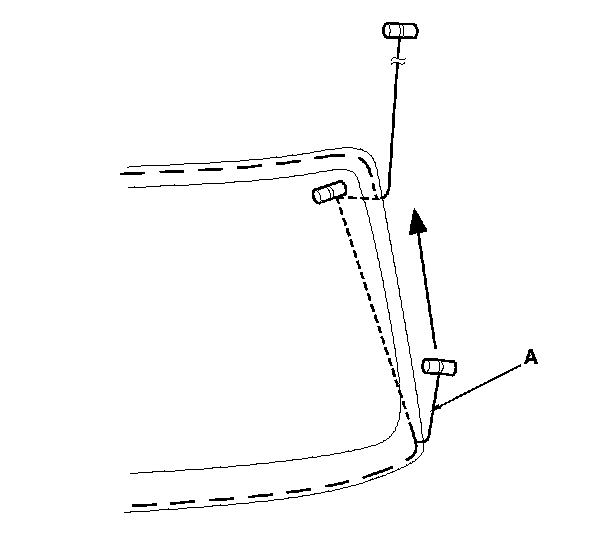

8. With a helper on the outside, pull the piano wire (A) back and forth in a sawing motion. Hold the piano wire as close to the windshield as possible to prevent damage to the body and dashboard. Carefully cut through the rubber dam and adhesive around the entire windshield.
9. Carefully remove the glass.
10. Scrape smooth the old adhesive, using a putty knife or similar tool, until there is a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire glass opening flange:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
- Remove any remaining fasteners from the body.
11. Clean the body bonding surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the clean surface.
12. If the old glass will be reinstalled, use a putty knife to scrape off all of the old adhesive and any remaining parts from the glass. Clean the bonding surfaces on the inside face of the glass with isopropyl alcohol. Make sure the bonding surface is kept free of water, oil and grease.

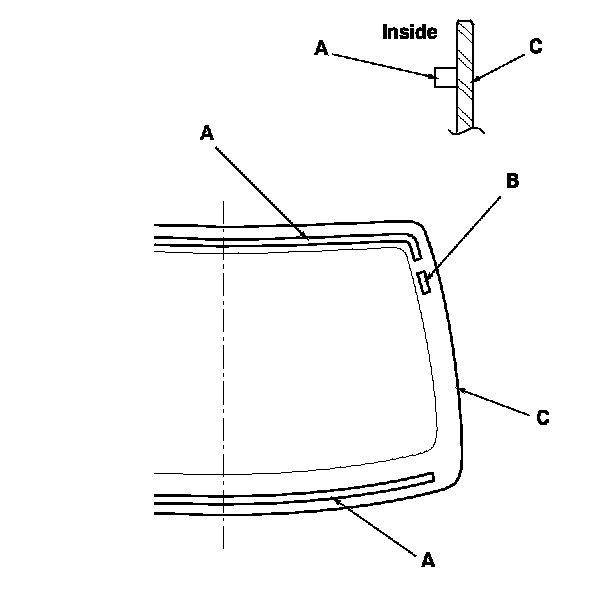

13. Attach rubber dams (A), fasteners (B), and other parts to the inside face of the glass (C). Be careful not to touch the glass where adhesive will be applied.
14. Attach the molding (A) with adhesive tape (B) to the edge of the glass (C). Be careful not to touch the glass where adhesive will be applied.

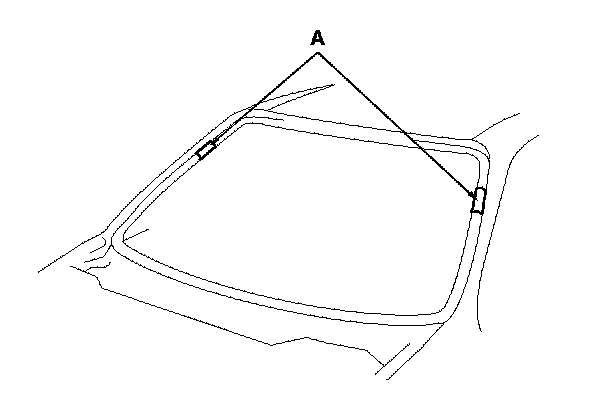

15. Install the fasteners (A) on the body.
16. If new glass will be installed, set the glass (A) in the opening, and center it. Make alignment marks (B) across the glass and body with a grease pencil at the four points shown. Be careful not to touch the glass where adhesive will be applied.
17. Remove the glass.
18. Apply a light coat of glass primer with a sponge applicator around the edge of the glass (A), then lightly wipe it off with gauze or cheesecloth:
- Apply glass primer to the molding.
- Do not apply body primer to the glass, and be careful not to mix up the body and the glass primer sponge applicators.
- Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the glass properly, causing a leak after the glass is installed.
- Keep water, dust, and abrasive materials away from the primed surfaces.
19. Carefully apply a light coat of body primer with a sponge applicator to any exposed paint around the flange where new adhesive will be applied. Let the primer dry for at least 10 minutes:
- Do not apply body primer to any remaining original adhesive on the flange.
- Be careful not to mix up the body and the glass primer sponge applicators.
- Never touch the primed surface with your hands.

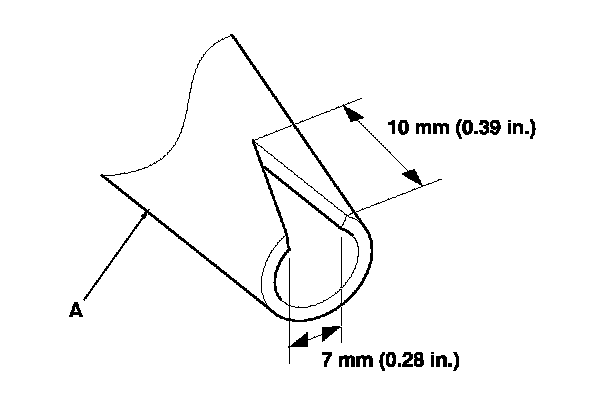

20. Cut a "V" in the end of the nozzle (A) on the adhesive cartridge as shown.

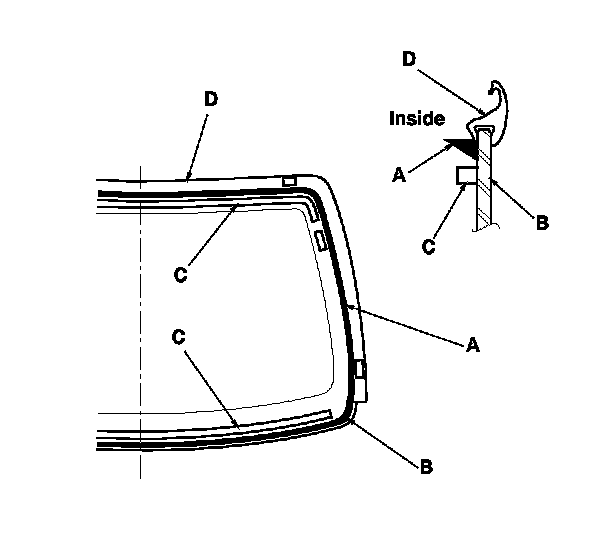

21. Put the cartridge in a caulking gun, and run a continuous bead of adhesive (A) around the edge of the glass (B) between the rubber dams (C) and molding (D) as shown. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.
22. Use suction cups to hold the glass over the opening, align it with the alignment marks made in step 4 or step 16, and set it down on the adhesive. Lightly push on the glass until its edges are fully seated on the adhesive all the way around.
NOTE: Do not open or close any of the doors for about an hour until the adhesive is dry.
23. Scrape or wipe off any excess adhesive with a putty knife or towel. To remove adhesive from a painted surface or the glass, wipe with a soft shop towel dampened with isopropyl alcohol.
24. After the adhesive has dried, spray water over the windshield and check for leaks. Mark the leaking areas, let the windshield dry, then seal with sealant. Let the vehicle stand for at least 4 hours after windshield installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.
25. Reinstall all remaining removed parts. Install the rearview mirror after the adhesive has dried thoroughly.
NOTE: Advise the customer not to do the following things for 2 to 3 days:
- Slam the doors with all the windows rolled up.
- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
