Initial Inspection and Diagnostic Overview

A/T Road Test

1. Apply the parking brake, and block both rear wheels.

2. Warm up the engine to normal operating temperature (the radiator fan comes on).

3. Shift to the D while pressing the brake pedal. Press the accelerator pedal, and release it suddenly; The engine should not stall.

4. Repeat step 2 in all shift lever positions.

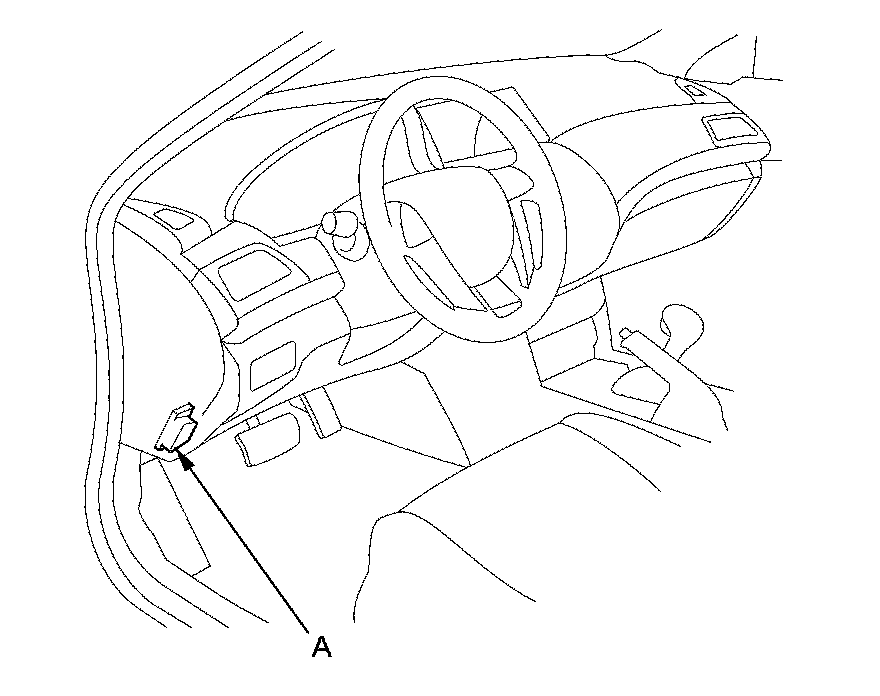

5. Connect the HDS to the DLC (A) located under the driver's side of the dashboard, and go to the A/T Date List.





6. Turn the ignition switch to ON (II).

7. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting Testing and Inspection.

8. Prepare the HDS to take a HIGH SPEED SNAPSHOT (refer to the HDS user's guide for more details if needed):

- Select High Speed icon.
- Select these parameters:
- Vehicle Speed
- Output Shaft (Countershaft) Speed (rpm)
- Input Shaft (Mainshaft) Speed (rpm)
- Engine Speed
- TP Sensor
- APP Sensor A (V)
- ETR
- Battery Voltage
- Shift Control
- Brake Switch
- Set the Trigger Type to Parameter.
- Adjust the Parameter setting to APP Sensor A above 1.1 V.
- Set the recording time to 60 seconds.
- Set the trigger point to -30 seconds.

9. Find a suitable level road. When you are ready to do the test, press OK with the HDS.

10. Monitor the HDS, and accelerate quickly until the APP Sensor A reads 1.2 V. Maintain a steady throttle until the transmission shifts to 5th gear, then slow the vehicle and come to a stop.

11. Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step 10.

12. Adjust the parameter setting to 2.4 V. Test-drive the vehicle again. While monitoring the HDS, accelerate quickly until the APP Sensor A reads 2.5 V. Maintain a steady throttle until the transmission shifts to 5th gear (or reasonable speed), then slow the vehicle and come to a stop.

13. Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step 12.

14. Accelerate quickly until the accelerator pedal is to the floor. Maintain a steady pedal until the transmission shifts to 4th gear, then slow to a stop, and save the snapshot.

15. Review each snapshot individually, and compare the Shift Command, the APP Sensor A voltage, and the Vehicle Speed to following the table:

Upshift: D Position





Downshift: D Position





16. Drive the vehicle in 4th or 5th gear in D, then shift to 2. The vehicle should immediately begin to slow down from engine braking.

17. Shift to 1, accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage. Also check that upshifts do not occur.

18. Shift to 2, accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage. Also check that upshifts and downshifts do not occur.

19. Shift to R, accelerate from a stop at full throttle momentarily, and check for abnormal noise and clutch slippage.

20. Park the vehicle on a slope (about 16 degrees), apply the brake, and shift into P. Release the brake; the vehicle should not move.

NOTE: Always use the brake to hold the vehicle, when stopped on an incline in gear. Depending on the grade of the incline, the vehicle could roll if the brake is released.
