Antenna, Radio

AM/FM/XM Antenna Replacement

1. Remove the headliner Service and Repair.

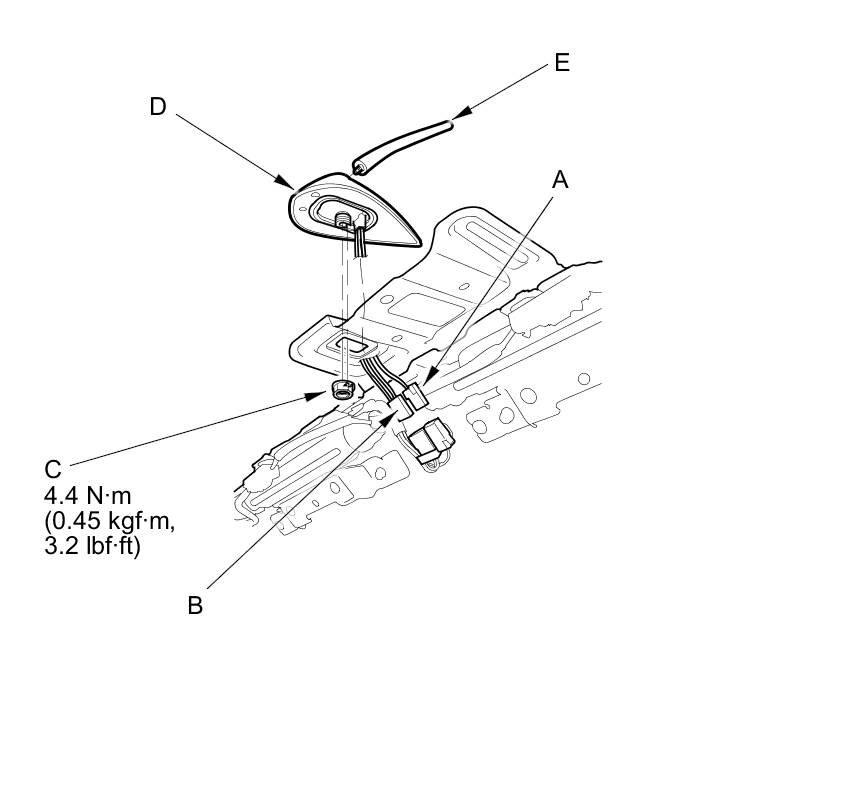

2. Disconnect the AM/FM/XM antenna 2P connector (A) and the 3P connector (B), then remove the nut (C) from the AM/FM/XM antenna (D).





3. Remove the AM/FM/XM antenna and the antenna mast (E).

4. Install the antenna in the reverse order of removal.
