Removal and Installation

TEL ADAPTER UNIT


Removal and Installation


REMOVAL
1. Remove glove box cover. Service and Repair.

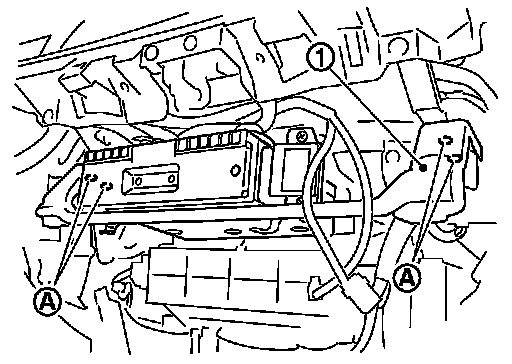

2. Remove screws (A), and remove knee assist protector assembly (1).





3. Remove screws (A), and disconnect connector.
4. Remove TEL adapter unit (1) TEL antenna comes off accordingly.

INSTALLATION
Install in the reverse order of removal.
