Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary
Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
The ignition must be switched off.
For additional information, refer to Parcel Shelf Service and Repair

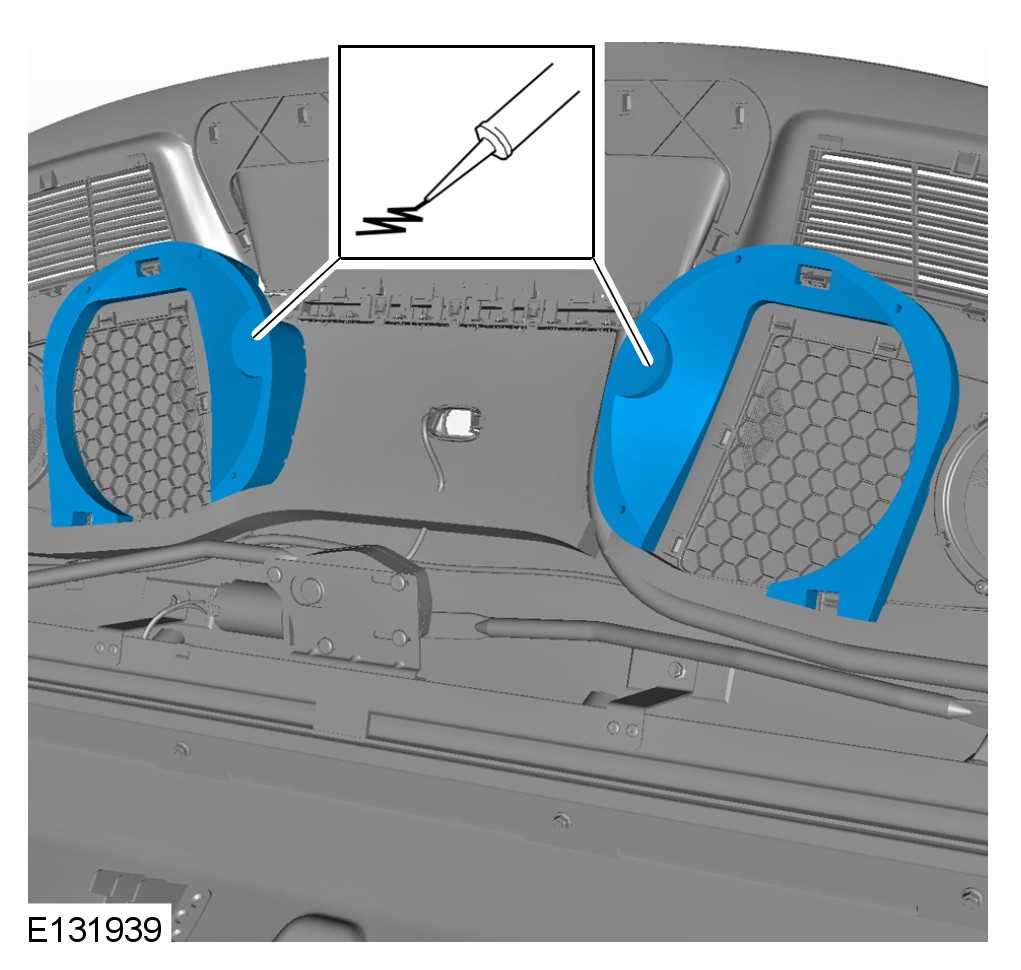

1 If equipped release the adhesive bond for the subwoofer speaker seals.

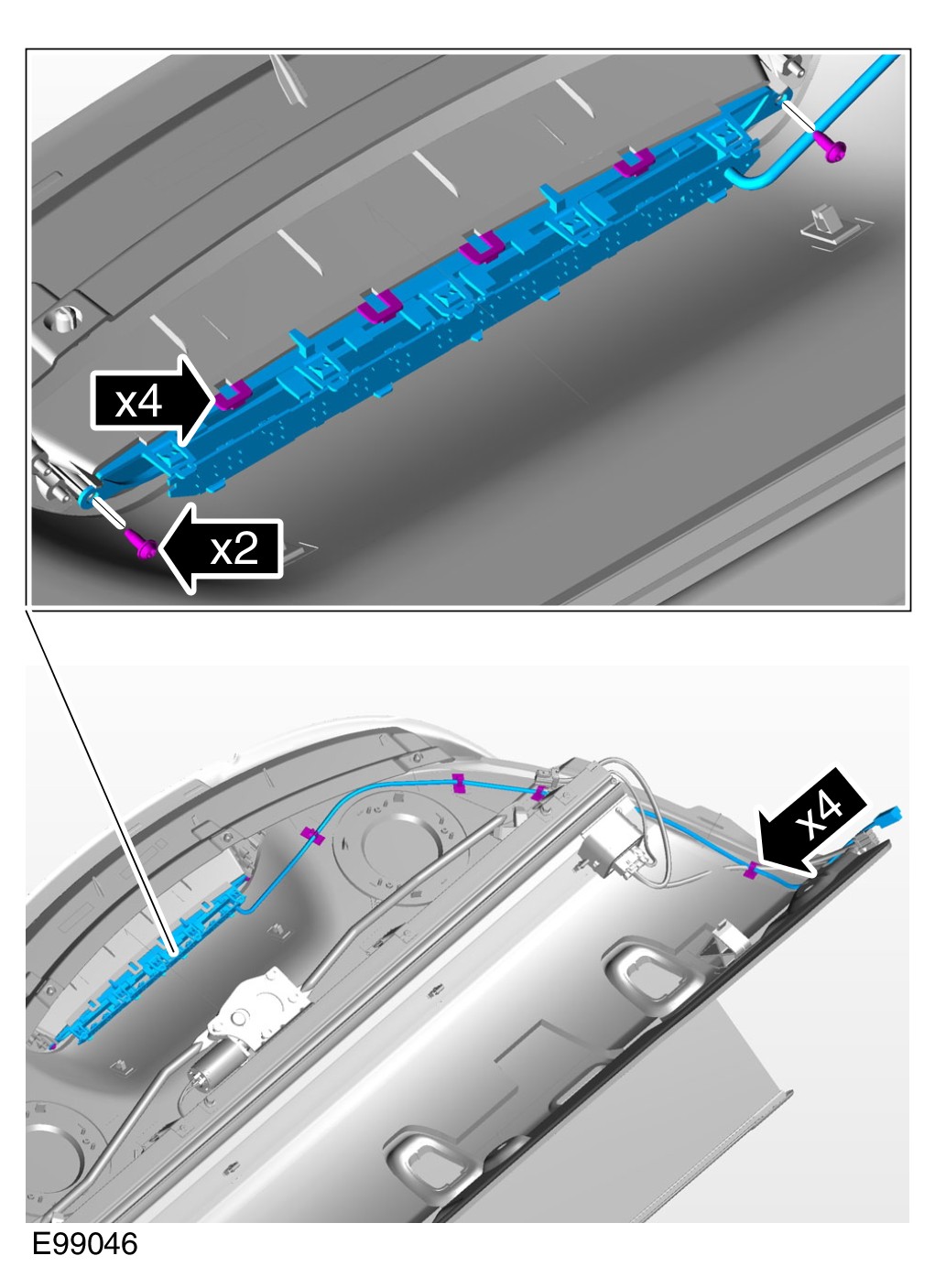

CAUTION: Make sure that these components are installed to the noted removal position.

NOTE:
Note the fitted position of the component/s prior to removal.

NOTE:
Make sure that any trim that is accidentally displaced, is installed to it's noted removal position.

Torque to: 2.5 Nm

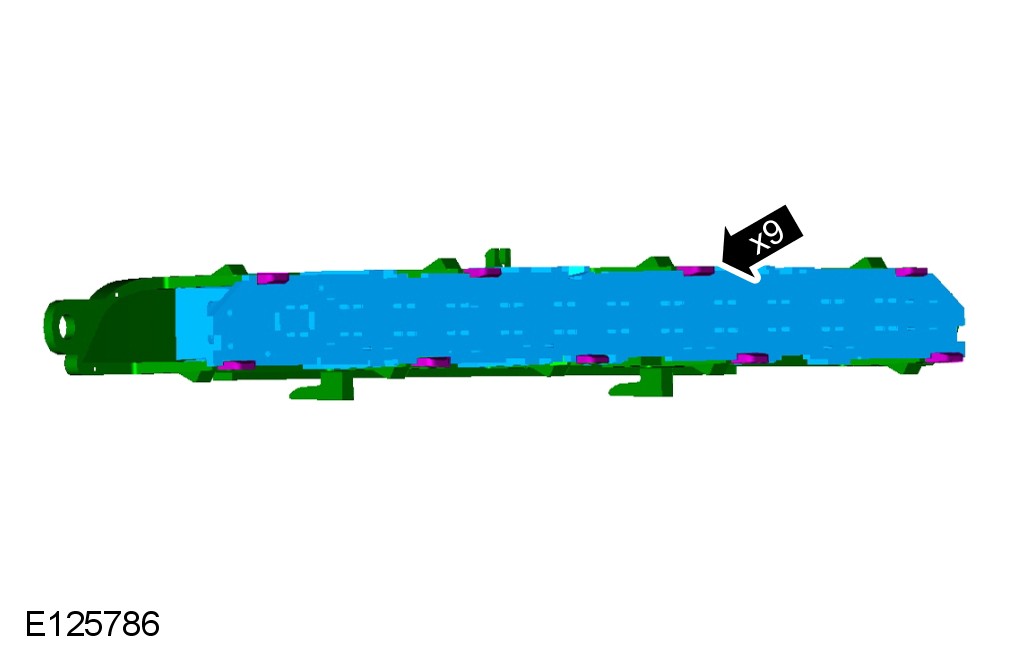

CAUTION: Take extra care not to damage the clips.

NOTE:
Do not disassemble further if the component is removed for access only.

Installation





To install, reverse the removal procedure.

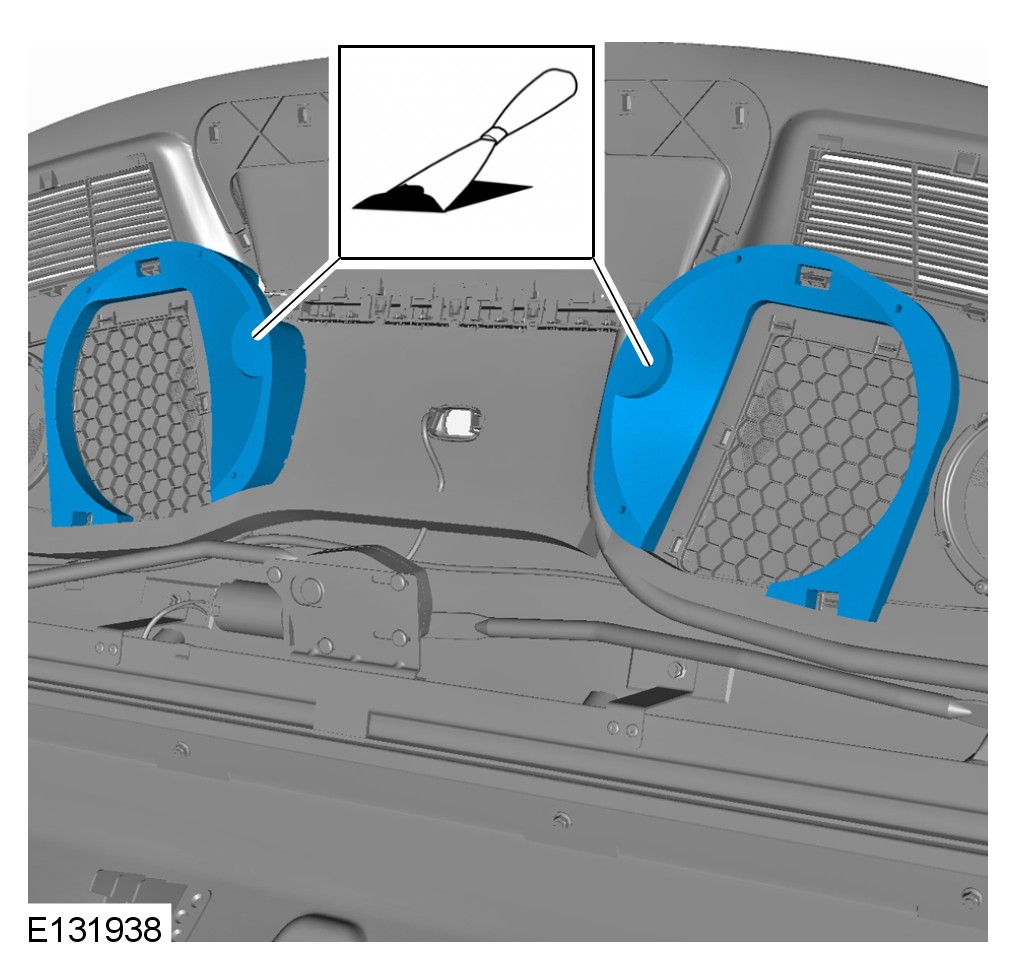

Apply a suitable amount of adhesive to one of the mating faces.
